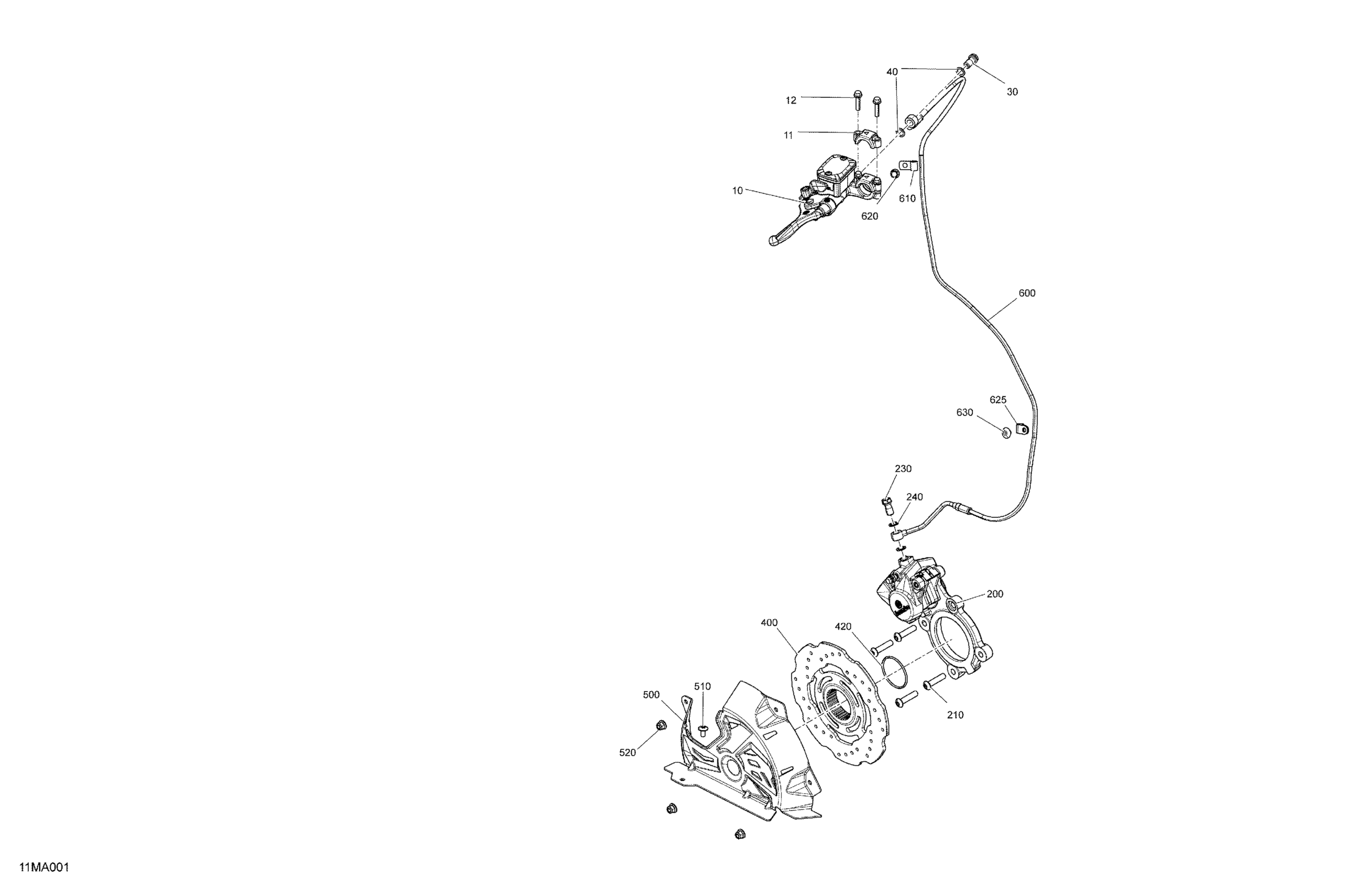

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2021 Mechanic - Brakes Diagram

Description

Price

Master Brake Cylinder | Includes 10 to 10f

507032728

$312.66

Clamps | Includes 75a to 75b

719000049

$22.36

Hex. Flange Screw M6 X 25

250000447

$2.00

Banjo Bolt

507032551

$5.22

Copper Washer

705601628

$4.21

200

Brake Caliper | Includes 200 to 200c

507032720

$323.10

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

230

Banjo Bolt

507032551

$5.22

240

Copper Washer

705601628

$4.21

400

Disc

507032487

$172.36

420

O Ring

293300221

$1.54

500

Black, Disc Protector | Includes 500 to 500a

507032638

$44.00

510

Torx Truss Screw M6 X 12

250000767

$1.91

520

Hex. Flange Elastic Nut M6

233261466

$1.91

600

Brake Hose

507032622

$57.43

610

Open Clamp

414108400

$3.01

620

Hex. Flange Screw M6 X 10

210261040

$1.43

625

Hose Clamp

293650257

$5.00

630

Blind Rivet 3/16

293150231

$0.30
