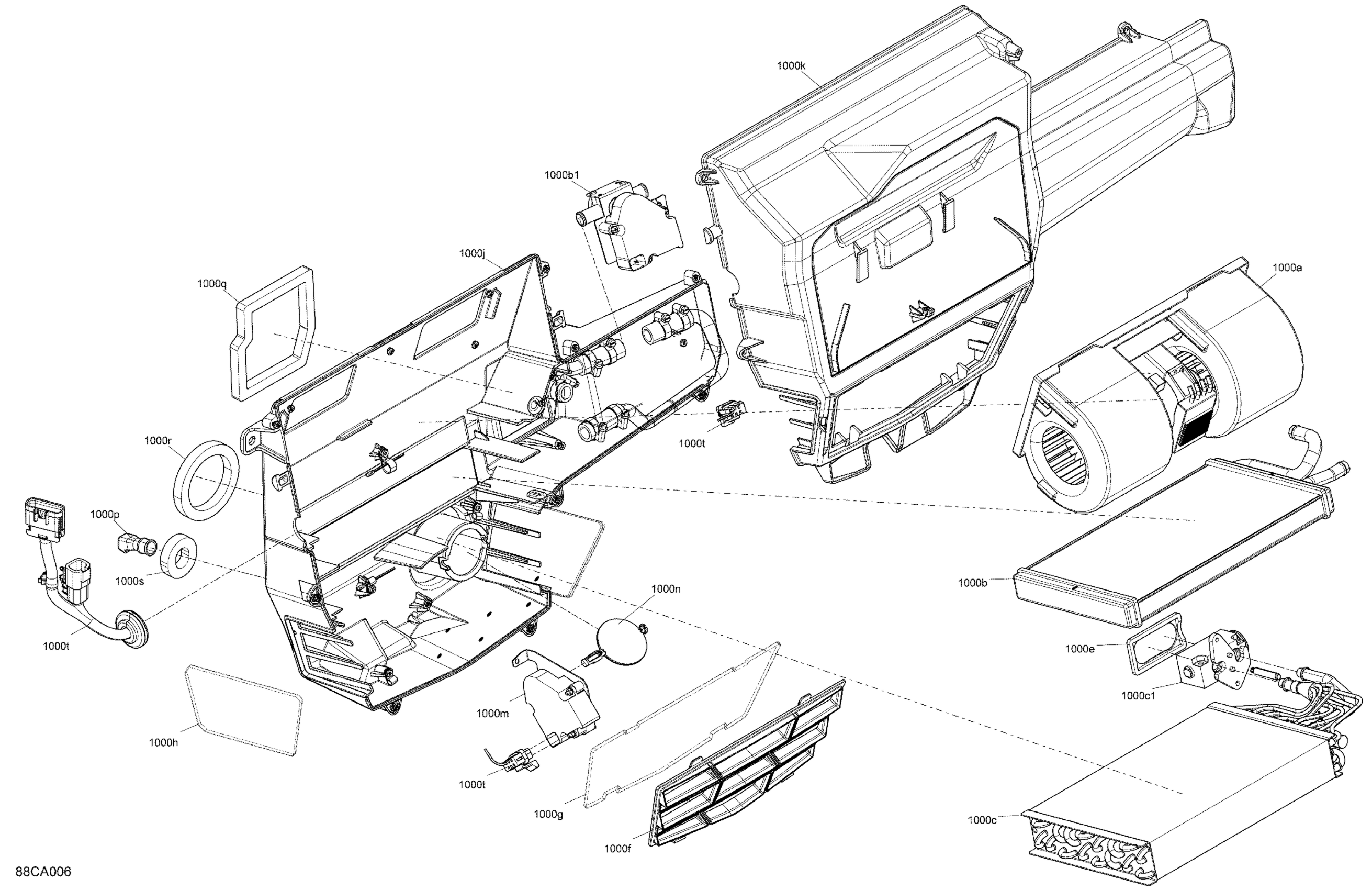

Can-Am Defender PRO HD10 - LTD CAB - 2021 Body - Enclosure Cab - Air Conditioning Unit Diagram

Description

Price

1000a

Fan

520001536

$423.99

1000b

Heater Coil | Includes 1000b to 1000b1

705800648

$667.49

1000b1

Valve Ass'y

705800486

$309.99

1000c

Evaporator | Includes 1000c TO 1000d

705800786

$469.99

1000c1

Expansion Valve

705800458

$76.99

1000e

Gasket

705800519

$20.99

1000f

Grille Unit

705800453

$12.49

1000g

Air Filter

705800440

$48.99

1000h

Air Filter

705800430

$35.99

1000j

Front Cover

705800383

$139.99

1000k

Rear Cover

705800384

$109.99

1000m

Actuator Ass'y

705800490

$309.99

1000n

Door Vent

705800488

$7.59

1000p

Valve_Drain

705800807

$6.39

1000q

Self Adhesive Weather Strip

705800494

$12.99

1000r

Self Adhesive Weather Strip

705800495

$12.99

1000s

Self Adhesive Weather Strip

705800496

$7.69

1000t

Air Conditioning Wiring Harness

705800457

$329.99

1000u

Grommet 5/8'' | Not Shown

520001676

$7.69

1000w

Mounting Clip | Not Shown

715900670

$9.06
