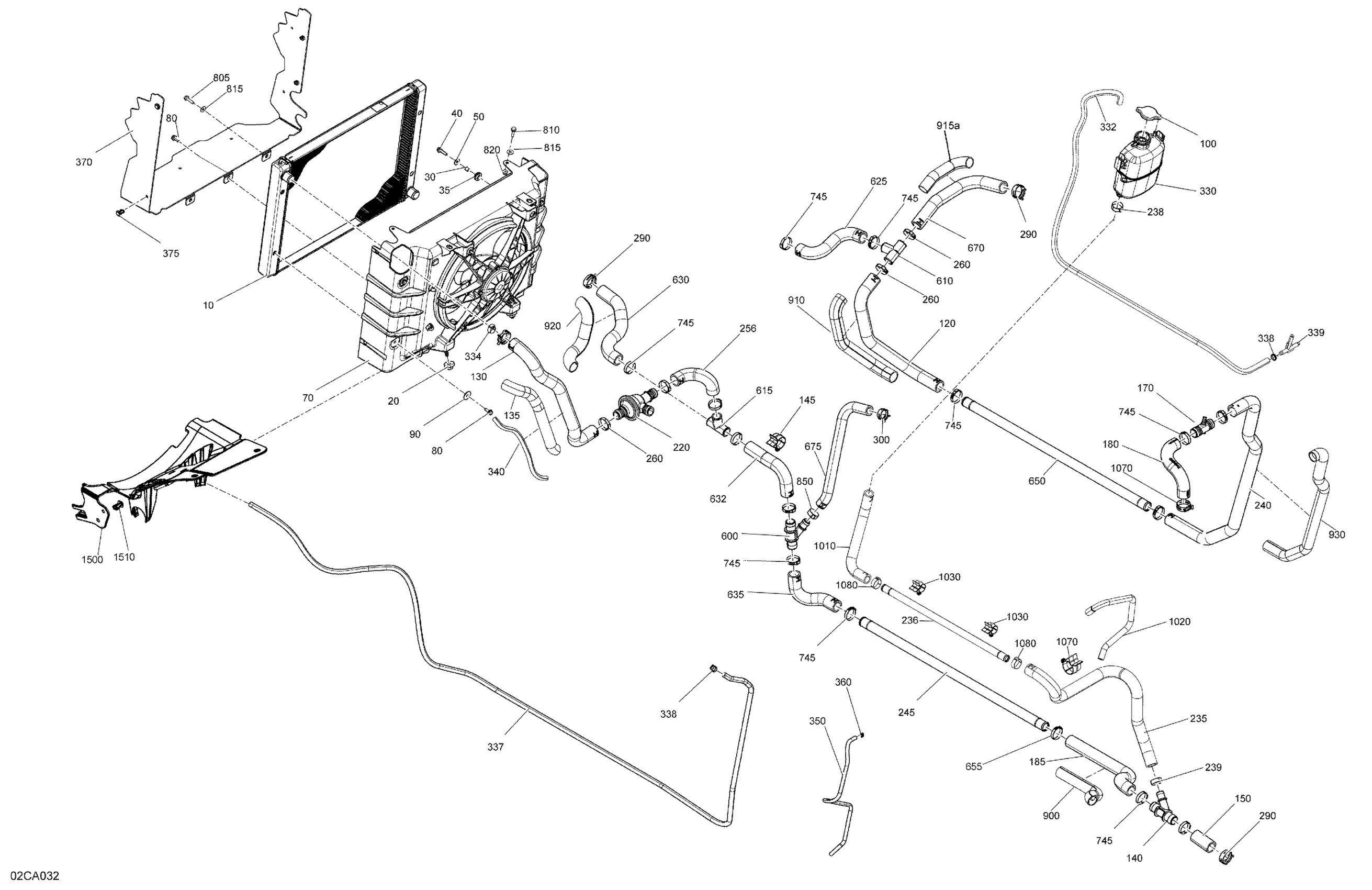

Can-Am Defender PRO HD10 - LTD CAB - 2021 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200829

$272.28

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Cooling Fan Ass'y

709201287

$244.58

80

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

90

Washer M6

250200029

$1.83

100

Radiator Pressure Cap

709200207

$18.82

120

Hose

709200973

$13.83

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y Fitting

509001200

$5.52

145

Retainer

275500590

$7.18

150

Hose

709200299

$6.92

170

T-Fitting

509000510

$11.52

180

Hose Engine In

709201006

$11.06

185

Hose

709200971

$41.51

220

Thermostat Housing

709200986

$92.28

235

Formed Coolant Tank Hose Out

709201034

$36.89

236

Expansion Tank Tube

709200834

$18.43

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Thermostat Inlet Hose

709201035

$36.89

245

Heater Tubing

709200658

$13.98

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$5.84

290

Norma Spring Clamp

293650166

$4.28

300

Norma Spring Clamp

293650109

$4.00

330

Coolant Tank

709201323

$78.43

332

Was 415129508 Bleeder Hose

219704416

$11.83

334

Oetiker Clamp

293650042

$1.40

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

337

Was 415129508 Bleeder Hose

219704416

$11.83

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 10000Mm Long

219704410

$46.12

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.83

370

Front Radiator Deflector

705015970

$46.12

375

Tuflok Plastic Rivet

293150230

$1.21

600

Y Fitting

509001200

$5.52

610

T-Fitting

509000219

$15.35

615

T-Fitting

509000219

$15.35

625

Hose Thermostat In

709201031

$15.35

630

Formed Radiator Hose OUT

709201444

$11.06

632

Formed Radiator Hose OUT

709201437

$11.06

635

Hose

709200972

$13.83

650

Heater Tubing

709200658

$13.98

655

Gear Clamp

509000162

$5.84

670

Hose

709200976

$13.83

675

Hose

709200975

$13.83

745

Gear Clamp

509000162

$5.84

805

Hex. Flange Screw M6 X 25

207662544

$0.53

810

Hex. Flange Screw M6 X 25

207662544

$0.53

815

Flat Washer 6 mm

234062410

$0.64

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

850

Oetiker Gear Clamp

293650165

$4.32

900

Tubing 35 MM 1000MM Long

219704428

$8.57

135

Tubing 35 MM 1000MM Long

219704428

$8.57

910

Tubing 35 MM 1000MM Long

219704428

$8.57

915a

Tubing 35 MM 1000MM Long

219704428

$8.57

920

Tubing 35 MM 1000MM Long

219704428

$8.57

930

Tubing 35 MM 1000MM Long

219704428

$8.57

1010

Hose Coolant Tank Out Formed

709200836

$15.35

1020

Bleeding Hose

709200840

$23.05

1030

Cable Retainer

275500527

$2.75

1050

Hose Retainer

293650218

$8.45

1070

Retainer

275500590

$7.18

1080

Oetiker Gear Clamp

293650165

$4.32

1500

Front Air Deflector

709201036

$99.97

1510

Tuflok Plastic Rivet

293150230

$1.21
