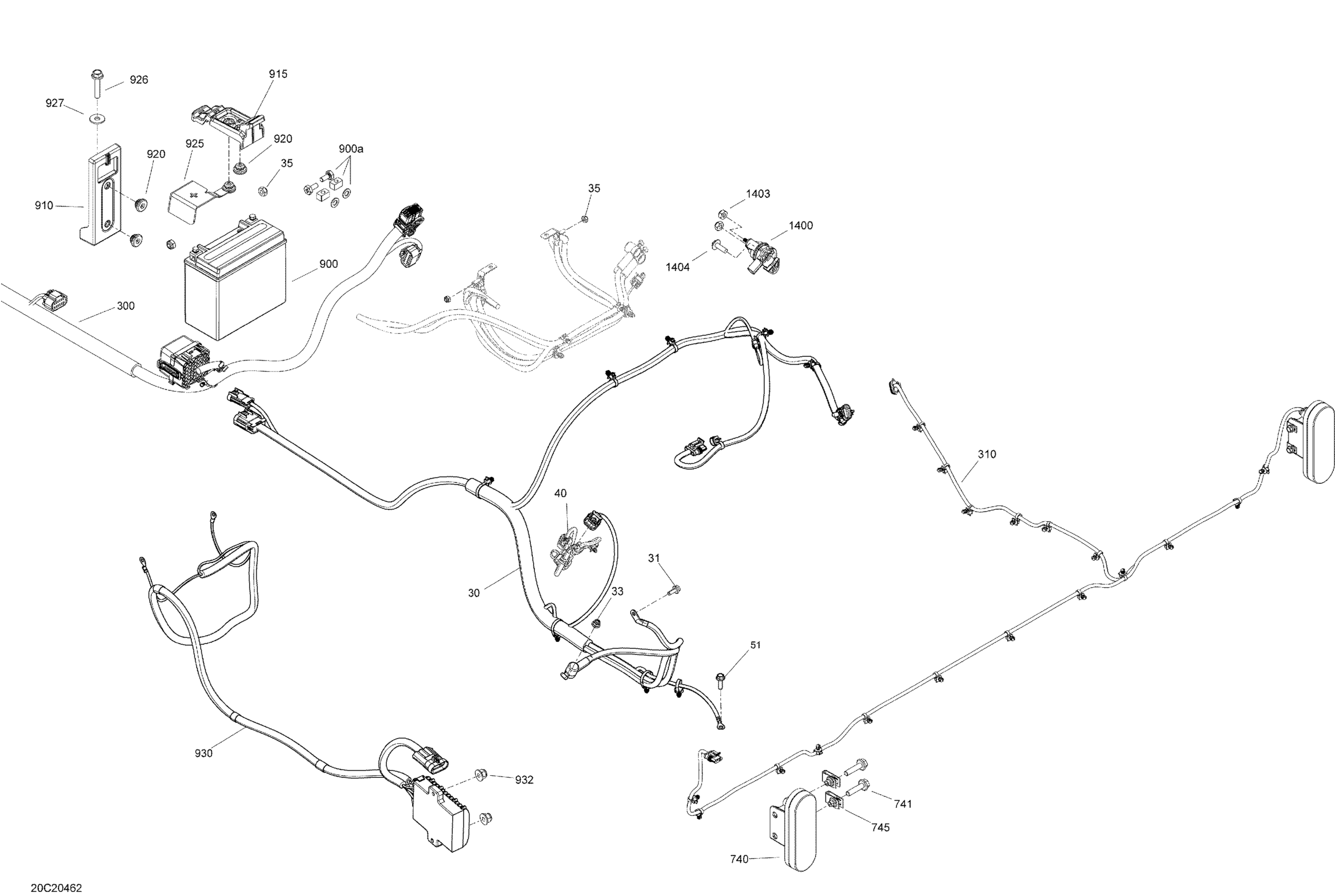

Can-Am Defender MAX HD10 - Limited - 2020 Electric - System - Rear Section Diagram

#

Description
Price

30

Voltage Regulator Wiring Harness

710006901

$152.96

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

33

Elastic Stop Nut M6, Brass

232561200

$4.03

35

Elastic Stop Nut M6, Brass

232561200

$4.03

40

Adaptor

710007305

$26.09

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

300

Main Wiring Harness | Included 300 to 300c

710007149

$1,250.72

310

Taillight Wiring Harness

710006499

$90.27

740

Tail Light

710004497

$103.70

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

745

Panel Nut M6 X 1.0

250100198

$1.99

900

Battery | Includes 900 to 900a

515176151

$199.45

900a

Battery Bolt Kit

515176081

$5.85

910

Fixation Plate

710004788

$9.48

915

Fixation Plate

710004789

$6.72

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710006471

$2.59

926

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

927

Flat Washer 6 mm

234062410

$0.73

930

Voltage Regulator

710006824

$569.99

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1400

Starter Relay

278003012

$40.27

1403

Elastic Stop Nut M6, Brass

232561200

$4.03

1404

Hex. Plastic Screw M4.8 X 16

243141630

$2.00
