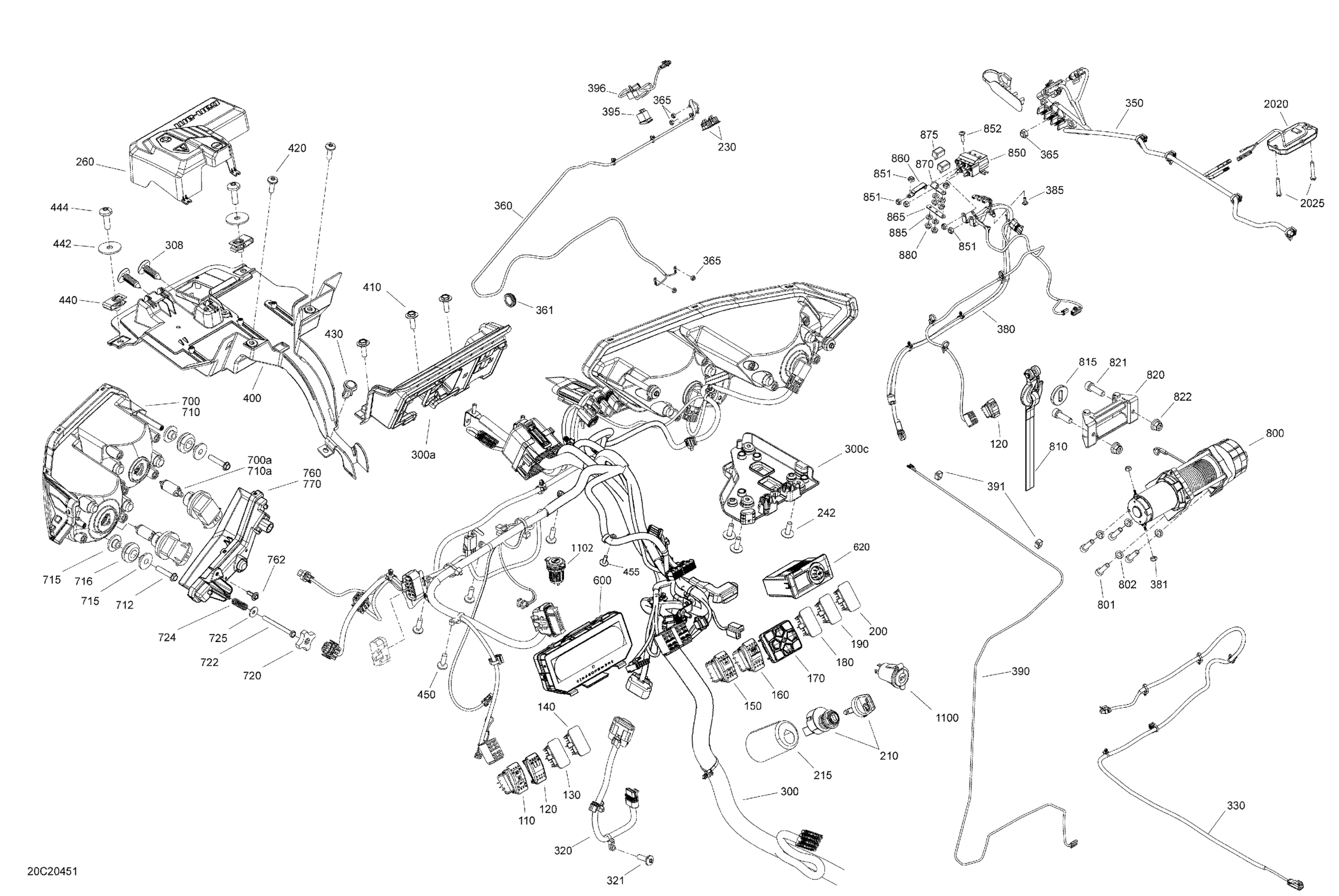

Can-Am Defender MAX HD10 - Limited - 2020 Electric - System - Front Section Diagram

Light Switch

710004492

$44.00

Switch Winch

710002052

$28.18

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Switch 2X4

710005489

$29.82

Differential Lock Switch

710005470

$42.51

Multifonction Switch

710006650

$81.31

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Inter Allumage *Ignition

710007870

$51.46

Key Switch Protector

710005739

$2.69

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Screw PT Type K-50 X 16

250000959

$2.00

Junction Block Cover

710006707

$5.90

Main Wiring Harness | Included 300 to 300c

710007149

$1,250.72

Fusebox Support

710006640

$6.87

Connector Support

710006706

$4.85

Black, Dart

293730006

$0.93

Throttle Pedal Harness

710006837

$211.91

Torx Screw K50 X 16

250000720

$1.60

Safety Belt Wiring Harness

710007042

$32.81

Window/Wiper Harness

710004462

$80.99

Roof Wiring Harness

710007038

$144.99

Boot

710002743

$3.29

Elastic Stop Nut M6, Brass

232561200

$4.03

Winch Wiring Harness | XT_XTP

710006653

$102.21

Elastic Stop Nut M6, Brass

232561200

$4.03

Screw PT Type K-50 X 16

250000959

$2.00

Wiper Harness

710004661

$38.78

Clip

414227300

$1.40

Wiper Switch

710004941

$42.51

Wiper Harness

710004942

$38.78

Wiring Harness Support

710006649

$21.61

Screw PT Type K-50 X 16

250000959

$2.00

Torx Screw K50 X 16

250000720

$1.60

Tuflok Plastic Rivet

293150230

$1.39

Panel Nut M6 X 1.0

250100198

$1.99

Washer M6

250200029

$1.78

Torx Screw M6 X 20

250000712

$2.00

Torx Screw K50 X 16

250000720

$1.60

Torx Screw K50 X 16

250000720

$1.60

Full Size Multifunction Gauge

710006854

$325.34

A/C Control Unit | Includes 620 to 620a

710009400

$601.46

LH Beam | Includes 700 to 700a

710008316

$177.58

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

RH Beam | Includes 710 to 710a

710008317

$177.58

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.25

Handle

572106600

$9.03

Hex. Screw K40 X 45

250000718

$2.00

Spring

517168600

$6.70

Flat Washer 4 mm, Stainless

234042600

$1.06

LH Auxiliary LED Headlight

710006374

$172.36

Screw PT Type K-50 X 16

250000959

$2.00

RH Auxiliary LED Headlight

710006375

$172.36

Electric Winch | Includes 800 to 800a

710006993

$229.99

Socket Head Screw M8 X 30

205083044

$1.06

Lock Washer 8 mm

234181401

$0.87

Winch Hook Kit

705014949

$23.10

Stopper

710007028

$9.88

Fairlead Roller

710007082

$55.19

Socket Screw M10 x 30 | XT

205003044

$3.00

Hex. Flange Elastic Nut M10

233201436

$2.00

Solenoid

710006991

$57.43

Elastic Stop Nut M6, Brass

232561200

$4.03

Torx Screw K50 X 16

250000720

$1.60

Power Bar

710004772

$10.97

Copper Busbar

710006401

$10.97

Power Bar

710004873

$10.97

Circuit Breaker 50 Amp

710007039

$17.88

Hex. Flange Nut M5

250100071

$2.03

Lock Washer Helical M6

234161601

$1.06

12V Power Outlet

710005374

$31.31

USB Outlet

219400510

$43.99

Dome Light

715002455

$94.30

Hex. Flange Screw K40 X 25

241142560

$2.49
