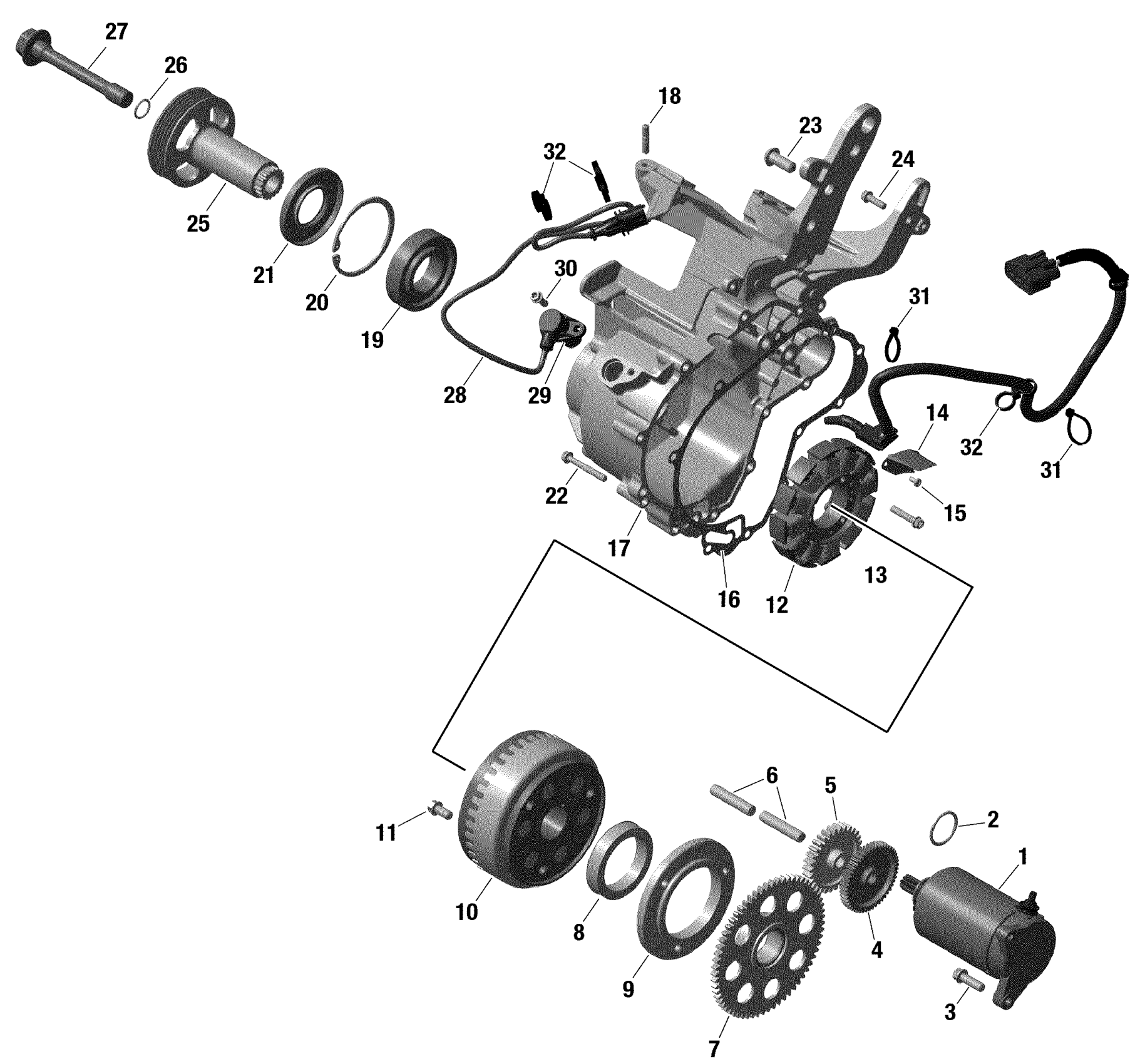

Can-Am Defender MAX HD10 - Limited - 2020 Electric - Magneto And Starter - 1010 TSS Diagram

Electric starter Ass'y

420684566

$252.69

O-Ring

420250140

$8.09

Torx Flange Screw M8 X 25

420440372

$3.88

Double Gear 11/49

420634743

$179.07

Starter Intermediate Gear, 30 Teeth

420634605

$76.84

Location Pin 10 M6x50

420229302

$3.01

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$173.85

Sprag Clutch

420659111

$235.04

Sparg Clutch Housing

420659263

$141.01

Magneto Flywheel 850W

420685706

$758.93

Torx Flange Screw M8 X 16

420440854

$4.15

Stator Ass'y 850W

420686365

$329.99

Torx Flange Screw M6 X 30

420440647

$1.91

Interior Cable Support Ass'y

420251889

$13.28

Phillips Screw M4 X 8

420240196

Unavailable

Gasket

420651203

$34.30

Ignition Cover | Includes no. 17-21

420211297

$424.60

Stud M6 X 14/15

420840491

$14.10

Ball Bearing

420632745

$23.85

Retaining Ring

420845790

$7.09

Oil Seal

420431402

$17.88

Torx Flange Screw M6 X 45

420440324

$0.93

Rounded Head Screw M10 X 25

420641030

$4.07

Torx Flange Screw M6 X 20

420441835

$3.01

Drive Pulley

420980830

$135.04

O-Ring

420631240

$2.00

Collar Screw M16 X 110

420841878

$28.33

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

O-Ring

420431580

$14.10

Torx Flange Screw M6 X 16

420440162

$3.01

Tie Wrap 142X 3.2mm

420866722

$0.16

Double Clamp 305x 4.7MM

420651362

$3.42
