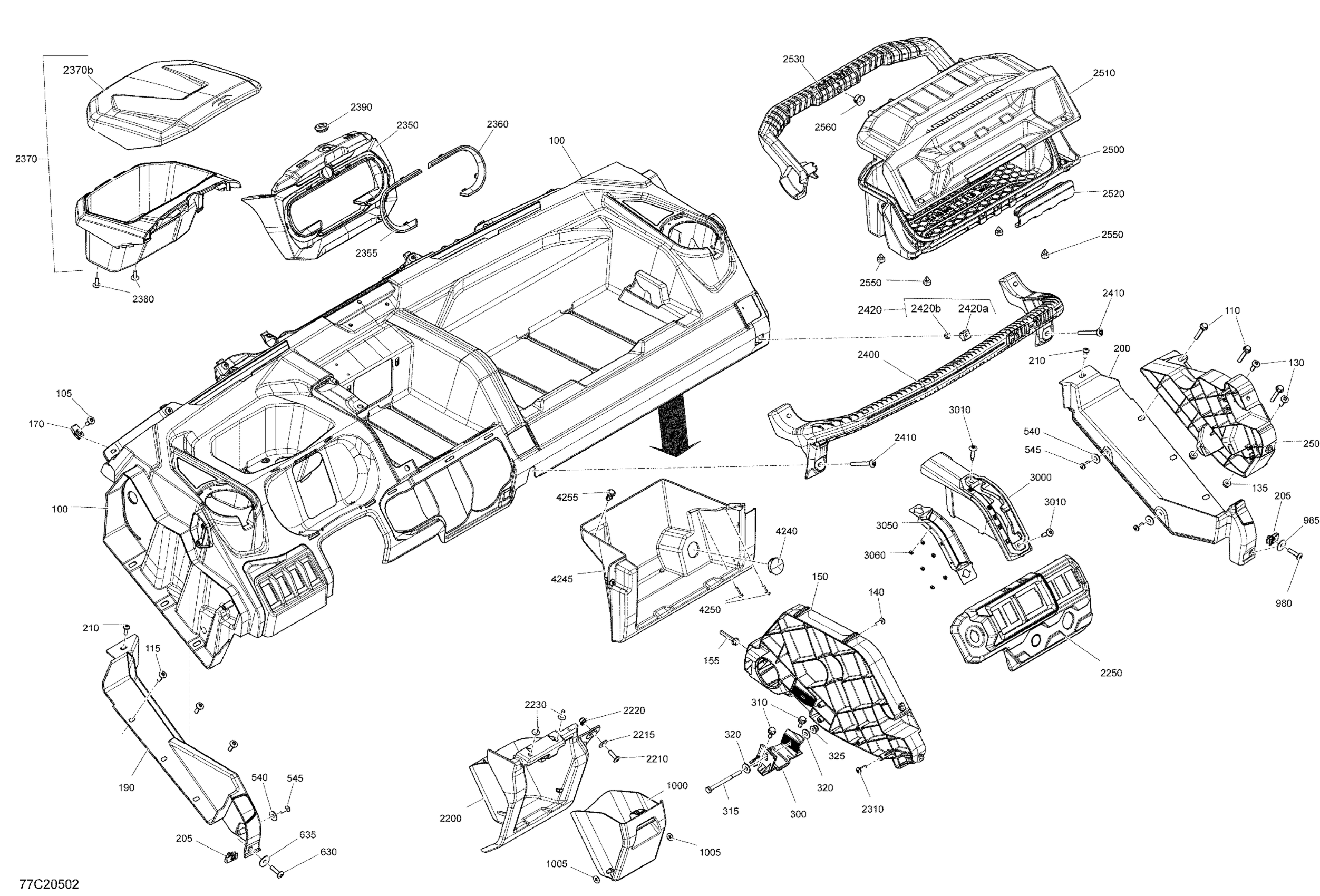

Can-Am Defender MAX HD10 - Limited - 2020 Cab Interior - Dashboard Diagram

#

Description
Price

100

Upper Dashboard Ass'y

715007224

$175.34

105

Torx Truss Screw M6 X 16

250000721

$1.60

110

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.15

115

Torx Screw M6 X 20

250000722

$1.54

130

Torx Screw M6 X 20

250000722

$1.54

135

Hex. Elastic Flange Nut M6

233161464

$0.96

140

Torx Screw K50 X 16

250000720

$1.60

150

Dash Support

707900249

$58.93

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

170

Panel Nut M6 X 1.0

250100198

$1.99

190

LH Upper Deflector

707900738

$49.22

200

RH Upper Deflector

707900739

$49.22

205

Panel Nut M6 X 1.0

250100198

$1.99

210

Torx Screw K50 X 16

250000720

$1.60

250

RH Support

707900367

$34.30

300

Plier

707900940

$5.22

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

315

Hex. Screw M6 X 80

207068044

$3.90

320

Stainless Steel Flat Washer

234062670

$2.00

325

Hex. Flange Elastic Nut M6

233261494

$1.45

540

Stainless Steel Flat Washer

234062670

$2.00

545

Torx Screw K50 X 16

250000720

$1.60

630

Torx Truss Screw M6 X 25

250000807

$2.00

635

Flat Washer M6.6 X 22

250200162

$2.19

980

Torx Truss Screw M6 X 25

250000807

$2.00

985

Flat Washer M6.6 X 22

250200162

$2.19

1000

Drawer

707900252

$18.63

1005

O-Ring

293300194

$1.00

2200

LH Lower Dash | Except Base Package

707900251

Unavailable

2210

Torx Screw M6 X 20

250000722

$1.54

2215

Stainless Steel Flat Washer

234062670

$2.00

2220

Insert Half Hex Body M6 x 1.0

250100199

$2.91

2230

Screw PT Type K-50 X 16

250000959

$2.00

2250

Switch Support | XTP

707900705

$17.13

2310

Torx Screw K50 X 16

250000720

$1.60

2350

Gauge Support | XTP

707900707

$19.94

2355

Deep Black, LH Trim Gauge

705012349

$4.99

2360

Deep Black, RH Trim Gauge

705012351

$4.99

2370

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$38.78

2370b

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$38.78

2380

Screw PT Type K-50 X 16

250000959

$2.00

2390

Grommet

705003264

$3.94

2400

Passenger Handhold

707900248

$46.24

2410

Torx Screw M6 X 60

250000648

$7.06

2420

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.28

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

2420b

Hex. Elastic Stop Nut M6

232561600

$1.06

2500

Removable Storage Bin

715004344

$82.81

2510

Removable Storage Bin

715004344

$82.81

2520

Clip | Outlander Max

269501945

$14.90

2530

Handle | DPS Package

707900567

$17.88

2550

Rubber Bumper

293830005

$6.12

2560

Cap

293000120

$2.89

3000

Shifter Gate

707900608

$8.73

3010

Torx Screw M6 X 25 | XT Models

250000728

$4.15

3050

Shifter Gate Deflector

707900506

$5.69

3060

Push Nut

250100178

$0.64

4240

Cap

710004993

$6.30

4245

Storage Box LWR F

707900852

$33.55

4250

Torx Screw K50 X 16

250000720

$1.60

4255

Tuflok Plastic Rivet

293150230

$1.39
