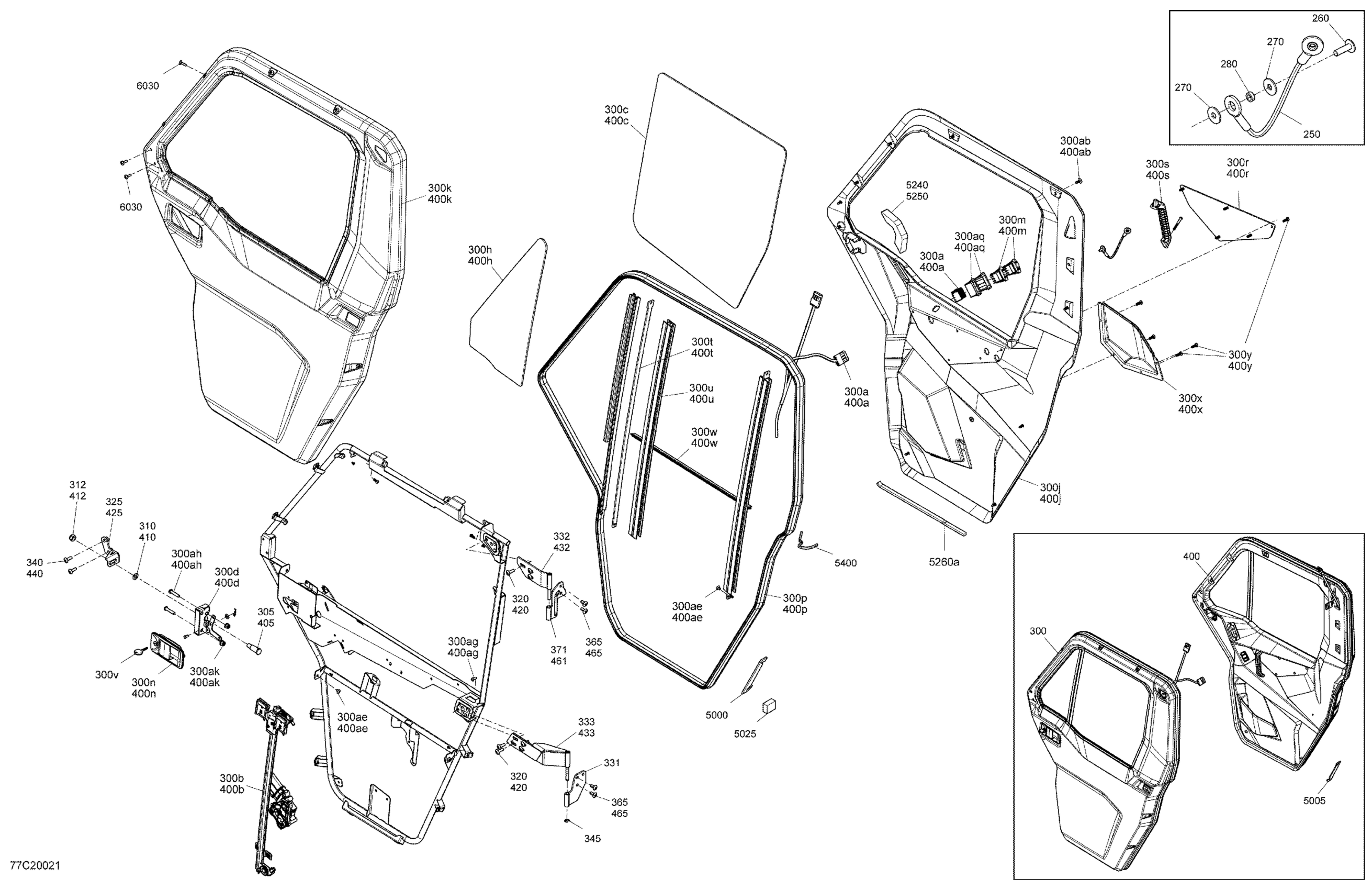

Can-Am Defender MAX HD10 - Limited - 2020 Cab - Front Door Diagram

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$17.88

Torx Screw M6 X 20

250000722

$1.54

Stainless Steel Flat Washer

234062670

$2.00

Bushing

708300737

$4.43

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

Unavailable

Driver Door Harness

705800047

$211.91

LH Window Regulator Ass'y

705800594

$611.91

LH Roll-Down Glass

705800016

$559.99

LH Interior Latch Kit

703500915

$185.79

LH A-Pillar Glass

705800608

$310.42

LH Routed Inner Door | For Plastic Handle

705800322

$1,209.99

LH Ext Door Panel

705800665

$1,177.58

Window Switch

710004979

$35.60

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$241.01

Seal 705800290 - 5000 MM

705800289

$204.45

LH Door Panel Kit

715006687

$203.70

LH Door Panel Kit

715006687

$203.70

LH Interior Handle

705800324

$105.19

Window Guide Bracket

705800595

$155.19

Window Guide Extrusion

705800590

$155.19

Key Set

705800184

$23.10

Folcked Beltline Trim 705800294 600mm

705800591

$49.22

LH Door Pocket

705800604

$164.15

Plastic Dart

705009405

$1.73

Torx Truss M8 X 25

250000874

$2.00

Socket Head Screw M5 X 10

205951046

$2.31

Black, Dart

293730011

$0.91

Socket Screw M6 X 8

205460860

$0.53

Stainless Steel Flat Washer

234062670

$2.00

Torx-truss M/s M6 X 10

250000995

$4.15

Torx Truss M6X14

250000789

$5.06

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.00

Socket Head Screw M8 X 40

205484060

$3.88

Hex. Flange Elastic Nut M6

233261494

$1.45

Elastic Flange Nut M8

233281466

$0.96

Hex. Flange Screw M6 X 20

207662044

$1.91

LH Latch Cable 2.4''

715900493

$56.99

Interior Latch Cable 28''

715900504

$88.78

LH Power Window Switch Housing

715900526

$12.66

Striker Bolt

705800038

$21.61

Conical Spring Washer M12

250200005

$3.04

Elastic Stop Nut M12

232521416

$1.61

Torx Truss M8 X 25

250000874

$2.00

LH Front Striker Support

705801086

$40.27

Lower Female Door Hinge

705800482

$40.27

LH Upper Male Door Hinge

705800340

$95.49

NEEDS DESCRIPTION

705801202

$108.18

Torx Truss M8 X 25

250000874

$2.00

Retaining Ring

293370125

$1.91

Torx Truss M/S M8 X 20

250000953

$2.00

LH Central Female Door Hinge

705800348

$95.49

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

Unavailable

Passenger Door Harness

705800050

$226.84

RH Window Regulator Ass'y

705800593

$611.91

RH Roll-Down Glass

705800025

$559.99

RH Interior Latch Kit

703500916

$185.79

RH A-Pillar Glass

705800609

$310.42

RH Routed Inner Door | For Plastic Handle

705800323

$1,239.99

RH Door Panel EXT

705800666

$1,177.58

Window Switch

710004979

$35.60

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$241.01

Seal 705800290 - 5000 MM

705800289

$204.45

RH Door Panel Kit

715006689

$203.70

RH Door Panel Kit

715006689

$203.70

RH Interior Handle

705800325

$105.19

Window Guide Bracket

705800595

$155.19

Window Guide Extrusion

705800590

$155.19

Folcked Beltline Trim 705800294 600mm

705800591

$49.22

RH Door Pocket

705800605

$164.15

Plastic Dart

705009405

$1.73

Torx Truss M8 X 25

250000874

$2.00

Socket Head Screw M5 X 10

205951046

$2.31

Black, Dart

293730011

$0.91

Socket Screw M6 X 8

205460860

$0.53

Stainless Steel Flat Washer

234062670

$2.00

Torx-truss M/s M6 X 10

250000995

$4.15

Torx Truss M6X14

250000789

$5.06

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.00

Socket Head Screw M8 X 40

205484060

$3.88

Hex. Flange Elastic Nut M6

233261494

$1.45

Elastic Flange Nut M8

233281466

$0.96

Hex. Flange Screw M6 X 20

207662044

$1.91

RH Latch Cable 2.9''

715900494

$56.99

Interior Latch Cable 28''

715900504

$88.78

RH Power Window Switch Housing

715900527

$19.37

Striker Bolt

705800038

$21.61

Conical Spring Washer M12

250200005

$3.04

Elastic Stop Nut M12

232521416

$1.61

Torx Truss M8 X 25

250000874

$2.00

RH Front Striker Support

705800351

$40.27

RH Male Upper Door Hinge

705800341

$95.49

NEEDS DESCRIPTION

705801188

$108.18

Torx Truss M8 X 25

250000874

$2.00

RH Central Female Door Hinge

705800349

$95.49

Torx Truss M/S M8 X 20

250000953

$2.00

Acoustic Insulation

705800504

$4.76

Acoustic Insulation

705800515

$4.76

Acoustic Insulation

705800506

$4.76

LH Insulating Foam

705800278

$7.67

RH Insulating Foam

705800279

$7.67

Neoprene Seal (1PAC=3M)

219704364

$26.09

Acoustic Insulation

705800507

$4.76

Torx Screw M6 X 20

250000712

$2.00
