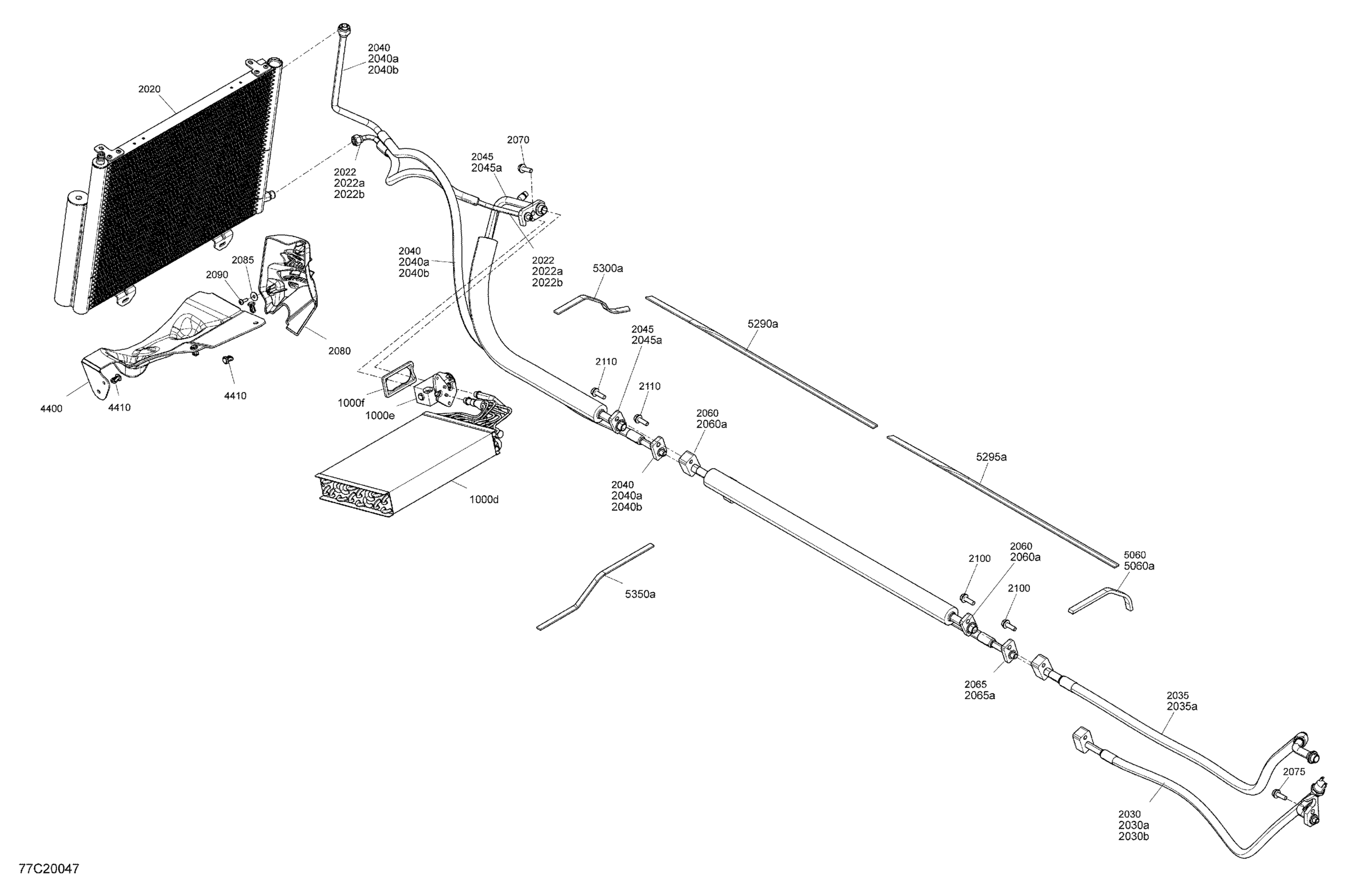

Can-Am Defender MAX HD10 - Limited - 2020 Cab - Cooling Air Conditioner - MAX - Cab LTD Diagram

Description

Price

1000d>1000e

Evaporator | Includes 1000c TO 1000d

705800786

$421.61

1000e

Expansion Valve

705800458

$68.63

1000f

Gasket

705800519

$17.13

2020

Condenser | Includes 2020 to 2020d

520001931

$655.19

2022

Hose | Includes 2022 to 2022b

705800531

$117.88

2022a

Sealing Washer #6

715900665

$9.28

2022b

O-Ring | Not Shown

715900687

$14.33

2030

Compressor Hose | Includes 2030 to 2030b

705800521

$141.01

2030a

Sealing Washer #8

715900666

$9.28

2030b

Pressure Switch

715900673

$22.36

2035

Compressor Hose | Includes 2035 to 2035a

705800522

$141.01

2035a

Sealing Washer #12

715900667

$9.28

2040

Compressor Hose | Includes 2040 to 2040b

705800523

$141.01

2040a

O-Ring

715900669

$24.60

2040b

Sealing Washer #8

715900666

$9.28

2045

Compressor Hose | Includes 2045 to 2045a

705800524

$141.01

2045a

Sealing Washer #12

715900667

$9.28

2060

Compressor Hose | Includes 2060 to 2060a

705800527

$141.01

2060a

Sealing Washer #12

715900667

$9.28

2065

Compressor Hose | Includes 2065 to 2065a

705800528

$141.01

2065a

Sealing Washer #8

715900666

$9.28

2070

Hex. Elastic Flange Nut M8

233281416

$1.43

2075

Hex. Flange Screw M8 X 25

207682534

$1.03

2080

Hose Support

705800588

$13.45

2085

Stainless Steel Flat Washer

234062670

$2.00

2090

Torx Screw K50 X 16

250000720

$1.60

2100

Hex. Flange Screw M8 X 25

207682534

$1.03

2110

Hex. Flange Screw M8 X 25

207682534

$1.03

4400

Front Air Deflector

705800489

$91.76

4410

Tuflok Plastic Rivet

293150230

$1.39

5060

Neoprene Seal (1PAC=3M)

219704364

$26.09

5060a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5290a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5295a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5300a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5350a

Gasket, Neoprene 2000Mm Long

219704476

$14.51
