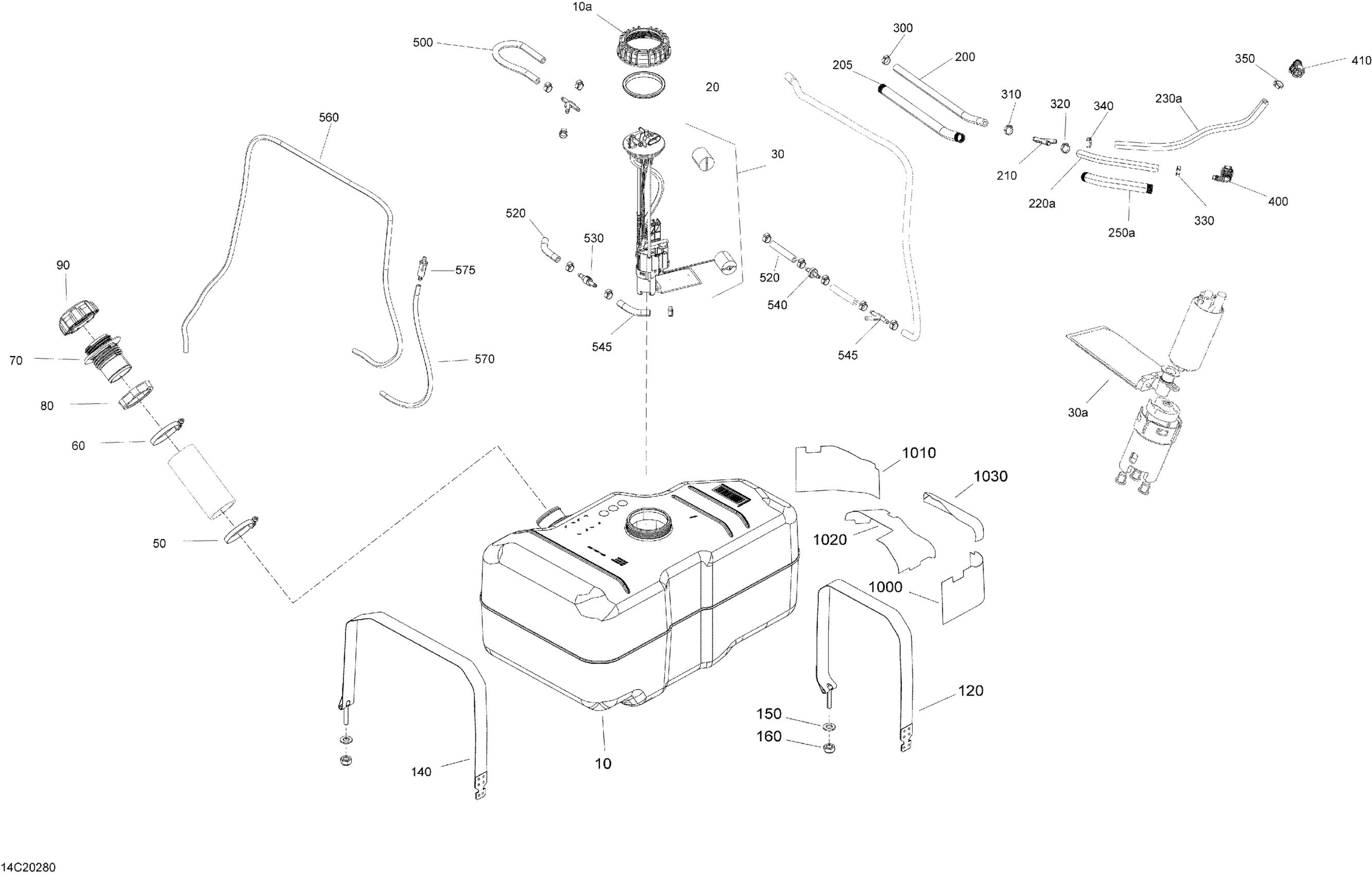

Can-Am Defender MAX HD10 - Limited - 2020 Engine - Fuel - No Evap Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$264.99

10a

Fuel Pump Module Nut

709000328

$13.75

20

Seal

709000208

$14.99

30

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

50

Norma Clamp

293650081

$12.18

60

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Filler Neck Nut, Fuel

211100012

$14.22

90

Fuel Cap

709000868

$32.99

120

Retaining Strap

709001291

$39.99

140

Retaining Strap

709001141

$43.99

150

Flat Washer 8 mm

234081410

$0.83

160

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Was 709000163 Fuel Line

219704440

$28.99

205

Tubing 16 Mm 1000Mm Long

219704408

$7.49

210

Y-Fitting, 5/16''

293710136

$6.49

220a

Was 709000163 Fuel Line

219704440

$28.99

230a

Was 709000163 Fuel Line

219704440

$28.99

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp, 15.3-706R

293650047

$3.29

310

Crimp Clamp, 15.3-706R

293650047

$3.29

320

Crimp Clamp, 15.3-706R

293650047

$3.29

330

Crimp Clamp, 15.3-706R

293650047

$3.29

340

Crimp Clamp, 15.3-706R

293650047

$3.29

350

Crimp Clamp, 15.3-706R

293650047

$3.29

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

520

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

530

Check Valve

513033469

$31.99

540

Check Valve

275500398

$10.99

545

Y-Fitting

293710059

$9.69

560

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

570

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

575

Filter

709001120

$8.05

1000

Heat Shield

707002670

$33.99

1010

Heat Shield

707002671

$33.99

1020

Heat Shield

707002673

$33.99

1030

Heat Shield

707002719

$33.99
