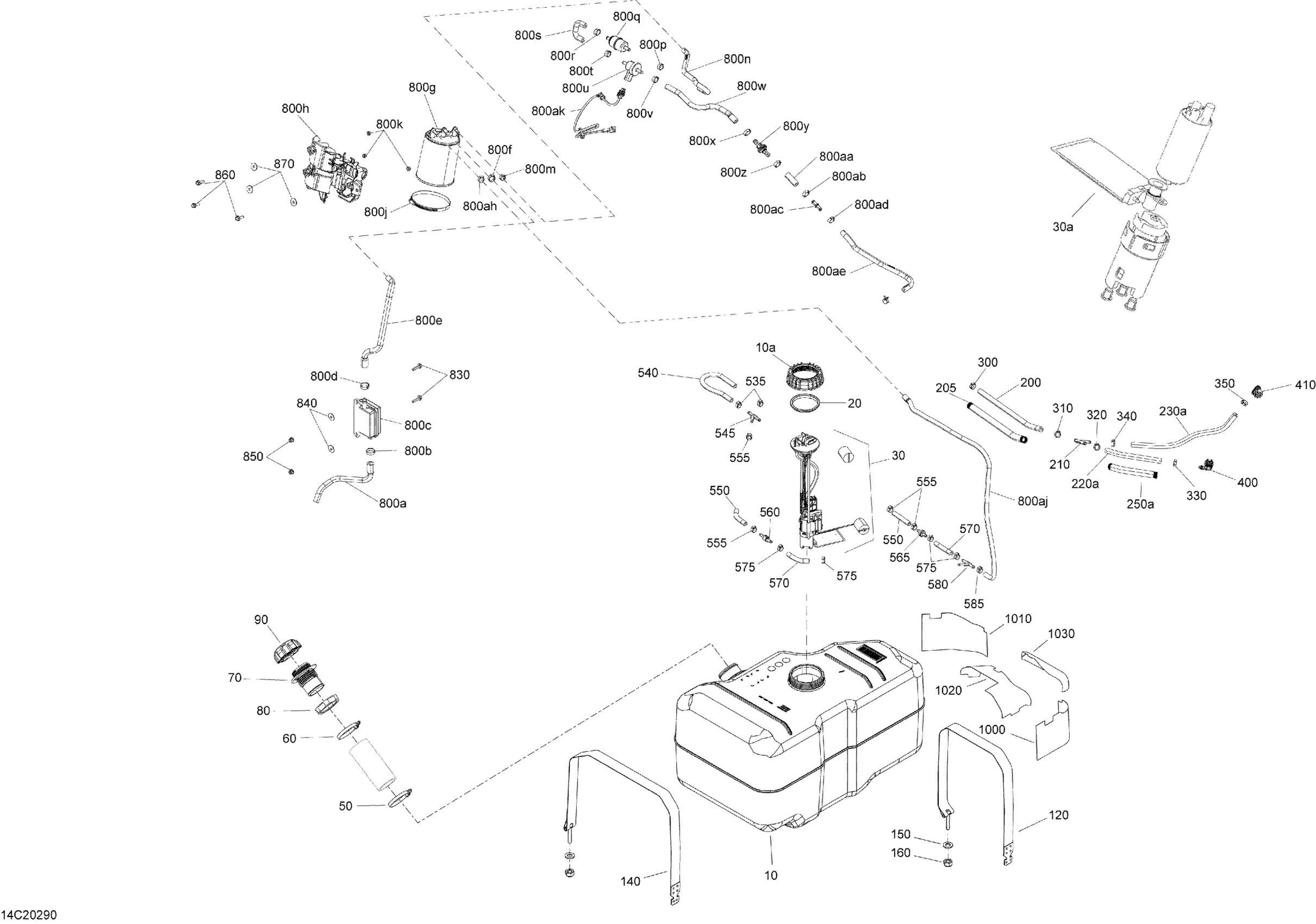

Can-Am Defender MAX HD10 - Limited - 2020 Engine - Fuel - Evap Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$240.27

10a

Fuel Pump Module Nut

709000328

$12.43

20

Seal

709000208

$12.16

30

Fuel Pump | Includes 30 to 30a

709001189

$323.94

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

50

Norma Clamp

293650081

$11.33

60

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

120

Retaining Strap

709001291

$35.79

140

Retaining Strap

709001141

$35.79

150

Flat Washer 8 mm

234081410

$0.79

160

Hex. Elastic Nut M8 Brass

232581200

$1.48

200

Was 709000163 Fuel Line

219704440

$25.34

205

Tubing 16 Mm 1000Mm Long

219704408

$7.15

210

Y-Fitting, 5/16''

293710136

$5.76

220a

Was 709000163 Fuel Line

219704440

$25.34

230a

Was 709000163 Fuel Line

219704440

$25.34

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Attach 90°

275500700

$14.48

410

Quick Attach 90°

275500700

$14.48

535

Oetiker Clamp

293650042

$2.82

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$9.40

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$2.82

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$2.82

580

Y-Fitting

293710059

$9.40

585

Oetiker Clamp

293650042

$2.82

800a

Formed Hose

709000965

Unavailable

800b

Oetiker Clamp

293650186

$3.82

800c

Air Filter

709000524

$41.01

800d

Oetiker Clamp

293650186

$3.82

800e

Formed Hose

709000850

$14.33

800f

Crimp Clamp

293650053

$2.78

800g

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800h

Canister Support | EVAP Models

709000851

$4.40

800j

Tridon Clamp

293650054

$8.63

800k

Hex. Elastic Stop Nut M6

232561600

$1.06

800m

Oetiker Clamp

293650042

$2.82

800n

Formed Hose

709000853

$14.33

800p

Oetiker Clamp

293650046

$2.67

800q

Fuel Filter

513034047

$35.99

800r

Crimp Clamp, 15.3-706R

293650047

$3.03

800s

Formed Hose

709000857

$14.33

800t

Crimp Clamp, 15.3-706R

293650047

$3.03

800u

Bleed Valve

709000443

$65.64

800v

Crimp Clamp, 15.3-706R

293650047

$3.03

800w

Formed Hose

709000937

$14.90

800x

Crimp Clamp

293650053

$2.78

800y

Check Valve

275500941

$23.10

800z

Crimp Clamp

293650053

$2.78

800aa

Hose

709000882

$14.33

800ab

Crimp Clamp

293650053

$2.78

800ac

Flow Reducer

709000933

$3.79

800ad

Crimp Clamp, 15.3-706R

293650047

$3.03

800ae

Formed Hose

709001092

$29.82

800ae

Formed Hose

709001092

$29.82

800ah

Oetiker Clamp

293650046

$2.67

800aj

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800ak

Purge Valve Cable

710005718

$18.63

830

Hex. Flange Screw M6 X 25

207662554

$1.43

840

Flat Washer M6.6 X 22

250200162

$2.19

850

Hex. Flange Elastic Nut M6

233261494

$1.45

860

Hex. Flange Screw M6 X 20

207662054

$0.96

870

Flat Washer M6.6 X 22

250200162

$2.19

1000

Heat Shield

707002670

$30.57

1010

Heat Shield

707002671

$30.57

1020

Heat Shield

707002673

$30.57

1030

Heat Shield

707002719

$29.82
