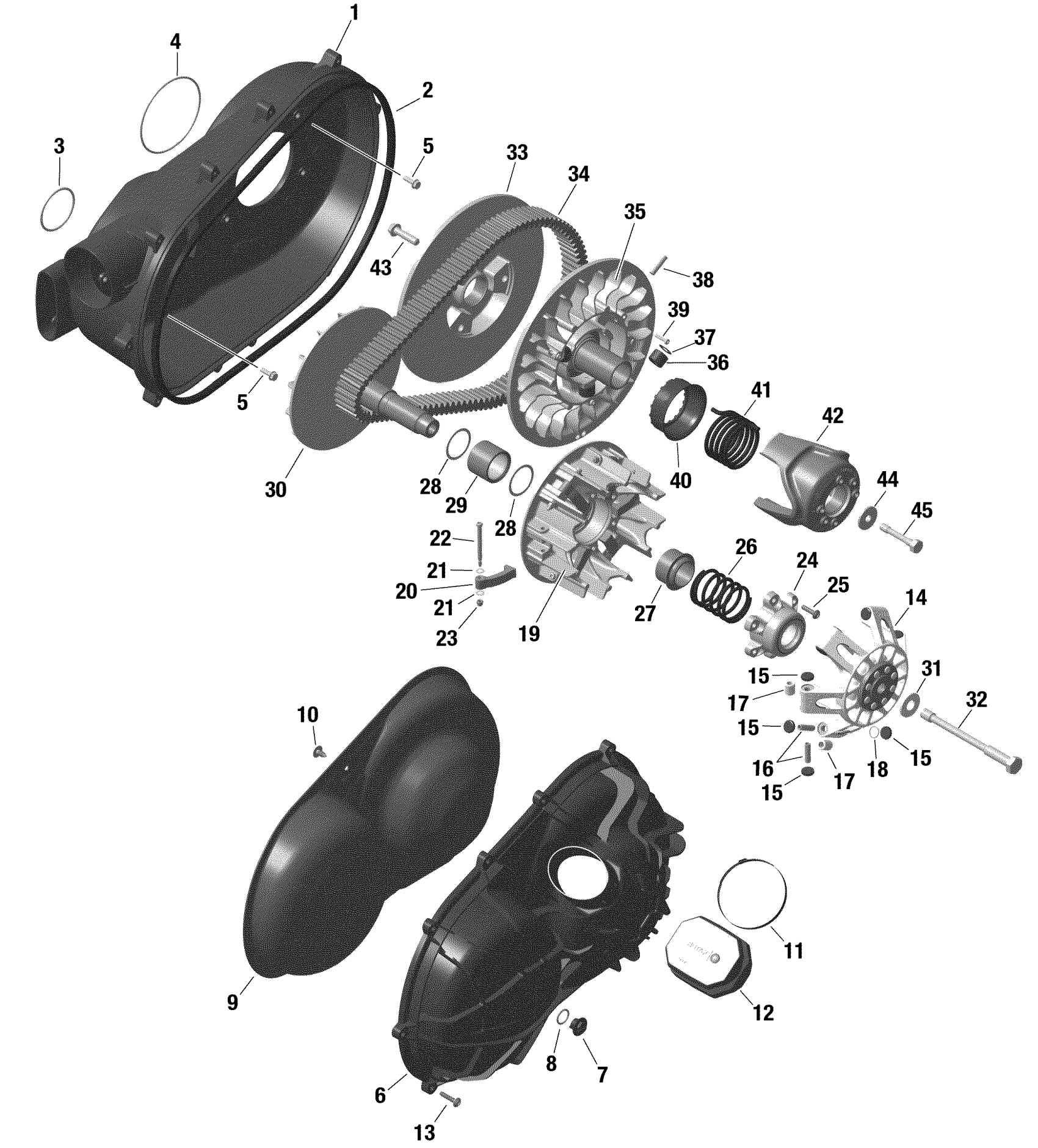

Can-Am Defender MAX HD10 - Limited - 2020 Engine - Transmission - 1010 TSS Diagram

#

Description
Price

1

CVT Air Guide

420212604

$212.28

2

Gasket

420450400

$32.28

3

O-Ring

420430408

$5.52

4

O-Ring

420450431

$5.52

5

Hex.Screw M6 X 20

420441311

$4.24

6

Variator Cover

420212711

$235.35

7

Cap

420441820

$11.06

8

O-Ring

420250052

$9.29

9

Insulating Mat

420897387

$55.35

10

Trim Button

420651816

$1.37

11

Ear Clamp 87.3-90.5MM

420251485

$7.60

12

Closure Cap

420201940

$23.05

13

Torx Screw 6X30

420441575

$2.54

14

Governor Cup Ass'y

420280746

$179.97

15

Slider Shoe Set

420281296

$42.28

16

Roller Axle

417223257

$9.22

17

Roller

417223767

$7.37

18

O-Ring

420230456

$1.54

19

Outer Half Ass'y

420280609

$198.43

20

Lever Set | Includes 16-19

420248688

$166.12

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Bearing Cover Ass'y

420280615

$64.58

25

Torx Flange Screw M6 X 25

420841549

$1.97

26

Compression Spring

420638119

$14.75

27

Spring Seat

420427210

$38.56

28

Washer

420427220

$4.60

29

Needle Roller Bearing With Sleeves

420832351

$46.12

30

Inner Half Ass'y

420280596

$179.97

31

Washer

420245690

$4.60

32

Hexagonal Screw M14X 165

420841161

$27.66

33

Sliding Pulley Ass'y

420280636

$332.28

34

Drive Belt

422280652

Unavailable

35

Outer Half Ass'y

420280628

$350.74

36

Pulley Roller

417127016

$23.05

37

Thrust Washer

420227946

$2.31

38

Bearing Pin

420629192

$14.37

39

Torx Screw M4 X 20

420841531

$1.54

40

Spring Support

420427805

$11.56

41

Compression Spring

420638124

$36.89

42

Cam

420280758

$115.35

43

Torx Flange Screw M10 X 40

420841711

$1.54

44

Collar Washer

420427243

$15.35

45

Hexagonal Screw M10X 61

420441990

$18.43
