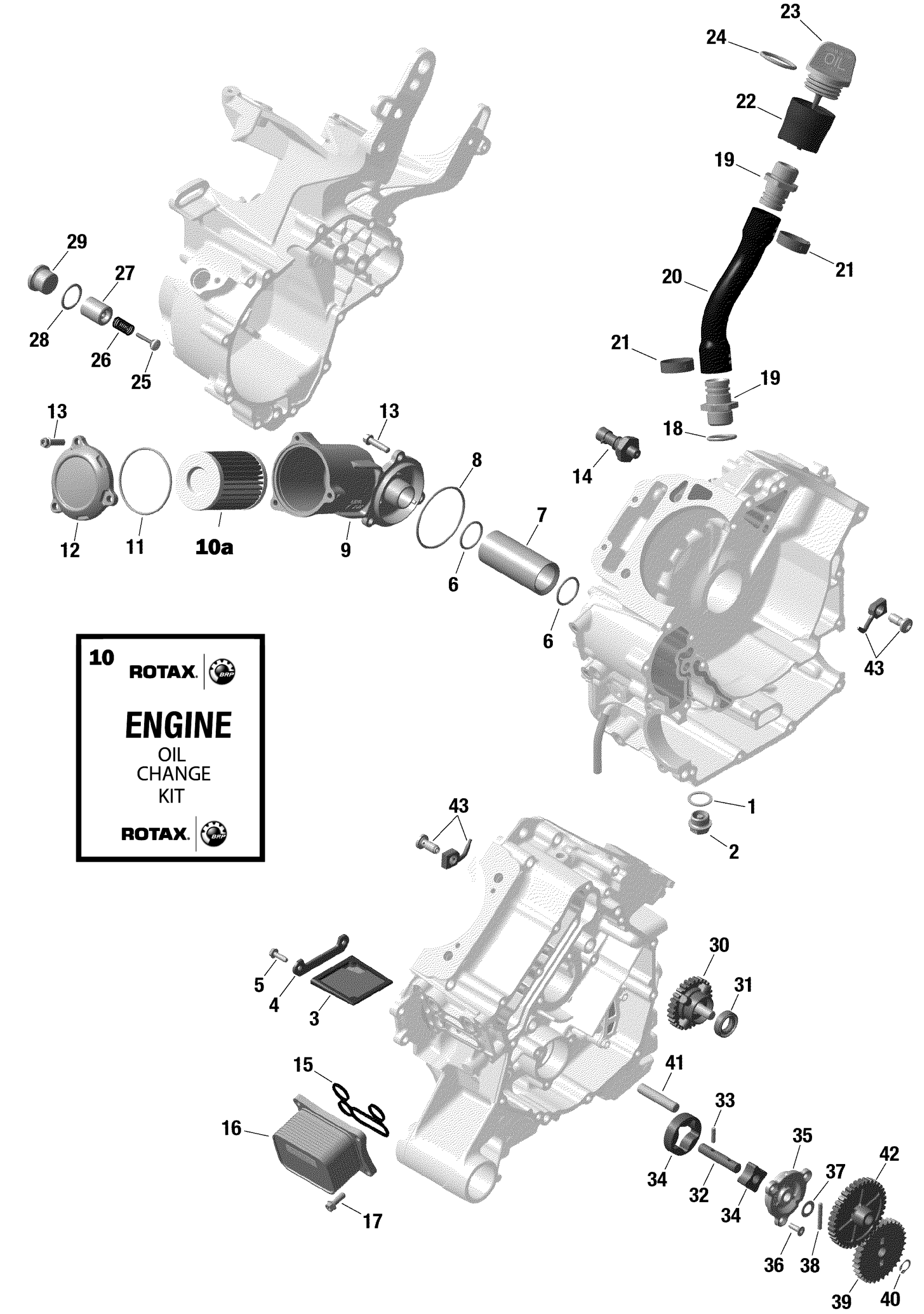

Can-Am Defender MAX HD10 - Limited - 2020 Engine - Lubrication - 1010 TSS Diagram

#

Description
Price

1

Crush Washer

420552280

$3.70

2

Drain Plug M18 X 1.5

420840278

$23.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420612070

$4.14

5

Taptite Screw M5 X 16

420941928

Unavailable

6

O-Ring | Included in gasket kit

420631618

$0.92

7

Oil Pipe

420856880

$23.99

8

O-Ring

420230923

$3.17

9

Oil Filter Housing

420611210

$22.99

10

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$72.99

10

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.99

10a

Oil Filter

420256188

$13.77

11

O-Ring

420230923

$3.17

12

Oil Filter cover

420612135

$11.63

13

Torx Flange Screw M6 X 25

420440234

$3.06

14

Oil Pressure Switch

420256915

$40.99

15

Oil Seal

420430325

$8.85

16

Radiator

420890181

$95.49

17

Torx Flange Screw M6 X 16

420440164

$2.19

18

O-Ring

420631641

$1.01

19

Adaptor

420856610

$18.49

20

Oil Tube

420201950

$18.55

21

Clamp

420853163

$10.33

22

Adaptor

420856615

$11.12

23

Oil Level Gauge

420956934

$50.99

24

O-Ring

420250320

$5.00

25

Pressure Relief Valve

420656370

$19.19

26

Compression Spring

420939485

$12.99

27

Housing

420256487

$7.41

28

Gasket Ring

420650465

$13.16

29

Plug Screw

420640271

$13.77

30

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

31

Oil Seal

420430555

$19.99

32

Oil Pump Shaft

420237059

$29.49

33

Needle Pin

420232731

$4.01

34

Oil Pump Rotor

420256348

$77.99

35

Oil Pump Cover

420210646

$48.49

36

Torx Head Screw M5 X 16

420640823

$1.90

37

Thrust Washer

420827590

$4.01

38

Needle Pin

420232431

$4.39

39

Oil Pump Gear, 33 Teeth

420434320

$13.77

40

Circlip

504152282

$3.17

41

Location Pin 10 M6x50

420229302

$3.17

42

Idle Gear, 38 Teeth

420434300

$13.77

43

Oil Nozzle

420656048

$37.99
