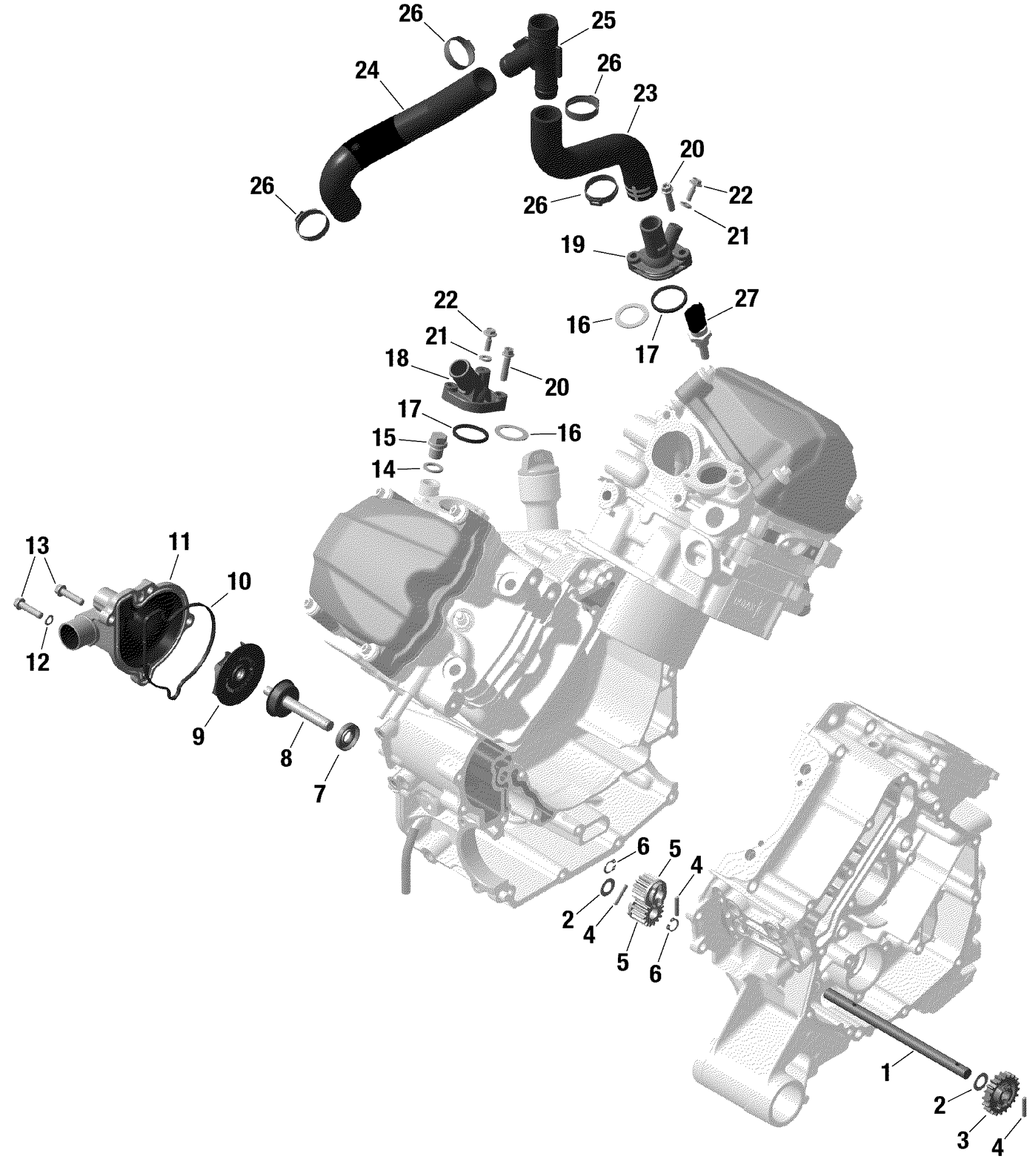

Can-Am Defender MAX HD10 - Limited - 2020 Engine - Cooling - 1010 TSS Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$36.99

2

Thrust Washer

420827590

$4.01

3

Water Pump Gear

420434330

$11.63

4

Needle Pin

420232420

$4.01

5

Pump Gear, 15 Teeth

420234627

$11.63

6

Circlip

504152282

$3.17

7

Oil Seal

420650315

$11.65

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$72.99

8a

Rotary Seal

420650371

$43.49

9

Water Impeller

420822750

$19.49

10

Kit Water Pump Housing

703501124

$53.99

11

Gasket

420651191

$15.89

12

Seal Washer

420230415

$1.79

13

Torx Flange Screw M6 X 25

420440234

$3.06

14

Copper Washer

420250640

$0.98

15

Plug screw

420841924

$14.28

16

Spacer Ass'y | Includes 40 to 41

420927837

$7.41

17

Thermostat Gasket

420650300

$8.57

18

Thermostat Cover

420222696

$3.17

19

Thermostat Cover

420222697

$8.68

20

Torx Flange Screw M6 X 25

420440234

$3.06

21

Gasket Ring

420650255

$4.12

22

Screw M5 X 16

420441621

$3.17

23

Rear Head Hose

420822696

$19.17

24

Front Head Hose

420822701

$20.99

25

Y-Fitting

709200414

$11.12

26

Clamp

420251578

$8.57

27

Temperature Sensor

278002895

$39.99
