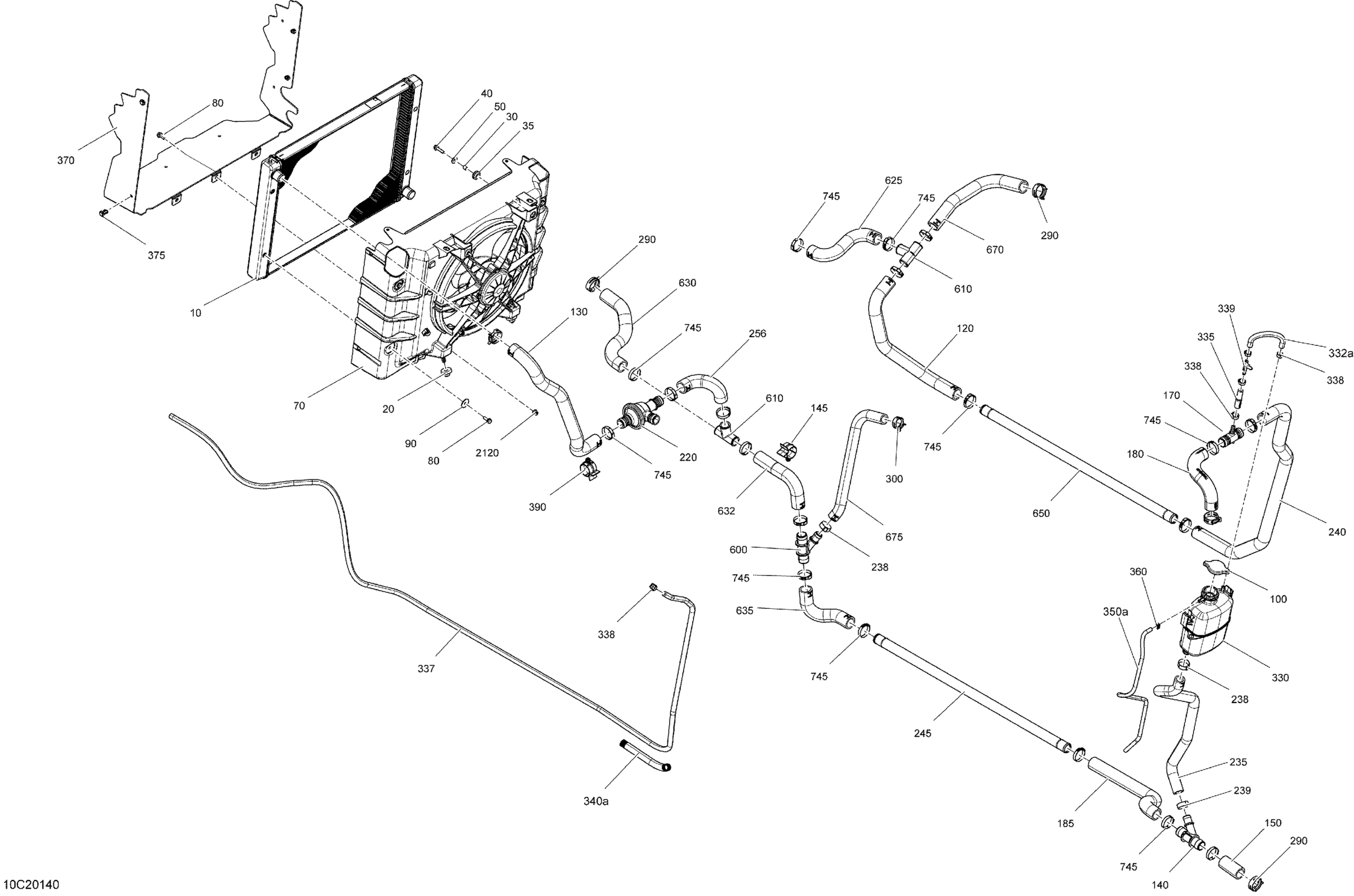

Can-Am Defender MAX HD10 - Limited - 2020 Cooling - System Diagram

#

Description
Price

10

Radiator

709200829

$259.67

20

Grommet

709200285

$8.13

30

Bushing

293900105

$6.07

35

Grommet

709000582

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.61

50

Flat Washer 6 mm

234062410

$0.73

70

Cooling Fan Ass'y

709201287

$232.06

80

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

90

Washer M6

250200029

$1.78

100

Radiator Pressure Cap

709200207

$21.61

120

Hose

709200973

$13.39

130

Radiator Hose In

709200980

$15.64

135a

Tubing 35 MM 1000MM Long

219704428

$9.84

140

Y Fitting

509001200

$5.10

145

Retainer

275500590

$8.24

150

Hose

709200299

$6.69

170

T-Fitting

509000510

$11.18

180

Hose Engine Out

709200915

$38.03

185

Hose

709200971

$38.03

220

Thermostat Housing

709200986

$89.52

235

Hose Coolant Tank Out

709201103

$34.30

238

Oetiker Gear Clamp

293650165

$4.96

239

Oetiker Gear Clamp

293650165

$4.96

240

Hose

709200969

$33.55

245

Heater Tubing

709200658

$13.58

256

Hose Thermostat Out

709200978

$33.55

290

Norma Spring Clamp

293650166

$4.15

300

Norma Spring Clamp

293650109

$3.88

330

Coolant Tank

709201323

$72.36

332a

Was 415129508 Bleeder Hose

219704416

$11.48

334

Oetiker Clamp

293650042

$2.82

335

Bleeding Hose

709200606

$18.63

337

Was 415129508 Bleeder Hose

219704416

$11.48

338

Crimp Clamp, 15.3-706R

293650047

$3.03

339

Y-Fitting

293710059

$9.40

340a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

360

Spring Clamp

414554800

$0.81

370

Front Radiator Deflector

705014897

$44.75

375

Tuflok Plastic Rivet

293150230

$1.39

390

Retainer

275500590

$8.24

600

Y Fitting

509001200

$5.10

610

T-Fitting

509000219

$14.90

625

Thermostat Inlet Hose

709200979

$33.55

630

Formed Radiator Hose OUT

709201444

$10.51

632

Formed Radiator Hose OUT

709201437

$10.51

635

Hose

709200972

$13.39

650

Heater Tubing

709200658

$13.58

670

Hose

709200976

$13.39

675

Hose

709200975

$13.39

745

Gear Clamp

509000162

$4.90

950

Oetiker Gear Clamp

293650165

$4.96

2120

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
