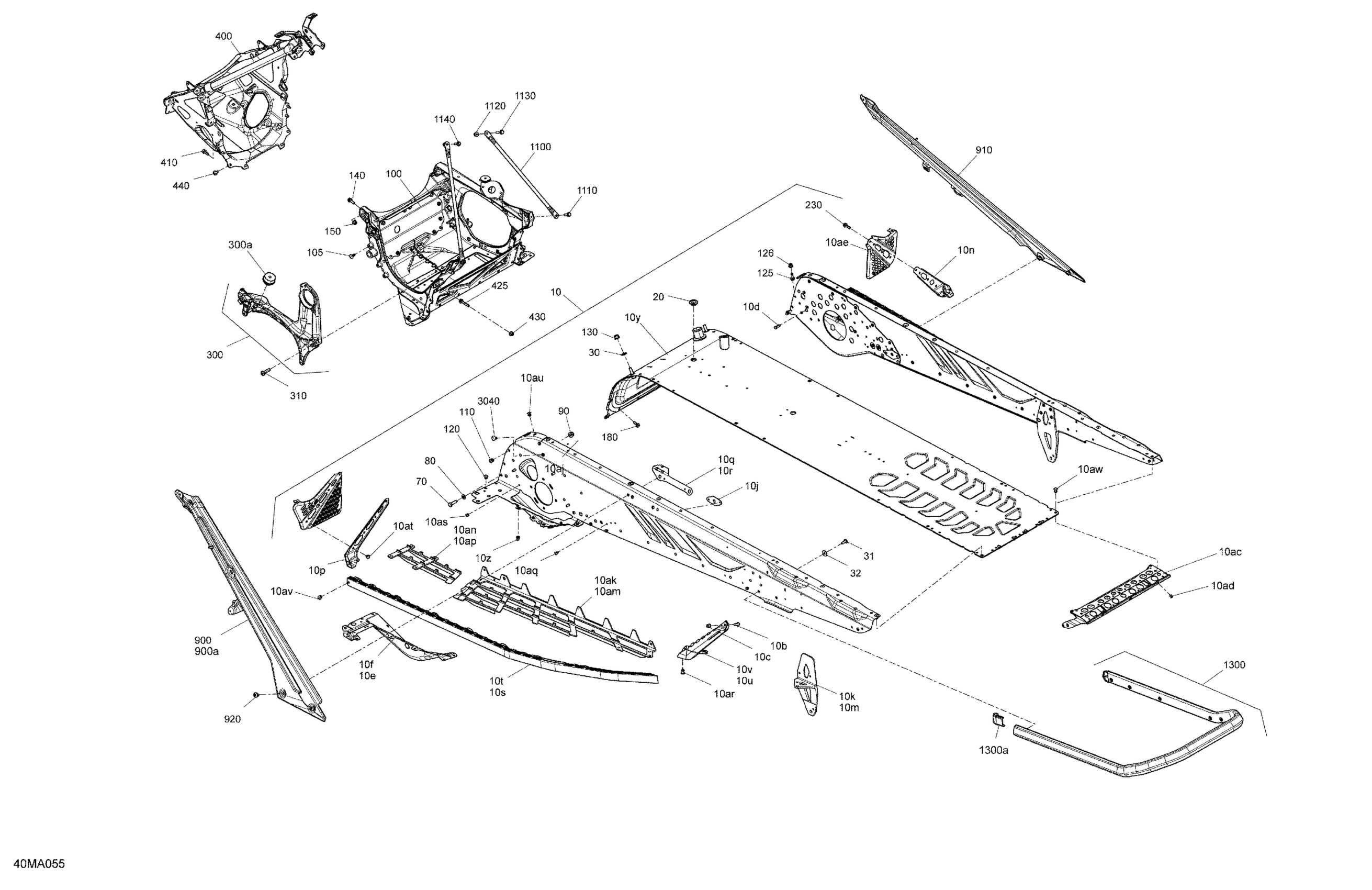

Ski-Doo SUMMIT 850 E-TEC Turbo - X with EXPERT Package - 165" Black - Europe, 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 165" | Includes 10 to 10aw

518332388

Unavailable

10b

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

10c

Collar Huck Magna-Grip 6.4

293150149

$0.36

10d

Clinch Stud M6 X 20

250300027

$1.87

10e

RH Footrest Reinforcement

518332576

$79.07

10f

LH Footrest Reinforcement

518332575

$79.07

10j

Reinforcement Plate

518326647

$4.21

10k

LH Rear Suspension Support This part replaces 518329053.

518334392

$37.28

10m

Support_Suspension Rear R This part replaces 518329054.

518334393

$38.78

10n

Stirrup Reinforcement

518331253

$17.88

10p

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

10q

LH Under Chassis Reinforcement

518331744

$15.64

10r

RH Under Chassis Reinforcement

518331745

$16.39

10s

RH Roller

518328737

$175.34

10t

LH Roller

518328738

$175.34

10u

LH Roller Link

518330160

$41.76

10v

RH Roller Link

518330161

$41.76

10y

Radiator Tunnel 154 Ass'y

518334491

$658.93

10z

Clinch Nut M6 Hexsert

605636003

$4.00

10ac

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$57.43

10ad

Rivet Avibulb 3/16

293150203

$0.28

10ae

RH Footrest

518328460

$37.28

10aj

LH Footrest

518333007

$37.28

10ak

LH Rear Perforated Footstep

518330960

$105.94

10am

Footstep R Rh Perforated

518330962

$105.94

10an

LH Front Driver Footrest

518330385

$80.57

10ap

RH Front Driver Footrest

518330388

$80.57

10aq

Avex Rivet

390909100

$0.28

10ar

Rivet

293150183

$2.00

10as

Avex Rivet

390909200

$0.28

10at

Hemlock Rivet, 6.5 mm

293150096

$3.07

10au

Hemlock Rivet, 6.5 mm

293150119

$3.88

10av

Hemlock Rivet, 6.4 mm

293150174

$6.24

10aw

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

30

Conical Spring Washer M8

250200146

$0.96

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

32

Flat Washer

224061201

$1.27

70

Hex Screw M8 X 30

250000942

$1.06

80

Flat Washer 8 mm

234081410

$0.79

90

Hex. Flange Elastic Nut M8

233281414

$1.31

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$550.72

105

Dart

293730079

$1.87

110

Ornit Rivet 6,5 X 14.5

293150266

$1.88

120

Hemlock Rivet, 6.4 mm

293150174

$6.24

125

Hex. Flange Screw M6 X 20

207662044

$1.91

126

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

130

Hex. Flange Elastic Nut M8

233281414

$1.31

140

Hex. Flange Screw M6 X 20

207662046

$2.00

150

Elastic Flange Nut M6 X 1.0

233261416

$2.00

180

Hex. Flange Screw M6 X 16

207661646

$1.15

230

Hex. Flange Screw M6 X 20

207562056

$2.00

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$262.66

300a

Vibration Damper

512061516

$55.94

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

400

Chassis Suspension Module

518334460

$623.85

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

440

Hex. Flange Screw M6 X 16

207661646

$1.15

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

910

Black, RH Member Ass'y | Black

518330880

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

1100

Upper Colomn Support

518329974

$20.12

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1130

Hex. Flange Screw M6 X 25

207662556

$4.15

1140

Hex. Flange Screw M6 X 20

207662046

$2.00

1300

Rear Short Bumper 165 | Includes 1300 to 1300b

518331206

$134.99

1300a

Cap

520001612

$8.36

3040

Dart

293730079

$1.87
