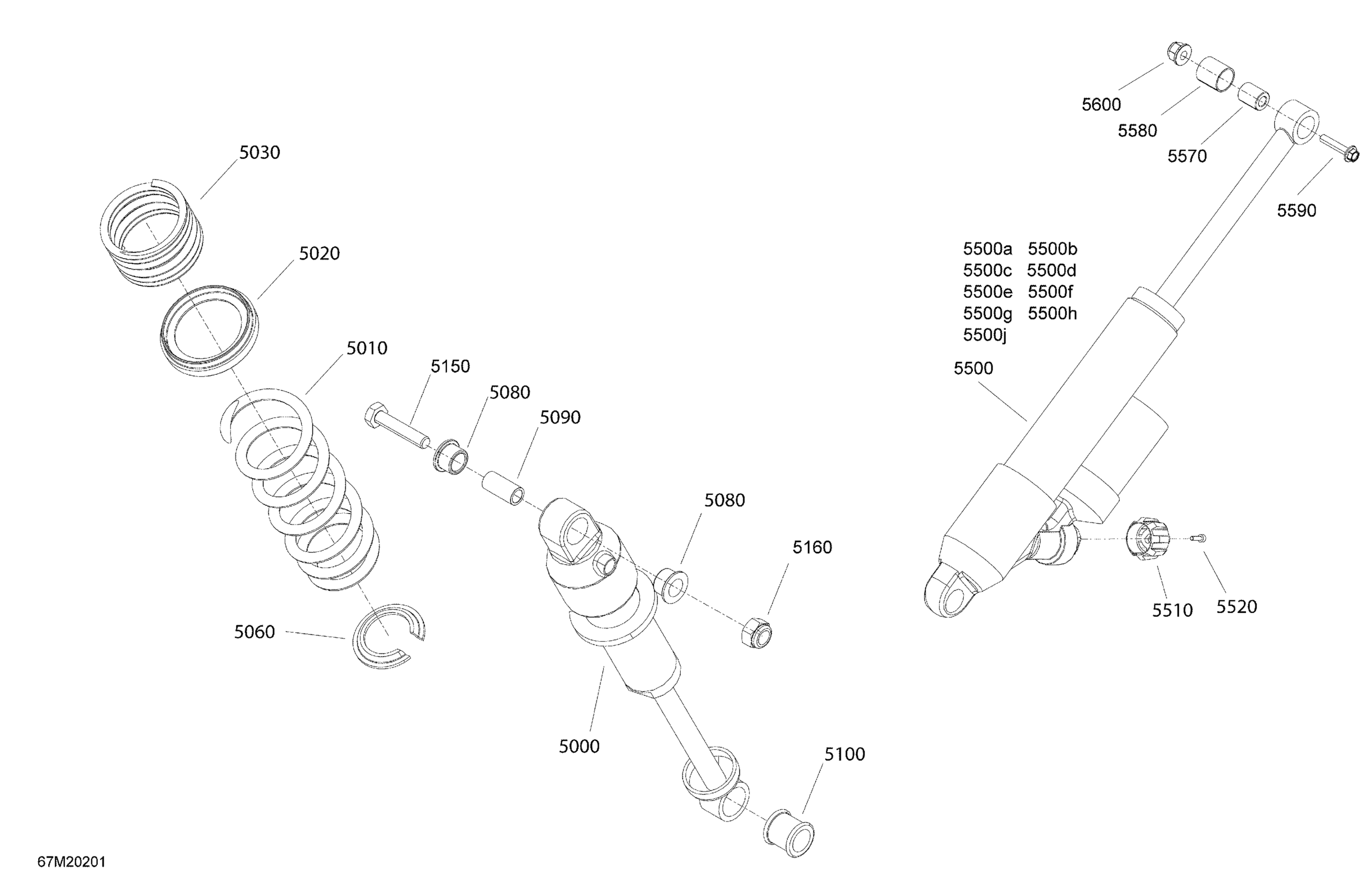

Ski-Doo RENEGADE 900 ACE Turbo - X - 2020 Suspension, Rear - Shocks - X Diagram

Description

Price

5000

Central Shock

503193536

$434.49

5010

Deep Black, Spring (189mm) Long

503193160

$92.99

5020

Spring Spacer

503191281

$9.09

5030

Black, Spring (51mm) Short

503193837

$69.99

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.89

5160

Elastic Locking Nut M10

233601466

$2.19

5500

Rear Shock | Without Quick Adjust System

503194670

$877.49

5500

Rear Shock | With Quick Adjust System

503194669

$877.49

5500a

O-Ring

415093807

$36.99

5500b

Piston Ring | Not Shown

415093806

$17.49

5500c

Air Valve

505070398

$21.99

5500d

Screw | Not Shown

505070399

$4.19

5500e

O-Ring

505070400

$4.69

5500f

O-Ring

415093804

$4.69

5500g

Base Valve

415130165

$81.99

5500g

Bolt

415093810

$17.49

5500h

O-Ring

415038700

$43.99

5500j

Base Valve

415130165

$81.99

5510

Shock Adjuster Knob

503193033

$11.49

5520

Allen Screw M3 X 0.5 X 10

250000644

$2.19

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.49

5600

Elastic Flange Nut M8

233281466

$1.49
