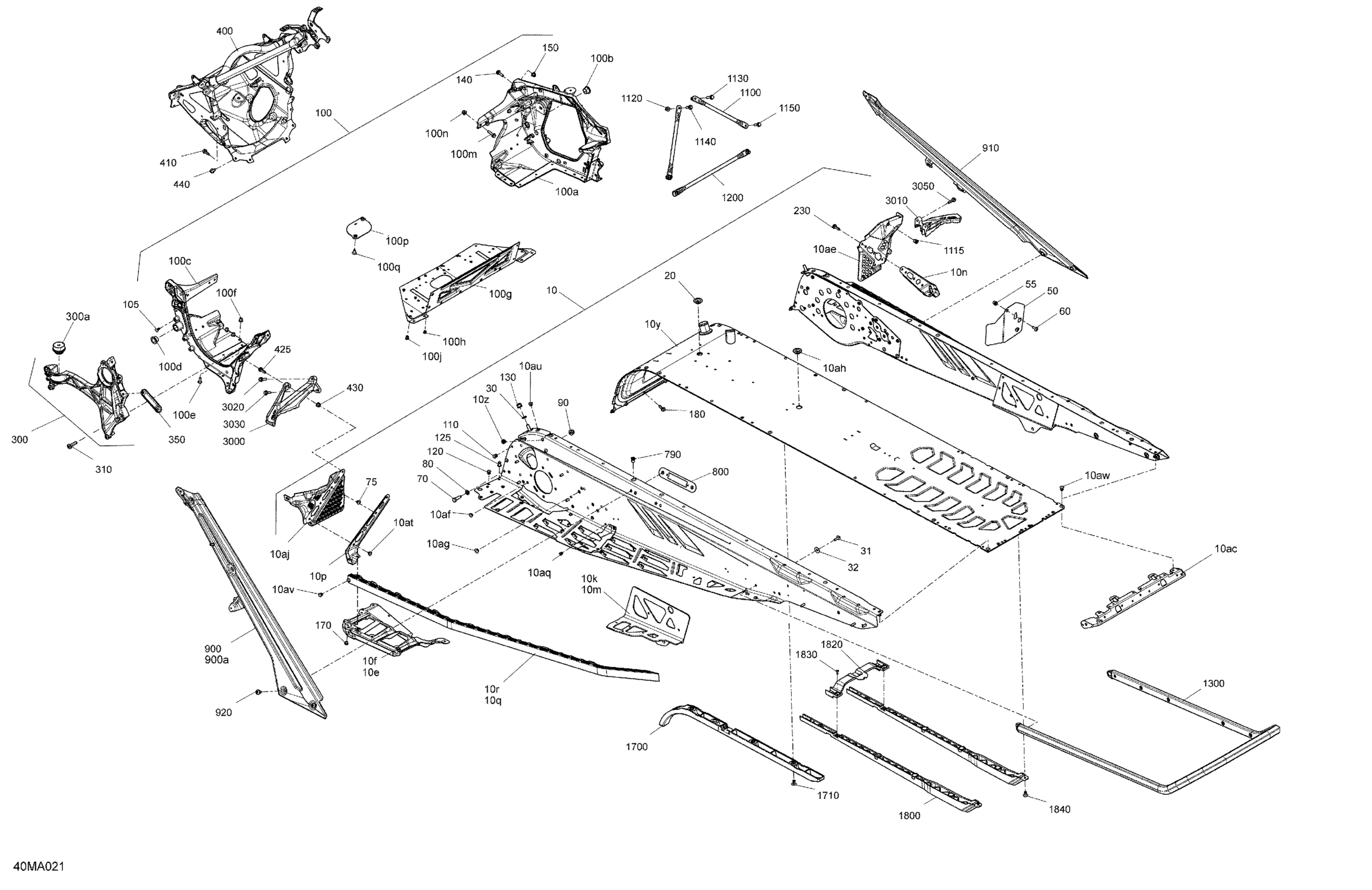

Ski-Doo 012 - RENEGADE 900 ACE Turbo - Enduro - North America, 2021 06- Frame - System - Enduro Diagram

Deep Black, Chassis Tunnel Module 137" | Includes 10 to 10ar

415130545

$3.00

Deep Black, RH Footrest Reinforcement

518330738

$88.99

Deep Black, LH Footrest Reinforcement

518331523

$88.99

RH Suspension Bracket

518329627

$79.99

LH Suspension Bracket

518329628

$79.99

Stirrup Reinforcement

518331253

$21.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518329648

$194.99

LH Roller

518328452

$194.99

Radiator Tunnel 137 Ass'y

518334488

$720.49

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518330691

$24.99

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Black, Plug

293730052

$9.19

LH Foot Protector

518331559

$23.99

Rivet Avibulb 3/16

293150203

$2.09

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Flat Washer 8 mm

234081410

$0.83

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Hex Screw M8 X 30

250000942

$1.15

Hemlock Rivet, 6.5 mm

293150096

$3.27

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$619.99

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$204.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332715

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 25

250000945

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Oil Plate

518329454

$18.49

Torx Truss Screw M6 X 12

250000767

$2.00

Dart

293730079

$2.09

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Hemlock Rivet 6.5 mm

293150120

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 16

207661646

$1.36

Hex. Flange Screw M6 X 20

207562056

$2.11

LH Side Member Ass'y | Includes 300 to 300b

518333691

$199.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$11.49

Chassis Suspension Module

518334461

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 x 35

207663546

$1.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Insert

293450278

$4.49

Member Fixation Plate

518329480

$12.99

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

RH Rear Diagonal Cross Member

518330885

Unavailable

Black, RH Member Ass'y | Black

518330880

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329370

$22.49

Insert

293450275

$12.99

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Center Column Support

518329755

$3.69

Rear Bumper | Includes 1300 to 1300c

518330033

$111.49

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Rear Protector

518329979

$9.23

Support

520001545

$2.00

Torx Truss PT K40 x 12

250001131

$2.11

Pop Rivet 3/16”

293150108

$1.19

Black Toe-hold

518330358

$24.99

Toe Hold

518329134

$18.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex Screw Forming M6 x 25

250001124

$2.40
