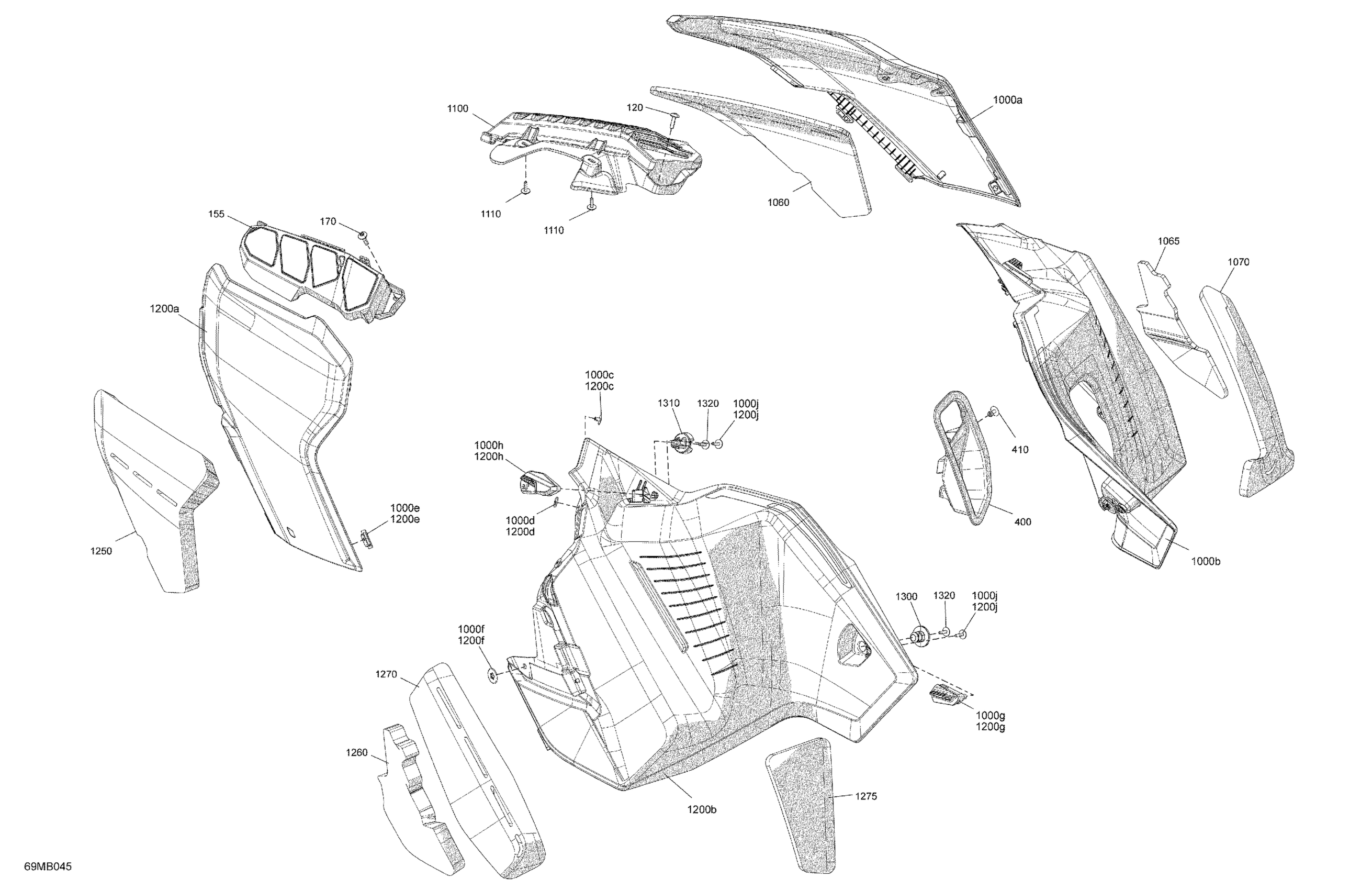

Ski-Doo 012 - RENEGADE 900 ACE - Adrenaline - North America, 2022 07- Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.11

155

LH Hood Trim

517306690

$31.99

170

Torx Screw M5 X 20

250000528

$2.11

400

Reverse Lever Trim

517306302

$6.29

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000a

Deep Black, RH Front Panel

517307314

$189.99

1000a

Sunburst Yellow, RH Front Panel

517307530

$214.99

1000b

RH Rear Panel

517306904

$189.99

1000c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000d

Washer

517124300

$0.19

1000e

Rivet Plate

517305109

$4.99

1000f

Push Nut

508000853

$2.09

1000g

RH Rear Latch

517305773

$18.49

1000h

RH Front Latch

517305979

$16.79

1000j

Screw M4 X 16

250000725

$3.49

1060

Foam

517306461

$14.49

1065

Foam

517306495

$6.69

1070

RH Rear Panel Foam

517306845

$14.49

1100

RH Hood Grille Ass'y

517308292

$81.99

1110

Screw M4 X 16

250000725

$3.49

1200a

Deep Black, LH Front Panel

517308779

$204.99

1200a

Sunburst Yellow, LH Front Panel

517307534

$214.99

1200b

Deep Black, LH Rear Panel

517308780

$204.99

1200c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200d

Washer

517124300

$0.19

1200e

Rivet Plate

517305109

$4.99

1200f

Push Nut

508000853

$2.09

1200g

LH Rear Latch

517305774

$18.49

1200h

LH Front Latch

517305980

$18.49

1200j

Screw M4 X 16

250000725

$3.49

1250

Foam

517306463

$14.49

1260

Foam

517306464

$7.89

1270

Foam

517306465

$14.49

1275

LH Rear Panel Foam

517306496

$6.99

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49
