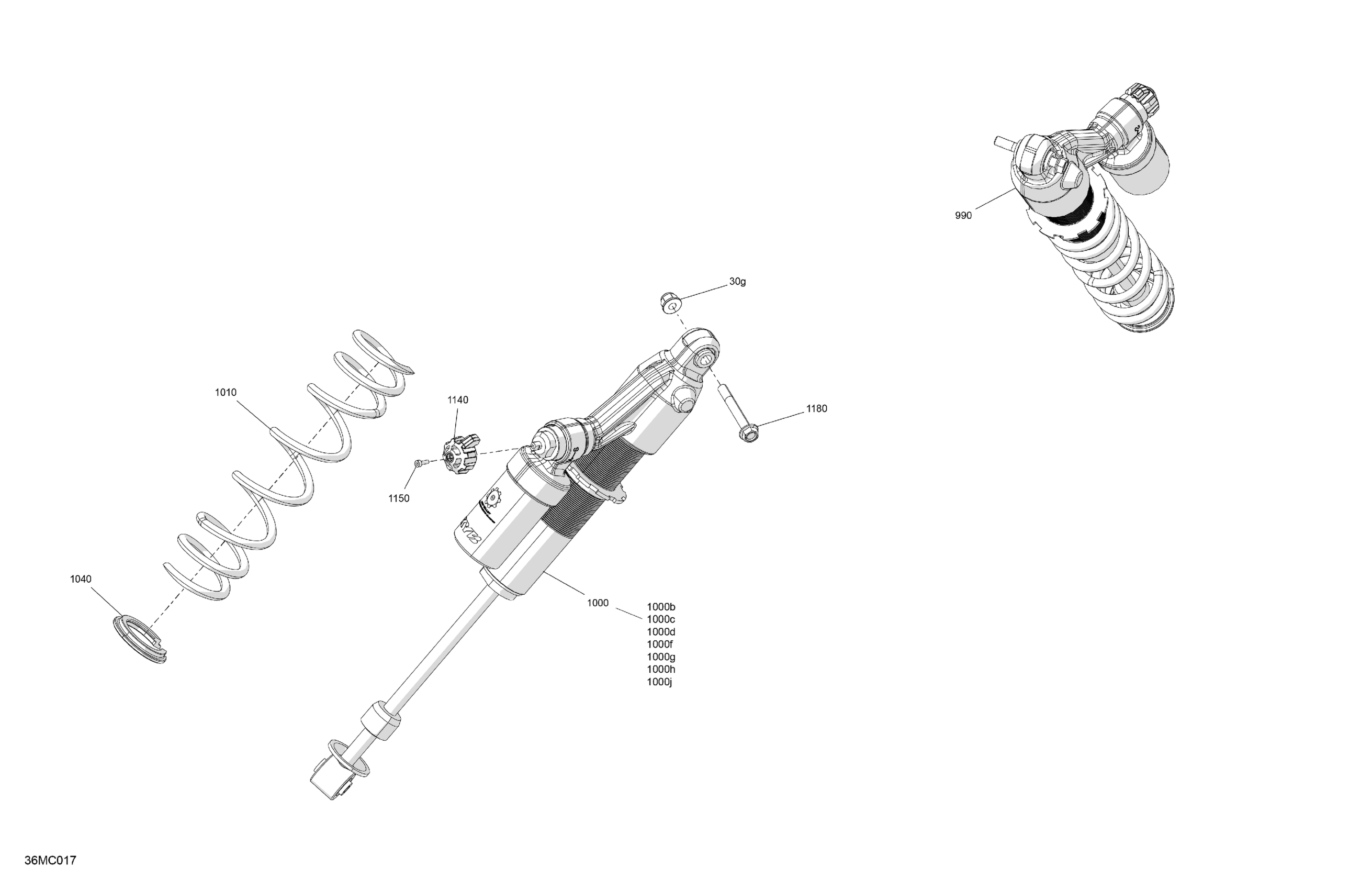

Ski-Doo 012 - RENEGADE 850 E-TEC - XRS - North America, 2023 05- Suspension - Front Shock Diagram

Description

Price

990

Front Shock | Includes 990 to 990g

505075168

$812.99

1000

Front Shock | Includes 1000 to 1000j

505075169

$812.99

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

O-Ring

505070400

$4.54

1000f

Screw | Not Shown

505070399

$4.12

1000g

O-Ring

415093804

$4.54

1000h

Circlip - Call your local BRP dealership

715900076

$4.12

1000j

Valve

503195958

$98.99

1010

Deep Black, Spring

505074309

$67.99

1040

Spring Stopper

503194270

$19.99

1140

Adjustment Button

503196209

$2.79

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

30g

Elastic Flange Nut M8

233281466

$1.01
