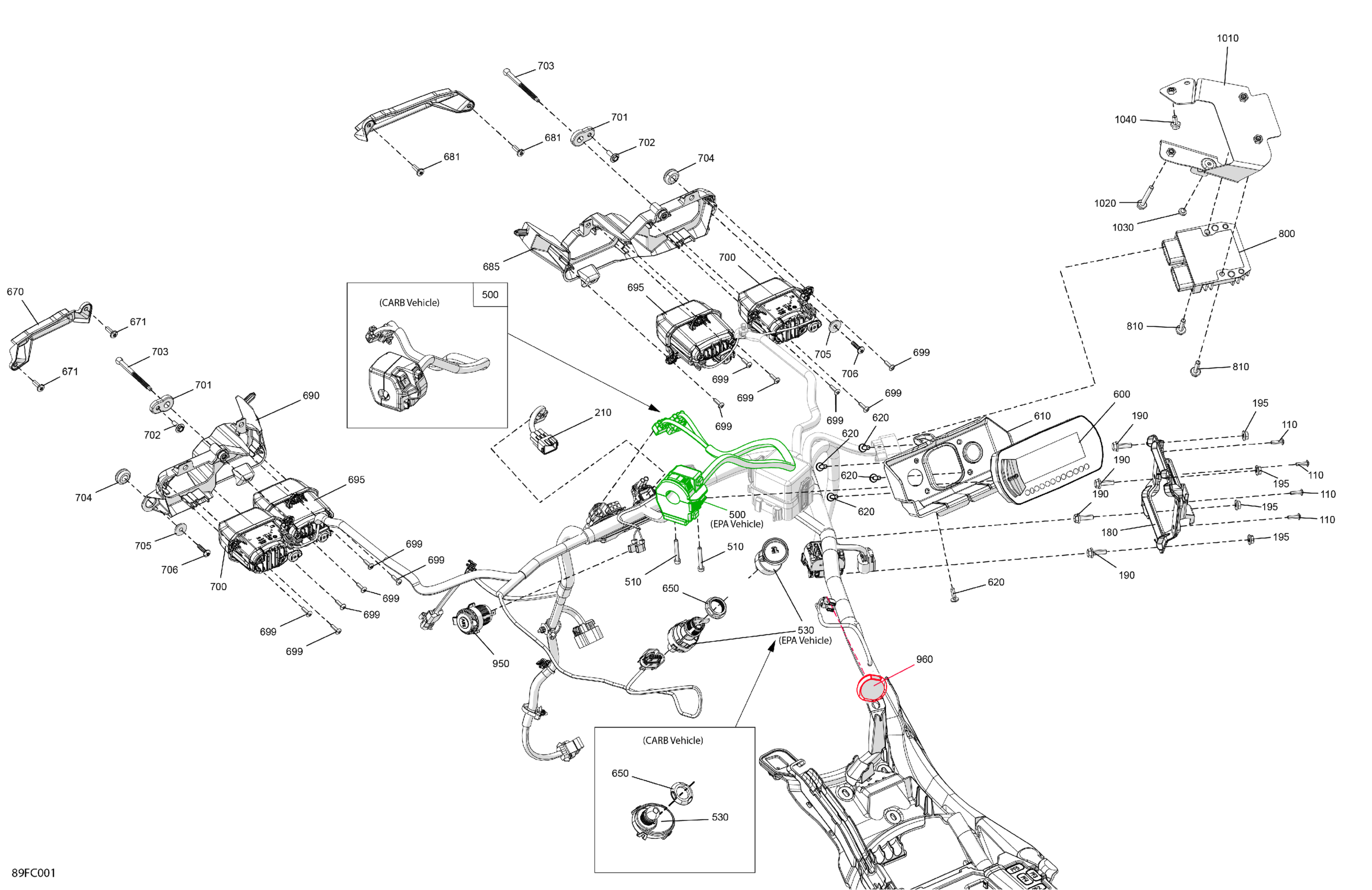

Can-Am Outlander MAX DPS 700 - 2023 Electric - Front Section Diagram

#

Description
Price

110

Torx-Truss Pt K40 X 16

250000759

$2.11

180

Muffler Support

710006328

$10.49

190

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

195

Hex. Flange Nut M6

233161414

$2.11

210

Switch Wiring Harness

710009366

$40.99

500

LH Front Switch Housing | CARB Vehicle

710006944

$289.99

500

Multifunction Switch

710008837

$80.49

510

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

530

Ignition Switch | Includes 530 to 530a

710008938

$63.49

535

Blank Ignition Key

715900934

$19.99

600

Multifunction Gauge Compact Mono

710008108

$409.99

610

Int Gauge Support

710007694

$6.09

620

Torx Screw K50 X 16

250000720

$1.69

650

Specialized Nut

278004274

$3.28

650

Specialized Nut

710007923

$2.11

670

LH Cap

705015024

$11.99

671

Torx Screw K50 X 16

250000720

$1.69

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Headlight Support

710008319

$47.99

690

LH Front Headlight Support

710008318

$47.99

695

HIgh Beam Light

710006910

$129.99

699

Torx-Truss Pt K40 X 16

250000759

$2.11

700

Low Beam Light

710008088

$139.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.11

703

Ajustment Screw

710005837

$6.35

704

Grommet

709000582

$4.69

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.69

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

810

Hex. Flange Screw M6 X 25

207562544

$1.69

950

DC Outlet

710001248

$37.99

960

Rubber Plug

710002858

$2.85

1010

Voltage Regulator Support

710006542

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.22

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.11
