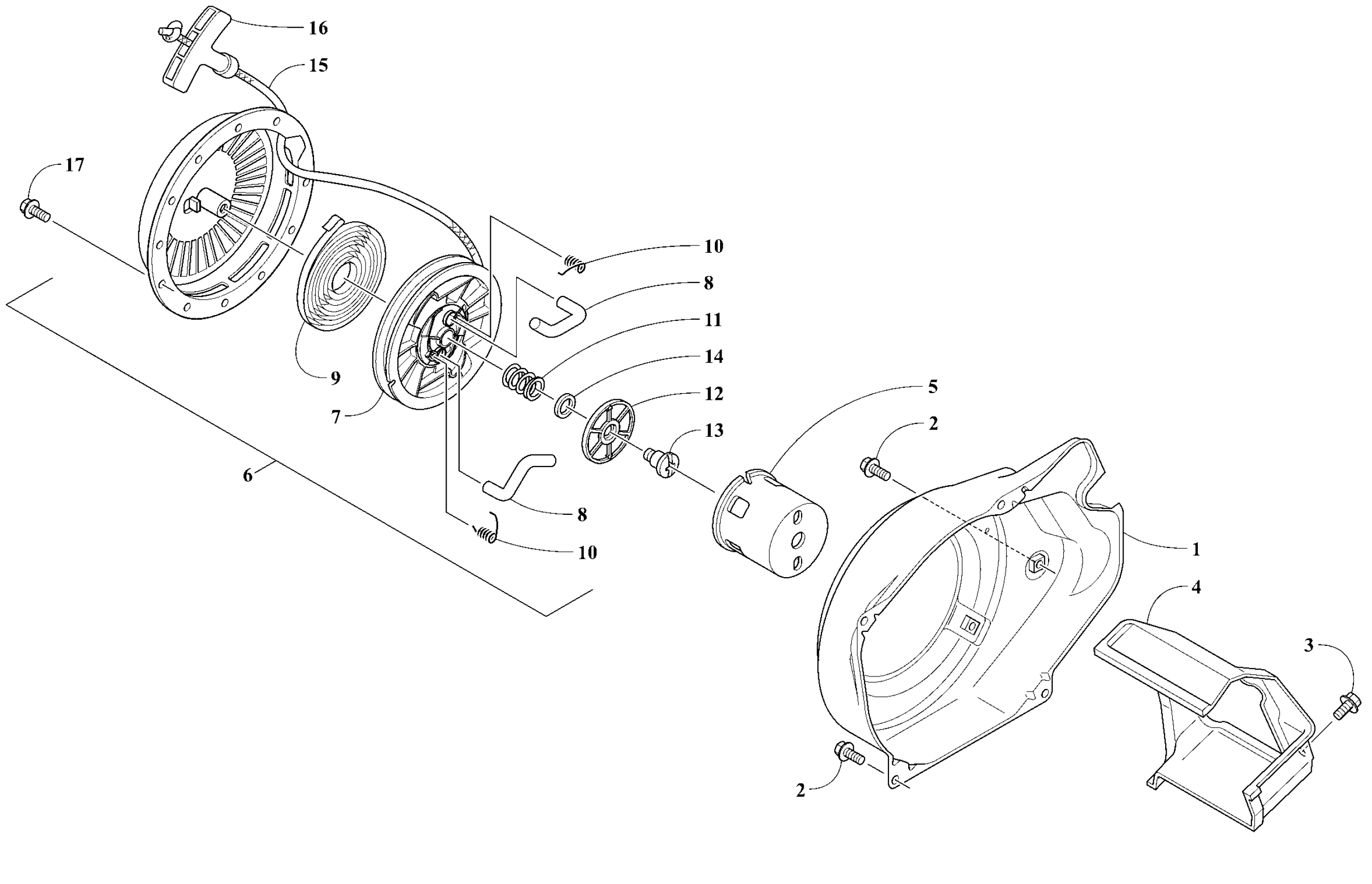

Ski-Doo 012 - MXZ 200 - North America, 2023 Engine - Recoil Starter and Air Shroud Diagram

Description

Price

Ventilation Cowling

3021-749

$79.99

Cap Screw

3021-628

$2.65

Cap Screw

3021-717

$3.29

Air Shroud

3020-052

$39.49

Strater Pulley

3021-763

$31.99

Rewing Starter Ass'y

3021-940

$191.49

Reel

3021-752

$40.49

Pawl Drive

3021-753

$13.83

Spiral Spring

3021-754

$32.99

Return Spring

3021-755

$8.83

Friction Spring

3021-756

$8.83

Drive Plate

3021-757

$16.49

Screw Shoulder

3021-758

$16.49

Thrust Washer

3021-759

$16.49

Starter Rope

3021-941

$31.99

Rope Grip

3021-761

$22.99

Cap Screw

3021-762

$2.44
