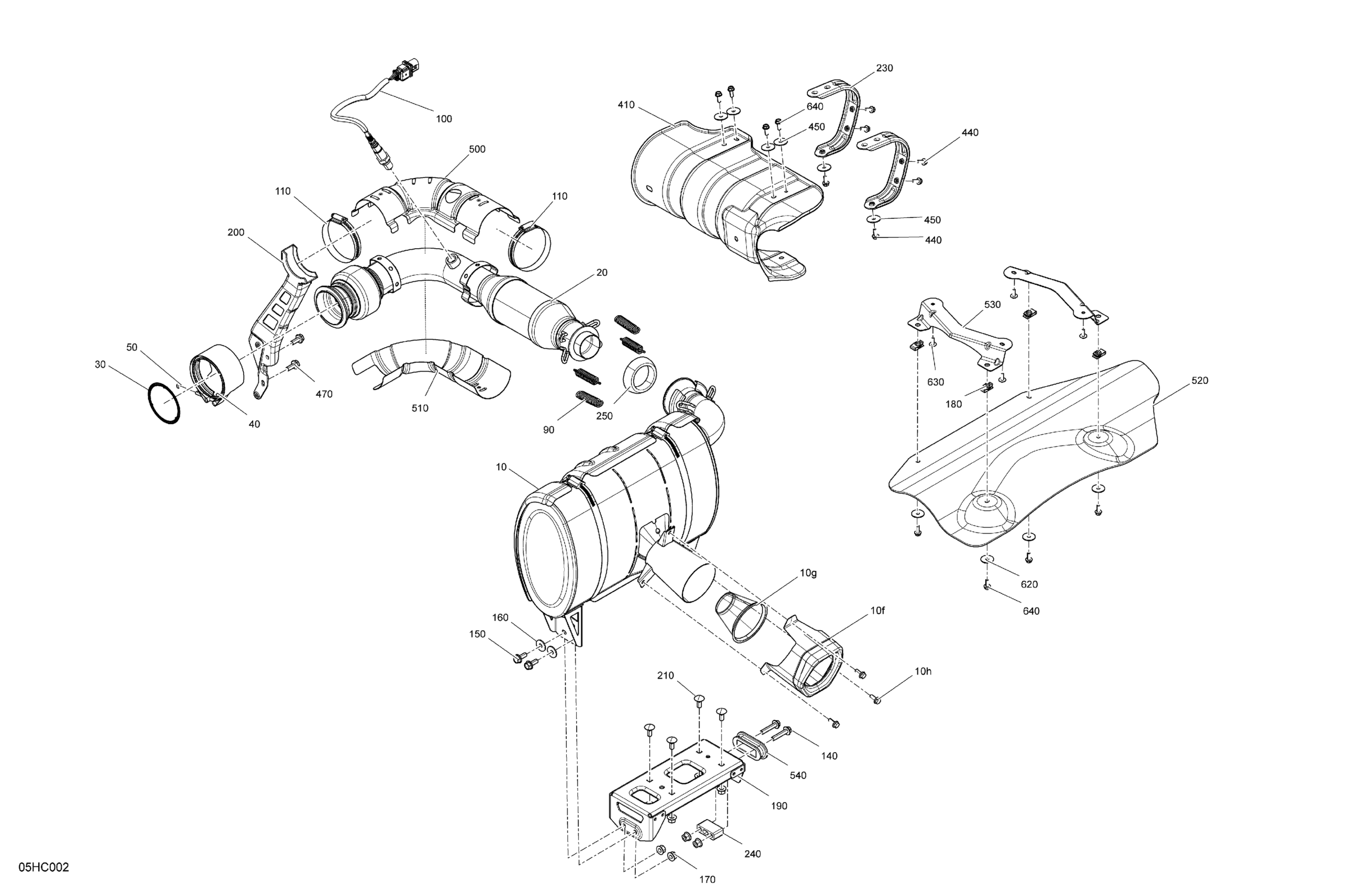

Can-Am Maverick Turbo RR - DS - 2023 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Muffler Ass'y | Includes 10 to 10h

707602827

$734.30

10f

Heat Shield | Includes 10f to 10f2

707602046

$27.58

10g

Spark Arrestor | Not Shown

707602087

$32.81

10h

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

20

Exhaut Pipe

707603425

$984.30

30

Seal

707601835

$35.04

40

Exhaust Clamp

707603418

$49.22

50

Nut

707602143

$5.52

90

Spring

707601834

$6.01

100

Oxygen Sensor

707602926

$129.32

110

Gear Clamp

293650255

$11.81

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682046

$1.76

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut

233081436

$1.63

180

Panel Nut M6 X 1.0

250100198

$1.73

190

Muffler Support

707601765

$27.58

200

Exhaust Mount | Includes 200 to 200c

707602815

$27.58

210

Carriage Bolt, M8 X 20

207782044

$1.56

230

C Support

707601896

$27.58

240

Muffler Stopper

707601897

$3.29

250

Gasket

707601908

$22.36

410

Lateral Heat Shield

707601768

$20.12

440

Hex. Flange Screw M6 X 12

210261250

$1.56

450

Washer | Not Shown

503193995

$4.25

470

Hex Screw Washer Head M8 X 20

207582054

$2.61

500

Upper Heat Shield

707601795

$24.60

510

Lower Heat Shield

707601796

$24.60

520

Heat Shield

707602771

$103.70

530

Support

707602773

$5.93

540

Rubber Stopper

707601845

$17.13

620

Washer

224060251

$0.55

630

Screw PT Type K-50 X 16

250000959

$1.74

640

Hex. Flange Screw M6 X 16

210261650

$1.22
