Description

Price

2000

Liquid Titan, LH Rear Door Panel

705016366

$214.99

2010

Liquid Titan, RH Rear Door

705016368

$149.99

2020

Door Support

705011187

$12.99

2020a

Weld Pin 8mm X 40mm

250000913

$2.00

2025

Hex Screw Washer Head M8 X 20

207582054

$3.17

2026

Flat Washer M8

234081430

$2.11

2030

Flat Washer 8 mm, Nylon

234081100

$1.39

2040

LH Latch

705013095

$43.99

2050

Belt

293850135

$14.99

2051

Pop Rivet 3/16"

293150103

$0.55

2052

Bushing | DS 650 X

293900104

$5.50

2070

LH Lateral Cover Panel Ass'y

715006612

$11.49

2075

Stainless Steel Flat Washer

234062670

$2.11

2080

Panel Nut M6 X 1.0

250100198

$2.11

2085

Torx Screw M6 X 45

250000748

$1.90

2086

Torx Truss Screw M6 X 16

250000721

$1.69

2090

Pop Rivet 3/16"

293150103

$0.55

2095

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2096

Pop Rivet 3/16"

293150103

$0.55

2097

Flat Washer

224061121

$0.53

2150

Door Belt

293850129

$16.49

2160

Pop Rivet 3/16"

293150103

$0.55

2300

Liquid Titan, RH Rear Door Panel

705016369

$214.99

2310

Liquid Titan, RH Rear Door

705016371

$149.99

2320

Door Support

705011187

$12.99

2320a

Weld Pin 8mm X 40mm

250000913

$2.00

2325

Hex Screw Washer Head M8 X 20

207582054

$3.17

2326

Flat Washer M8

234081430

$2.11

2330

Flat Washer 8 mm, Nylon

234081100

$1.39

2340

RH Latch

705013096

$43.99

2350

Belt

293850135

$14.99

2351

Pop Rivet 3/16"

293150103

$0.55

2352

Bushing | DS 650 X

293900104

$5.50

2370

RH Lateral Cover Panel Ass'y

715006613

$11.49

2375

Stainless Steel Flat Washer

234062670

$2.11

2380

Panel Nut M6 X 1.0

250100198

$2.11

2385

Torx Screw M6 X 45

250000748

$1.90

2386

Torx Truss Screw M6 X 16

250000721

$1.69

2390

Pop Rivet 3/16"

293150103

$0.55

2395

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2396

Pop Rivet 3/16"

293150103

$0.55

2397

Flat Washer

224061121

$0.53

2450

Door Belt

293850129

$16.49

2460

Pop Rivet 3/16"

293150103

$0.55

2500

Liquid Titan, LH Front Door Panel

705016361

$214.99

2510

Liquid Titan, LH Front Door

705016350

$149.99

2520

Door Support

705011187

$12.99

2520a

Weld Pin 8mm X 40mm

250000913

$2.00

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Pop Rivet 3/16"

293150103

$0.55

2552

Bushing | DS 650 X

293900104

$5.50

2570

LH Latch Cover

705013535

$39.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Pop Rivet 3/16"

293150103

$0.55

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Screw M6 X 20

250000722

$1.68

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2630

Flat Washer

224061121

$0.53

2640

Door Belt

293850129

$16.49

2650

Pop Rivet 3/16"

293150103

$0.55

2800

Liquid Titan, RH Front Door Panel

705016349

$214.99

2810

Liquid Titan, RH Front Door

705016352

$149.99

2820

Door Support

705011187

$12.99

2820a

Weld Pin 8mm X 40mm

250000913

$2.00

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Pop Rivet 3/16"

293150103

$0.55

2852

Bushing | DS 650 X

293900104

$5.50

2870

RH Latch Cover

705013536

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Pop Rivet 3/16"

293150103

$0.55

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Screw M6 X 20

250000722

$1.68

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2930

Flat Washer

224061121

$0.53

2940

Door Belt

293850129

$16.49

2950

Pop Rivet 3/16"

293150103

$0.55

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4100

LH Central Lateral Panel

705009513

$67.99

4200

Deep Black, RH Central Body Panel

705017555

$73.99

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4250

LH Rear Central Lateral Panel

705015741

$73.99

4260

RH Rear Central Lateral Panel

705015742

$73.99

4270

Pop Rivet 3/16”

293150108

$1.19

4280

Insert

705016606

$2.79

4290

Torx Screw M6 X 20

250000722

$1.68

4300

LH Rear Lateral Panel

705010676

$119.99

4400

Deep Black, RH Rear Lateral Panel

705010677

$119.99

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4420

Panel Nut M6 X 1.0

250100198

$2.11

4610

Torx Screw M6 X 20

250000722

$1.68

4630

Panel Nut M6 X 1.0

250100198

$2.11

4640

Stainless Steel Flat Washer

234062670

$2.11

4650

Support Plate

705003841

$0.99

4660

Torx Screw K50 X 16

250000720

$1.69

4900a

LH Central Cage Trim

705015489

$35.99

4900b

LH Central Cage Trim

705014860

$35.99

4900c

RH Central Cage Trim

705015490

$35.99

4900d

RH Central Cage Trim

705014862

$35.99

4900e

Torx Screw M6 X 20

250000722

$1.68

4900f

Panel Nut M6 X 1.0

250100198

$2.11

5200

Liquid Titan, LH Central Latch Trim

705016580

$294.99

5210

Torx Screw M6 X 20

250000722

$1.68

5220

Insert

705016606

$2.79

5230

Pop Rivet 3/16"

293150103

$0.55

5300

Liquid Titan, RH Central Latch Trim

705016581

$294.99

5310

Torx Screw M6 X 20

250000722

$1.68

5320

Insert

705016606

$2.79

5330

Pop Rivet 3/16"

293150103

$0.55

7300a1

LH Door Panels

705010271

$110.99

7300a2

LH Lower Door Decal

704907650

$24.49

7300a3

Door Seal

705012018

$19.99

7300b1

RH Door Panels

705010272

$110.99

7300b2

RH Lower Door Decal

704907651

$24.49

7300b3

Door Seal

705012018

$19.99

7300c

Black, LH Door Frame

705012750

$129.99

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$129.99

7300e1

Torx-Truss M/S M6 X 80

250000902

$2.79

7300e2

Hex. Flange Elastic Nut M6

233261494

$1.58

7300e3

Offset Washer

705202223

$4.14

7300e4

Torx Truss Screw M6 X 50

250000749

$3.17

7300e5

Stainless Steel Flat Washer

234062670

$2.11

7300e6

Neoprene Seal (1PAC=3M)

219704364

$27.49

7300e7

Neoprene Seal (1PAC=3M)

219704364

$27.49

7400a

LH Rear Door Panel Ass'y | Includes 7400a to 7400a2

705011468

$132.49

7400a1

Door Seal

705012018

$19.99

7400b

RH Rear Door Panel Ass'y | Includes 7400b to 7400b2

705011469

$132.49

7400b1

Door Seal

705012018

$19.99

7400c

Deep Black, Door Rigid Lower Rear Kit

715006209

Unavailable

7400d

Deep Black, Door Rigid Lower Rear Kit

715006209

Unavailable

7400e1

Torx-Truss M/S M6 X 80

250000902

$2.79

7400e2

Hex. Flange Elastic Nut M6

233261494

$1.58

7400e3

Offset Washer

705202223

$4.14

7400e4

Torx Truss Screw M6 X 50

250000749

$3.17

7400e5

Stainless Steel Flat Washer

234062670

$2.11

7400e6

Neoprene Seal (1PAC=3M)

219704364

$27.49

7400e7

Torx Truss Screw M6 X 25

250000807

$2.11

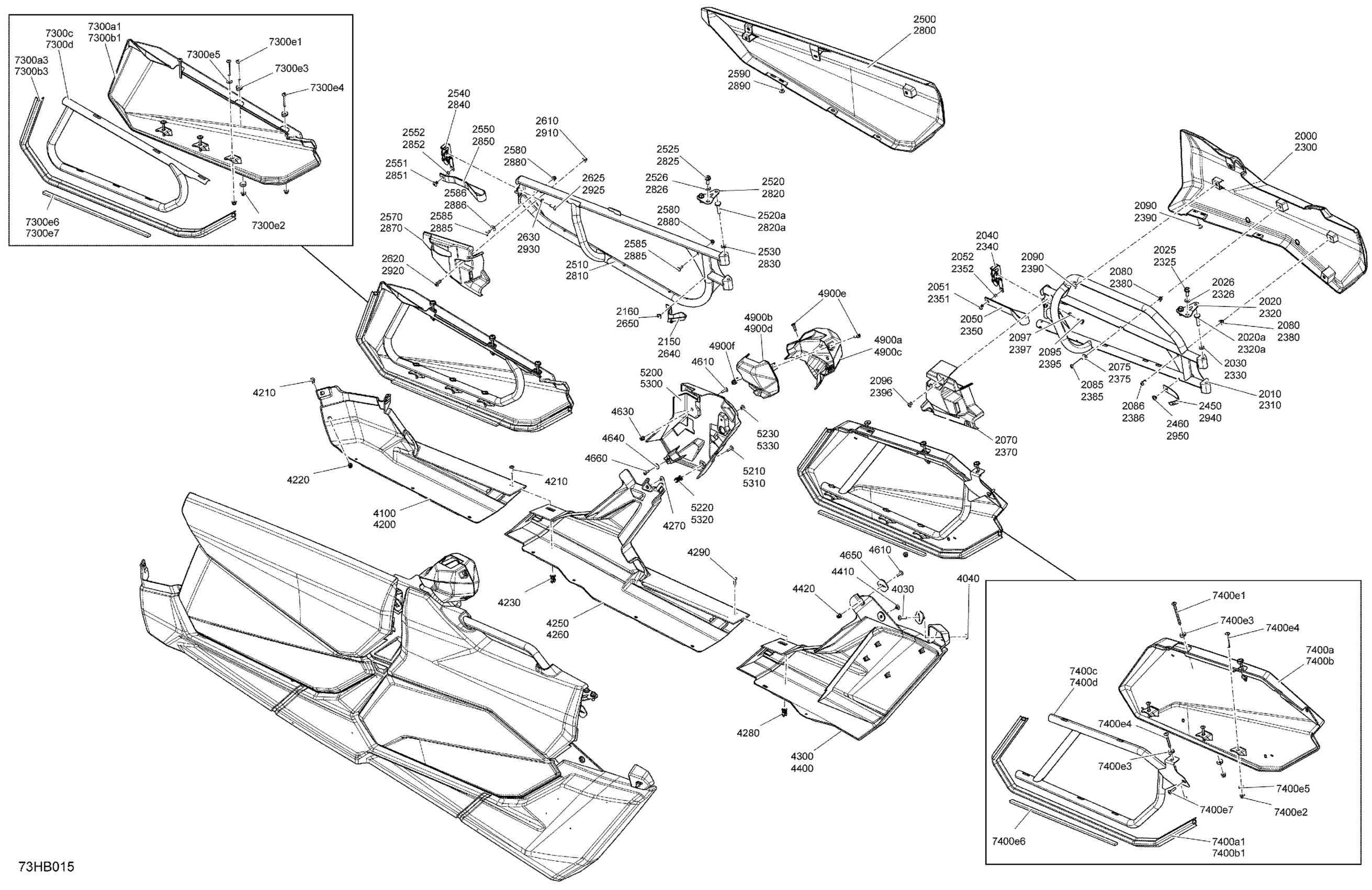

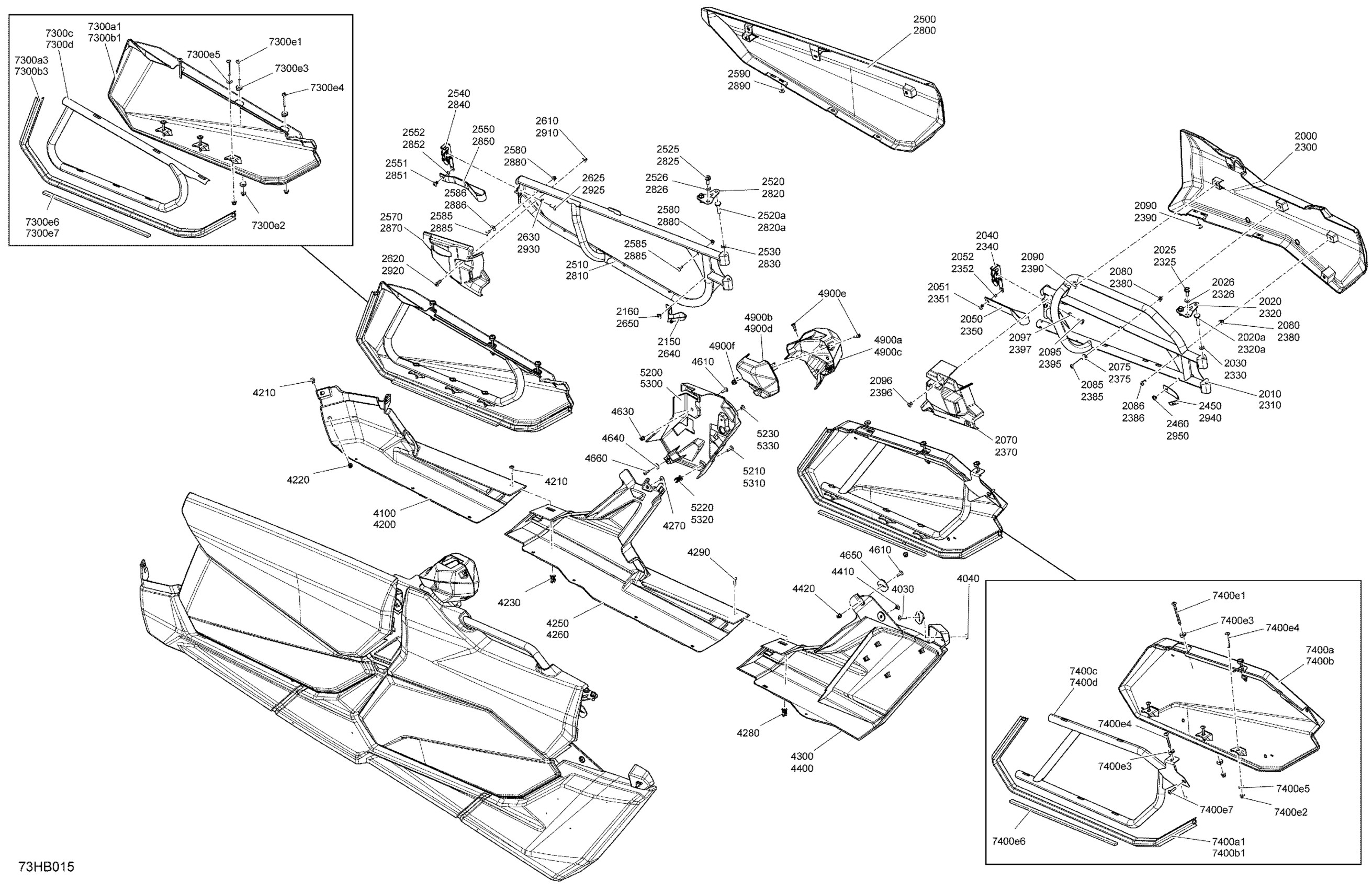

Can-Am Maverick MAX Turbo RR - XMR - 2022 Body - Doors Diagram

Liquid Titan, LH Rear Door Panel

Liquid Titan, RH Rear Door

Door Support

Weld Pin 8mm X 40mm

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

LH Lateral Cover Panel Ass'y

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Torx Screw M6 X 45

Torx Truss Screw M6 X 16

Pop Rivet 3/16"

Torx Screw M6 X 20, Scotch Grip

Pop Rivet 3/16"

Flat Washer

Door Belt

Pop Rivet 3/16"

Liquid Titan, RH Rear Door Panel

Liquid Titan, RH Rear Door

Door Support

Weld Pin 8mm X 40mm

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

RH Lateral Cover Panel Ass'y

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Torx Screw M6 X 45

Torx Truss Screw M6 X 16

Pop Rivet 3/16"

Torx Screw M6 X 20, Scotch Grip

Pop Rivet 3/16"

Flat Washer

Door Belt

Pop Rivet 3/16"

Liquid Titan, LH Front Door Panel

Liquid Titan, LH Front Door

Door Support

Weld Pin 8mm X 40mm

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

LH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Torx Screw M6 X 20, Scotch Grip

Flat Washer

Door Belt

Pop Rivet 3/16"

Liquid Titan, RH Front Door Panel

Liquid Titan, RH Front Door

Door Support

Weld Pin 8mm X 40mm

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

RH Latch Cover

Panel Nut M6 X 1.0
