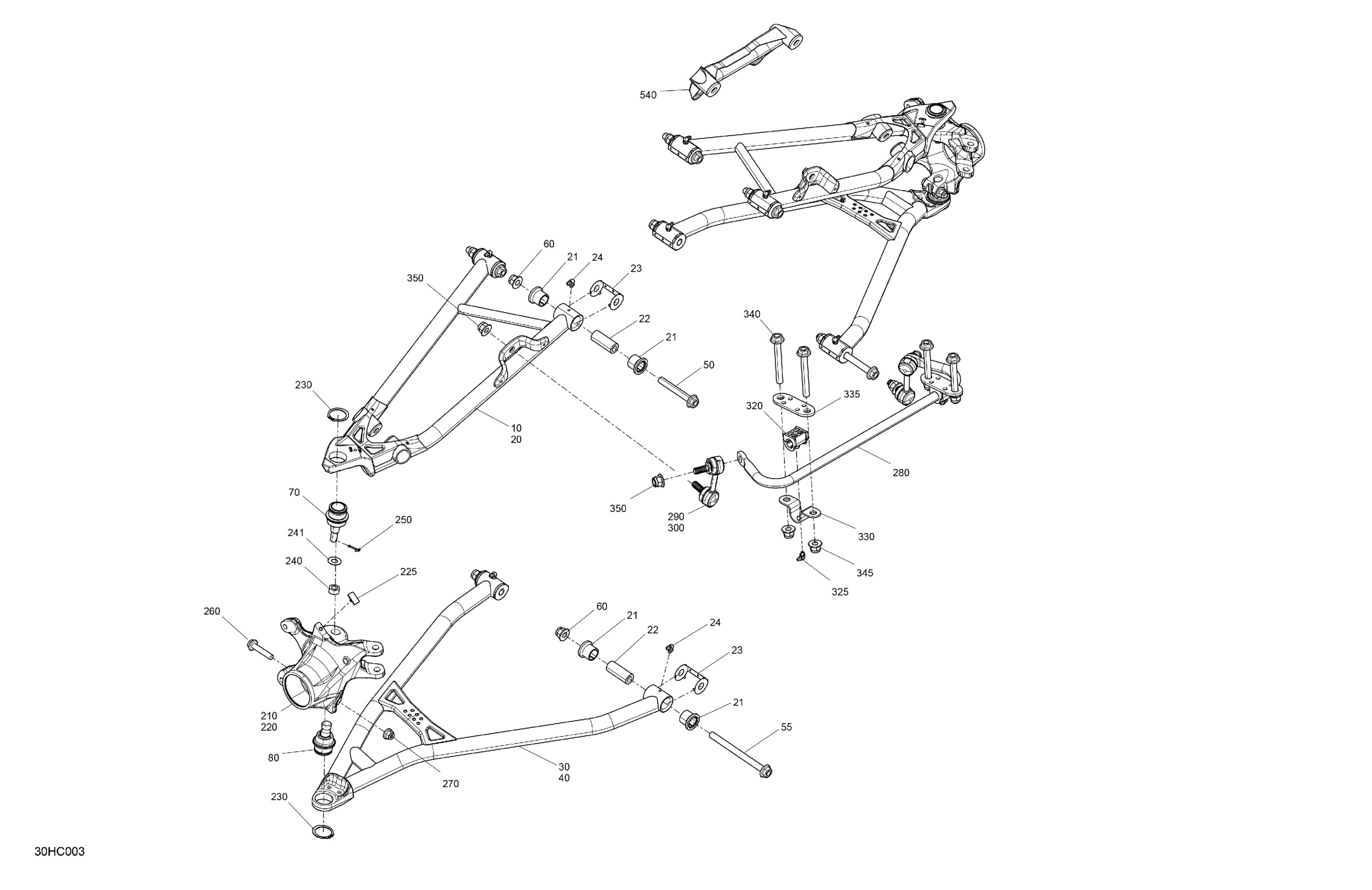

Can-Am Maverick MAX Turbo RR - XDS - 2023 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

703501047

$266.39

10

Magma Red, LH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204275.

715011478

$244.75

20

Deep Black, RH Upper Suspension Arm

703501050

$187.28

20

Magma Red, RH Upper Suspension Arm | Macchiato
Satin Model

706204277

$244.75

21

Suspension Arm Bushing

706204409

$8.40

22

Interior Bushing

706202257

$7.27

23

Wear Plate

706202300

$1.69

24

Grease Fitting 90°

293550056

$1.04

30

Deep Black, LH Front Suspension Arm Ass'y With Balljoint This part replaces 706202919.

715010612

$241.76

40

Deep Black, RH Front Suspension Arm Ass'y With Balljoint This part replaces 706202920.

715010611

$241.76

50

Flange Screw M12 X 85

250000859

$3.95

55

Flange Screw M12 X 145

250000861

$5.47

60

Elastic Flange Nut M12

250001195

$2.15

70

Ball Joint

706203084

$34.30

80

Ball Joint

706202045

$34.30

210

LH Front Knuckle

706204785

$187.28

220

RH Front Knuckle

706204786

$138.03

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.48

240

Hex Nut M12

250100239

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

260

Hex.Flange Screw Din.6921

207605046

$3.95

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Stabilizer Bar Ass'y

706203953

$91.01

290

LH Stabilizer Bar Link

706203611

$62.66

300

RH Stabilizer Bar Link

706203612

$62.66

320

Stabilizer Bar Bushing

706204564

$3.58

325

Grease Fitting 90°

293550056

$1.04

330

Clamp

706202460

$6.19

335

Support Plate

706202551

$4.52

340

Hex. Flange Screw M12 X 95

250000876

$5.54

345

Elastic Flange Nut M12

250001195

$2.15

350

Elastic Flange Nut M12

250001195

$2.15

540

Black, Link

706202708

$49.97

540

Macchiatio, Front Shock Reinforcement

706204492

$47.73
