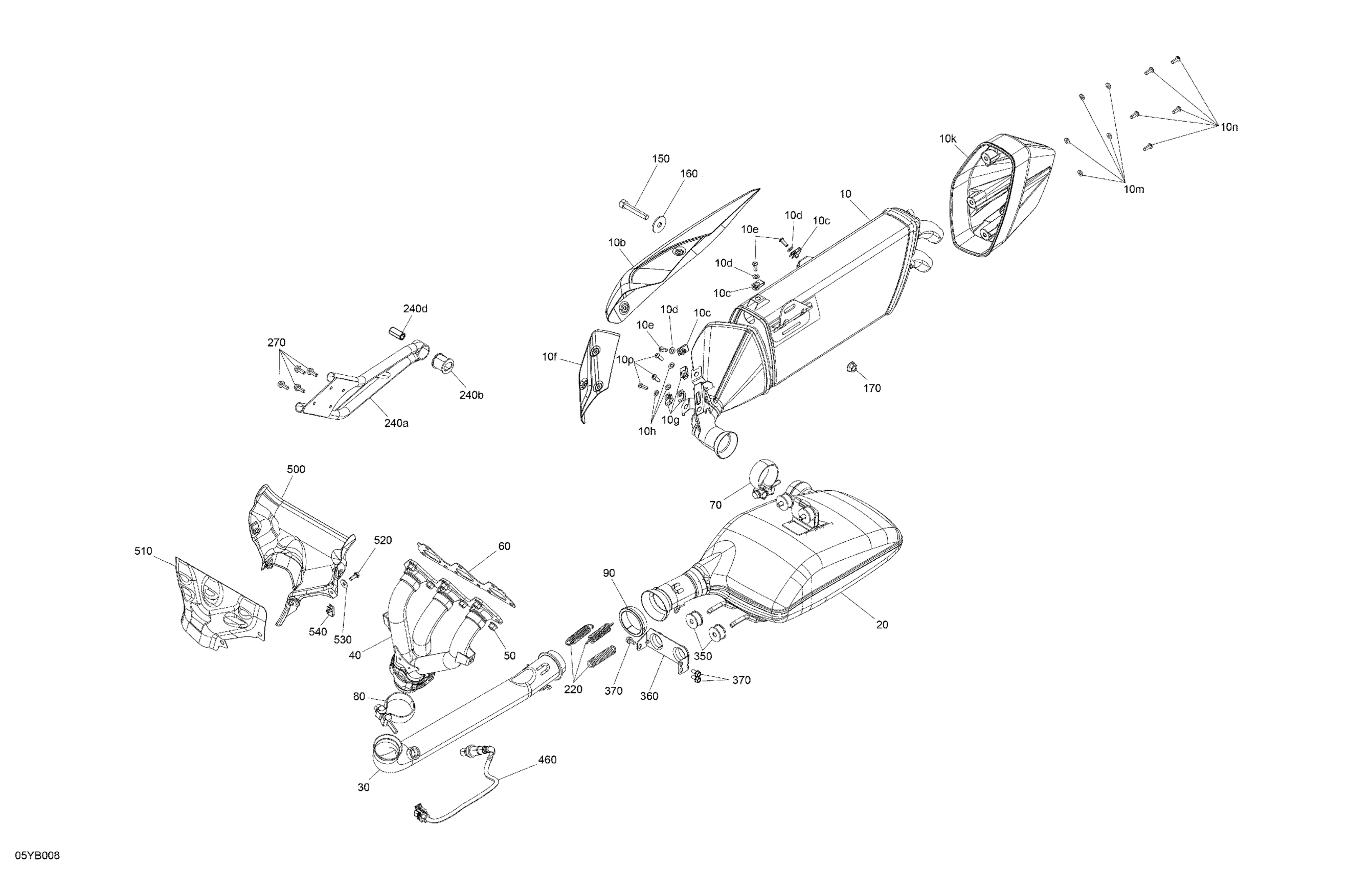

Can-Am F3 T - Pearl White, 2022 Engine - Exhaust Diagram

#

Description
Price

10

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

219800442

$954.00

10b

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

10c

Panel Nut M6 X 1.0

250100198

Unavailable

10d

Black, Flat Washer 6 mm

234061670

$1.00

10e

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

10f

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$27.00

10g

Panel Nut M6 X 1.0

250100198

Unavailable

10h

Black, Flat Washer 6 mm

234061670

$1.00

10p

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

10k

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

10m

Black, Flat Washer 6 mm

234061670

$1.00

10p

Black, Socket Screw, M6 X 16 S.Grip

250000616

Unavailable

20

Primary Exhaust Muffler | Includes 20 to 20y

707603359

$1,197.00

30

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$339.00

40

Exhaust Manifold | Includes 40 to 40j

707601922

$770.00

50

Hex. Flange Nut

233081436

Unavailable

60

Exhaust Seal

707601985

$8.00

70

Exhaust Clamp

707600980

Unavailable

80

Exhaust Clamp

707600980

Unavailable

90

Exhaust Gasket

514054174

Unavailable

150

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

Unavailable

160

Washer 10 mm

506150000

Unavailable

170

Hex. Flange Nut M10

233101600

Unavailable

220

Spring

415107100

Unavailable

240a

Muffler Support | Includes 240a to 240a2

707601683

$68.00

240b

Anti-Vibration Rubber

293830162

$13.00

240d

Bushing | Includes 240d to 240d1

503189282

Unavailable

270

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

350

Anti-Vibration Rubber

707600702

Unavailable

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

370

Hex. Flange Screw M6 X 12

210261250

Unavailable

460

Oxygen Sensor

707600872

Unavailable

500

Heat Shield interior

707603641

$54.00

510

Heat Shield Exterior

707603642

$54.00

520

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

530

Flat Washer M6, Stainless

234062600

Unavailable

540

Panel Nut M6 X 1.0

250100198

Unavailable
