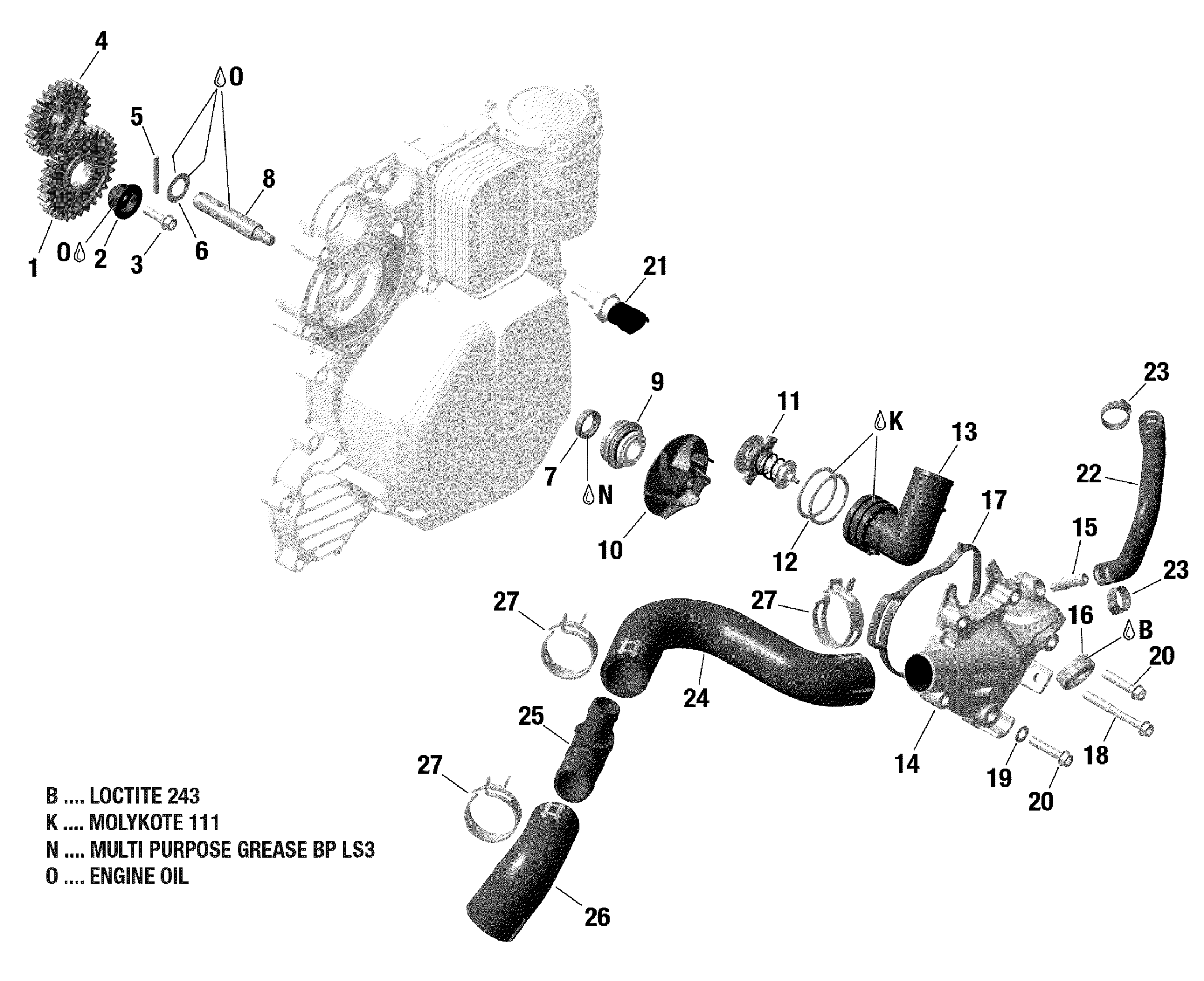

Ski-Doo EXPEDITION SWT 900 ACE TURBO - 2022 Rotax - Engine Cooling Diagram

#

Description
Price

1

Idle Gear, 31 Teeth

420835067

$23.49

2

Spacer

420947394

$24.99

3

Torx Flange Screw M6 X 20

420440207

$3.06

4

Water Pump Gear

420835230

$7.65

5

Needle Pin

420232431

$4.39

6

Thrust Washer

420827261

$7.51

7

Oil Seal

420931802

$7.65

8

Waterpump Shaft

420820150

$25.99

9

Seal

420850946

$33.99

10

Water Impeller

420822750

$19.49

11

Thermostat

420822655

$33.99

12

Water Pump Housing O-Ring

420950896

$11.59

13

Thermostat cover

420922158

$9.27

14>17

Water Pump Housing | Includes no. 14-17

420922300

$72.99

15

Hose Nipple

420924925

$8.00

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Water Pump Housing Gasket

420431682

$19.49

18

Torx Flange Screw M6 X 55

420440702

$3.06

19

Sealing Washer

404146600

$2.97

20

Torx Flange Screw M6 X 30

420440647

$2.00

21

Temperature Sensor

278002895

$39.99

22

Hose

420822895

$24.99

23

Clamp

420853308

$5.39

24

Molded Hose

420201502

$21.99

25

T Fitting

420660551

$6.32

26

Molded Hose

420201503

$11.60

27

Self Compensating Clamp 35

420951350

$5.61
