Description

Price

10aa

Fixed Flange Ass'y

417224210

$209.99

10ab

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224767

$349.99

10abb

Bushing

293250389

$21.99

10abc

Circlip

293370137

$3.28

10abd

Back Torque Roller

417224153

$16.99

10abf

Pulley Roller Ext

417224916

$31.99

10abg

Pin

417224510

$9.95

10abh

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10ac

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

10acb

Stopper Spring

417224910

$10.16

10acc

Spring Guide

417224614

$10.49

10acd

Roller Pulley Ass'y

417224947

$35.99

10ace

Axle - 10mm

417224204

$10.49

10acf

Thrust Washer

417224868

$2.32

10acg

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224168

$28.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10e

Ramp 880 Ass'y

417224290

$31.99

10f

Pin Ramp

417224694

$10.49

10g

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10h

Coupling Flange

417224680

$45.99

10j

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127645

$459.99

100ac

Pulley Roller

417127016

$24.49

100ad

Pivot Stud

417127294

$14.49

100ae

Lock Washer 8 mm

250200009

$2.11

100af

Spring Pin

250400070

$2.00

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100bb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100bc

Circlip

293370049

$4.99

100c

Cam Driven Pulley Ass'y | Includes 100c to 100c3

417127756

$132.99

100cb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100cc

Circlip

293370049

$4.99

100d

Blue Spring

417127118

$44.49

100e

Swivel Abutment

417127116

$9.39

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100g

Calibration Ass'y

415129604

$21.49

100h

Socket Screw M5 X 25

250000981

$1.68

100j

Flat Washer M5

234051410

$0.53

100k

Elastic Stop Nut M5

232551414

$0.87

100m

Washer

417127155

$8.26

100n

Ball Bearing

504152574

$35.99

200

Drive Belt

417300571

$239.99

300

Belt Guard

417300479

$77.99

330

Front Retaining Hook

417300525

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Cooling Duct

417300557

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

450

Front Guard Support

417300583

$14.49

480

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

500

Rear Guard Support

417300633

$13.99

510

Hex. Flange Screw M6 X 20

207562056

$2.11

520

Hair Pin

114045200

$11.11

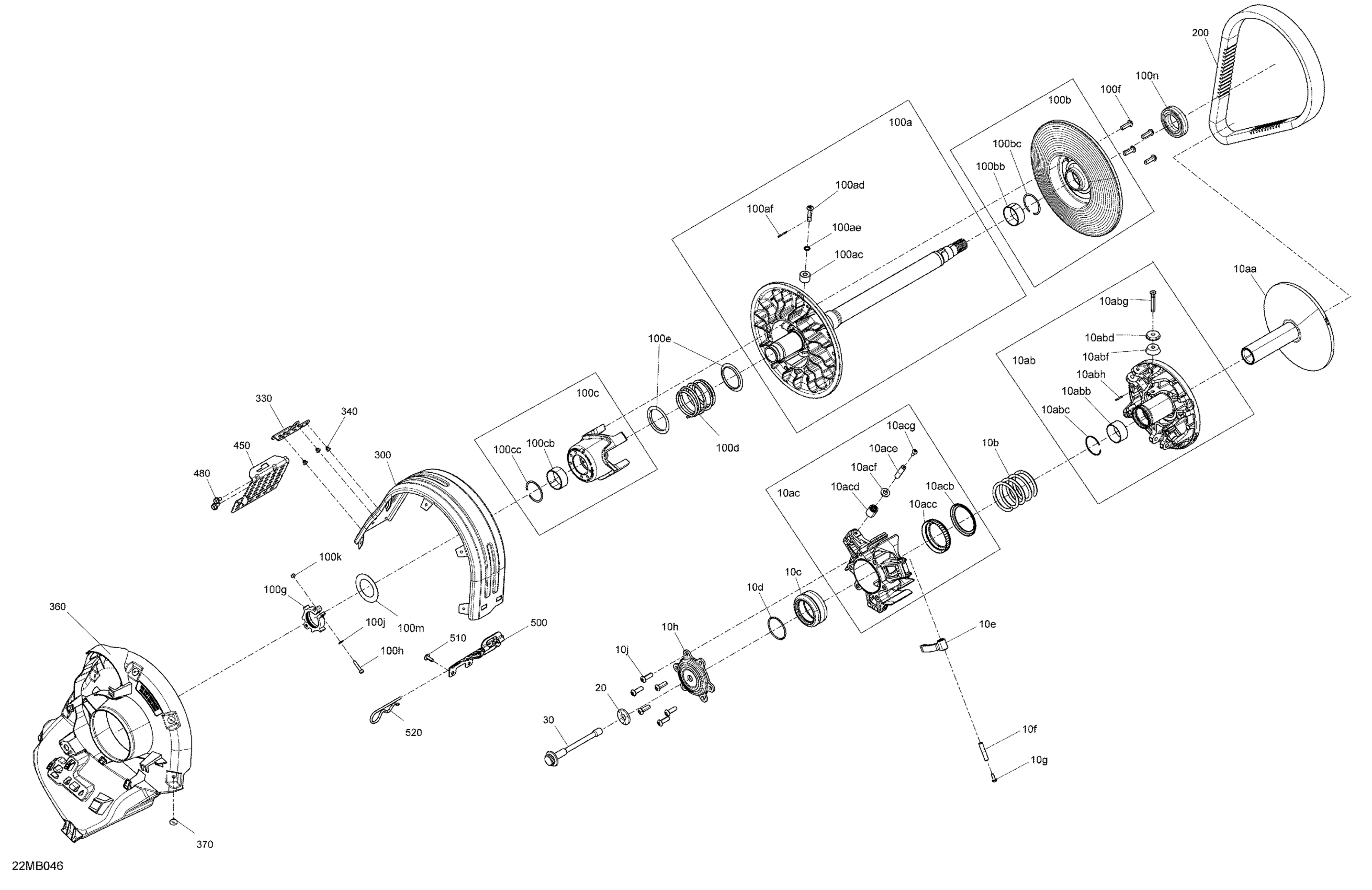

Ski-Doo EXPEDITION SWT 900 ACE TURBO - 2022 Drive - Pulley Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

Bushing

Circlip

Back Torque Roller

Pulley Roller Ext

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Stopper Spring

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp 880 Ass'y

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

Coupling Flange

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Fixed Flange Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Driven Pulley Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Blue Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Cooling Duct

Pop Rivet 3/16"

Front Guard Support

Flange Screw M6 X 10, Scotch Grip

Rear Guard Support

Hex. Flange Screw M6 X 20

Hair Pin
