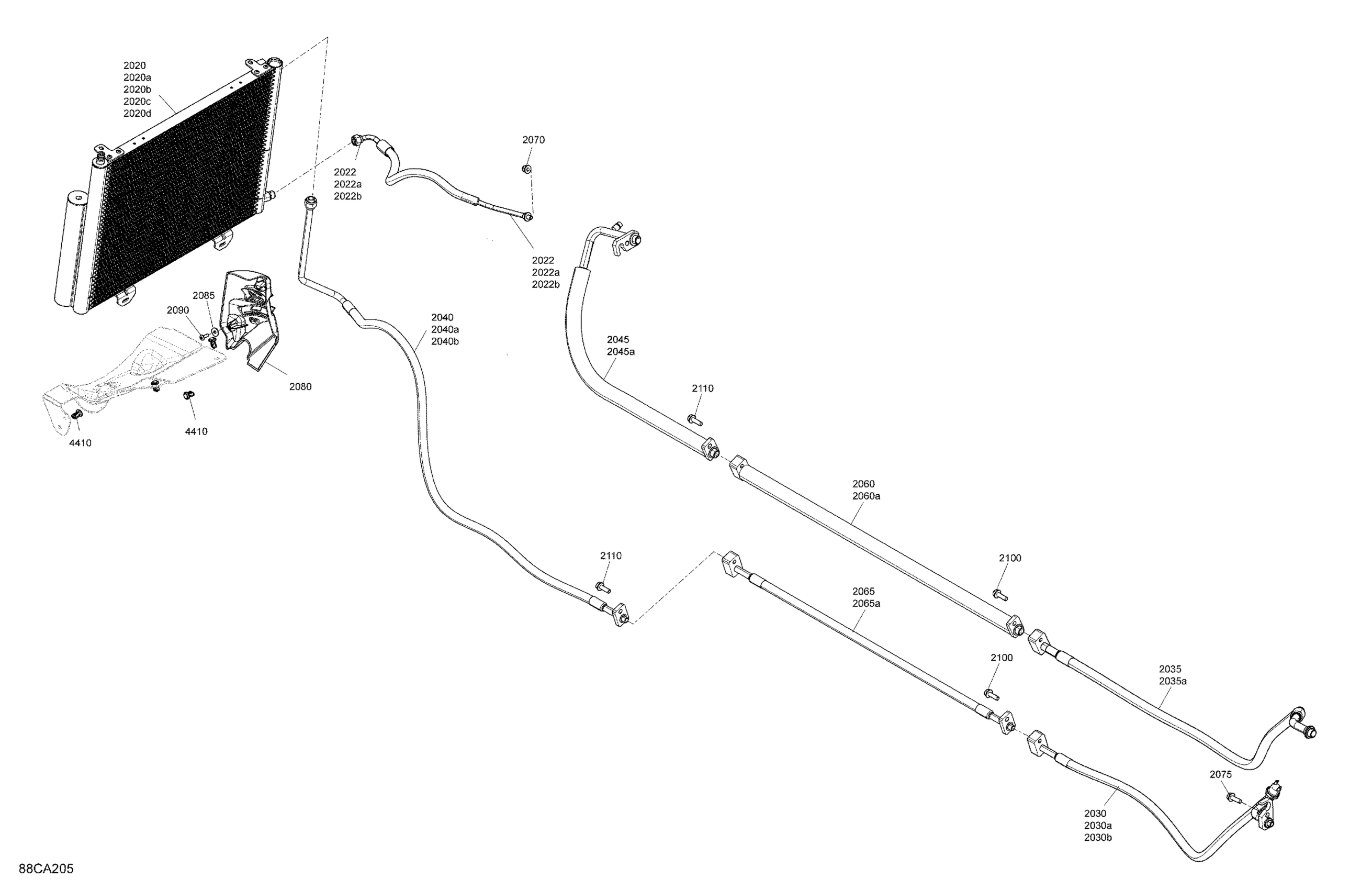

Can-Am Defender MAX HD10 - LTD CAB - 2021 Body - Enclosure Cab - Air Conditioner Condenser Diagram

Description

Price

2020

Condenser | Includes 2020 to 2020d

520001931

$692.28

2020a

Plastic Cap

715900678

$7.60

2020b

O-Ring

715900671

$2.31

2020c

Dessicant Cartridge

715900672

$46.12

2020d

Plug

715900679

$27.66

2022

Hose | Includes 2022 to 2022b

705800531

$124.58

2022a

Sealing Washer #6

715900665

$10.14

2022b

O-Ring | Not Shown

715900687

$15.22

2030

Compressor Hose | Includes 2030 to 2030b

705800521

$147.66

2030a

Sealing Washer #8

715900666

$10.14

2030b

Pressure Switch

715900673

$23.05

2035

Compressor Hose | Includes 2035 to 2035a

705800522

$147.66

2035a

Sealing Washer #12

715900667

$10.14

2040

Compressor Hose | Includes 2040 to 2040b

705800523

$147.66

2040a

O-Ring

715900669

$27.66

2040b

Sealing Washer #8

715900666

$10.14

2045

Compressor Hose | Includes 2045 to 2045a

705800524

$147.66

2045a

Sealing Washer #12

715900667

$10.14

2060

Compressor Hose | Includes 2060 to 2060a

705800527

$147.66

2060a

Sealing Washer #12

715900667

$10.14

2065

Compressor Hose | Includes 2065 to 2065a

705800528

$147.66

2065a

Sealing Washer #8

715900666

$10.14

2070

Hex. Elastic Flange Nut M8

233281416

$1.25

2075

Hex. Flange Screw M8 X 25

207682534

$0.90

2080

Hose Support

705800779

$14.37

2085

Stainless Steel Flat Washer

234062670

$1.74

2090

Torx Screw K50 X 16

250000720

$1.39

2100

Hex. Flange Screw M8 X 25

207682534

$0.90

2110

Hex. Flange Screw M8 X 25

207682534

$0.90

4410

Tuflok Plastic Rivet

293150230

$1.21
