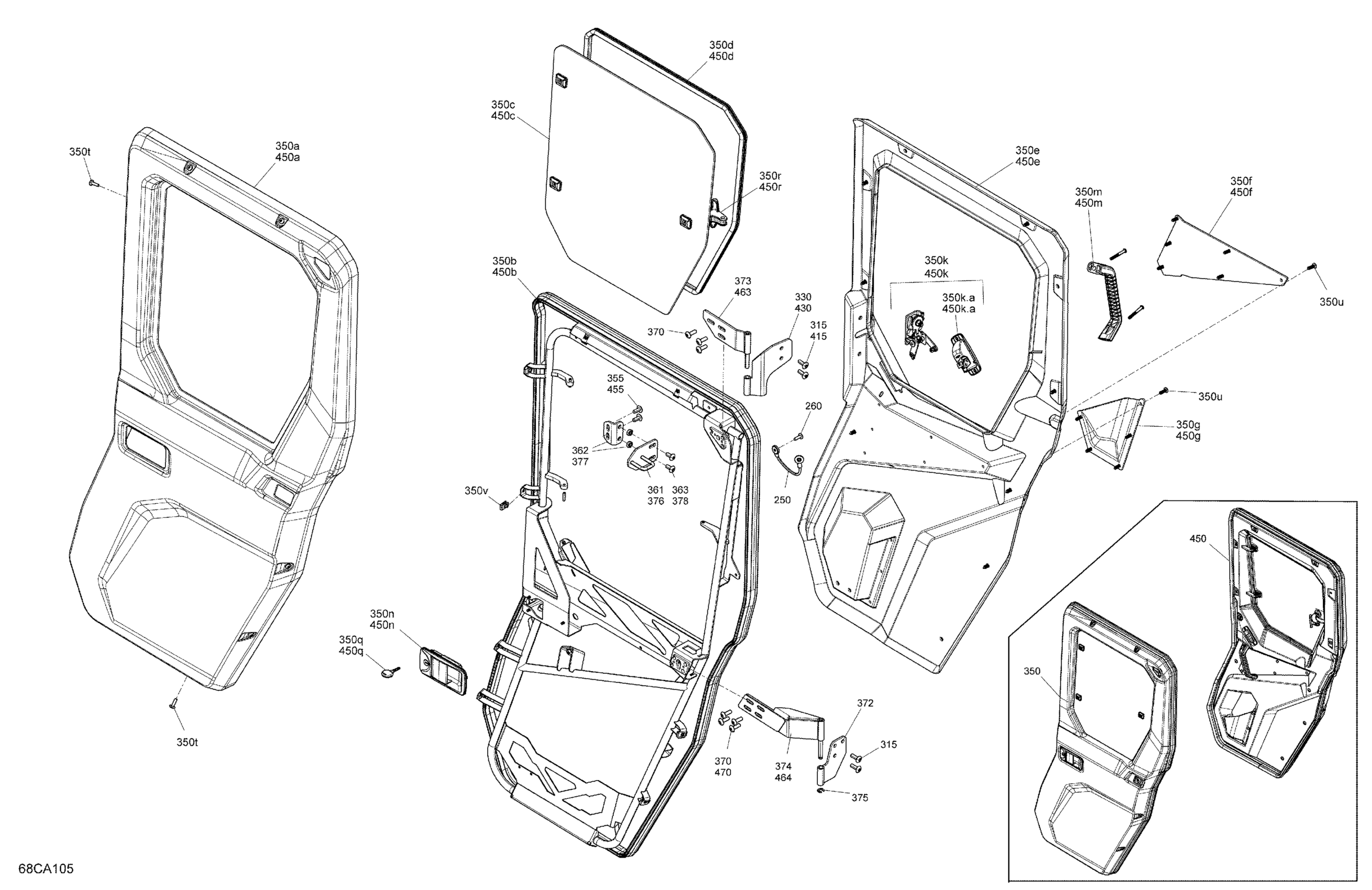

Can-Am Defender MAX HD10 - LTD CAB - 2021 Body - Doors - Rear Section Diagram

#

Description
Price

160

LH Door Panel Kit

715006687

$229.99

160

RH Door Panel Kit

715006689

$229.99

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$21.99

260

Torx Screw M6 X 20

250000722

$1.68

315

Torx Truss M8 X 25

250000874

$2.11

330

LH Upper Female Door Hinge

705800342

$43.99

350

LH Rear Rigid Door Ass'y | Includes 350 to 350u

705800476

$3,489.99

350a

LH Exterior Panel

705800598

$1,369.99

350b

Seal 705800290 - 5000 MM

705800289

$229.99

350c

LH Sub-Ass'y, Window

705800233

$559.99

350d

Seal 705800298 - 2200 MM

705800297

$104.99

350e

LH Routed Inner Door

705800235

$1,239.99

350f

LH Interior Door Trim

705800600

$409.99

350g

LH Rear Door Pocket

705800599

$419.99

350j

Cable Ass', Exterior Latch

705800241

$159.99

350k

LH Interior Latch Kit

703501002

$209.99

350k.a

Inner Paddle Latch | Not shown

705800019

Unavailable

350m

LH Interior Handle

705800243

$119.99

350n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

350p

Cable Ass'y, Interior Latch

705800242

$159.99

350q

Key Set

705800184

$25.99

350r

Window Hardware Kit

703500983

$244.99

350b

Seal 705800290 - 5000 MM

705800289

$229.99

350t

Torx Screw M6 X 20

250000712

$2.11

350u

Plastic Dart

705009405

$1.99

350v

Panel Nut M6 X 1.0

250100198

$2.11

355

Torx Truss M/S M8 X 20

250000953

$2.11

361

Rear Door Striker

705800520

$51.99

362

Rear Striker Support

705800353

$18.99

363

Torx Truss M/S M8 X 20

250000953

$2.11

370

Torx Truss M8 X 25

250000874

$2.11

372

Lower Female Door Hinge

705800482

$23.49

373

LH Upper Male Door Hinge

705800340

$43.99

374

NEEDS DESCRIPTION

705801202

$119.99

375

Retaining Ring

293370125

$2.59

376

Rear Door Striker

705800520

$51.99

377

Rear Striker Support

705800353

$18.99

378

Torx Truss M/S M8 X 20

250000953

$2.11

415

Torx Truss M8 X 25

250000874

$2.11

430

RH Female Upper Door Hinge

705800343

$43.99

450

RH Rear Rigid Door Ass'y | Includes 350 to 350u

705800477

$3,489.99

450a

RH Exterior Panel

705800601

$1,369.99

450b

Seal 705800290 - 5000 MM

705800289

$229.99

450c

RH Sub-Ass', Window

705800234

$559.99

450d

Seal 705800298 - 2200 MM

705800297

$104.99

450e

Routed Inner Door Rh

705800236

$1,239.99

450f

RH Interior Door Trim

705800603

$409.99

450g

RH Rear Door Pocket

705800602

$419.99

450j

Cable Ass', Exterior Latch

705800241

$159.99

450k

RH Interior Latch Kit

703501003

$209.99

450k.a

Inner Paddle Latch | Not shown

705800019

Unavailable

450m

RH Interior Handle

705800244

$119.99

450n

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

450p

Cable Ass'y, Interior Latch

705800242

$159.99

450q

Key Set

705800184

$25.99

450r

Window Hardware Kit

703500983

$244.99

450b

Seal 705800290 - 5000 MM

705800289

$229.99

455

Torx Truss M/S M8 X 20

250000953

$2.11

463

RH Male Upper Door Hinge

705800341

$43.99

464

NEEDS DESCRIPTION

705801188

$119.99

470

Torx Truss M8 X 25

250000874

$2.11
