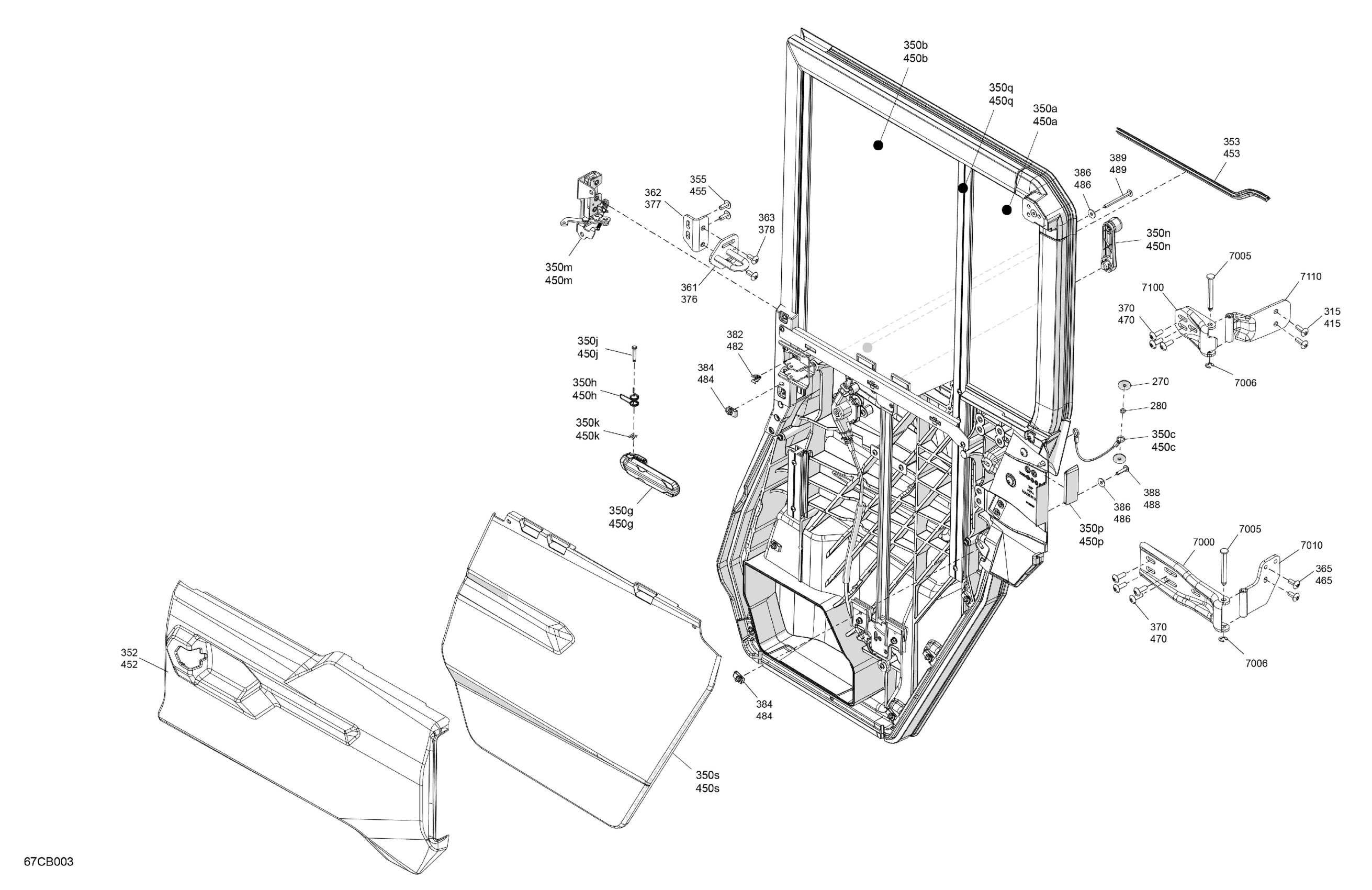

Can-Am Defender MAX HD10 - LTD CAB (6MNG-H-J-K-L-M) - 2022 Enclosure Cab - Rear Doors Diagram

#

Description
Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$17.88

270

Washer M6

250200029

$1.78

280

Bushing

708300737

$4.43

315

Torx Truss M8 X 25

250000874

$2.00

350a

Rear Door Window

705800868

$369.99

350b

Sliding Cab Window

705800869

$489.99

350c

Retaining Cable

705800903

$8.66

350d

Seal | Not Shown

705800727

$279.99

350f

Gasket | Not Shown

705800870

$99.22

350g

Door Handle

705017152

$12.57

350h

Handle Spring

705013062

$13.28

350j

Handle Axle

705207440

$10.55

350k

External Retaining Ring

705601875

$3.94

350m

LH Latch

705800874

$179.07

350n

Window Crank

705800871

$104.45

350p

Trim

705800992

$90.27

350q

Rear Window Guide Extrusion

705800723

$198.48

350s

LH Lower Door Panel

705800718

$279.99

352

Asphalt Gray, LH Rear Door Panel | Model Asphalt Grey

705800820

$239.99

352

Oxford Blue Metallic, LH Rear Door Panel | Model Oxford Blue Metallic

705800822

$274.99

352

Break Up Country, RH Rear Door Pamel | Model Break Up Country

705800923

$299.99

353

Gasket

705800964

$31.31

355

Torx Truss M/S M8 X 20

250000953

$2.00

361

RH Door Sticker

705800853

$48.48

362

LH Striker Support

705800851

$15.64

363

Torx Truss M/S M8 X 20

250000953

$2.00

365

Torx Truss M/S M8 X 20

250000953

$2.00

370

Torx Truss M8 X 25

250000874

$2.00

376

RH Door Sticker

705800853

$48.48

377

RH Support Striker

705800852

$15.64

378

Torx Truss M/S M8 X 20

250000953

$2.00

382

Clip

517306478

$1.03

384

Panel Nut M6 X 1.0

250100198

$1.99

386

Stainless Steel Flat Washer

234062670

$2.00

388

Torx Truss Screw M6 X 25

250000807

$2.00

389

Torx Screw M6 X 70

250000954

$1.79

415

Torx Truss M8 X 25

250000874

$2.00

450a

Rear Door Window

705800868

$369.99

450b

Sliding Cab Window

705800869

$489.99

450c

Retaining Cable

705800903

$8.66

450d

Seal | Not Shown

705800727

$279.99

450f

Gasket | Not Shown

705800870

$99.22

450g

Door Handle

705017152

$12.57

450h

Handle Spring

705013062

$13.28

450j

Handle Axle

705207440

$10.55

450k

External Retaining Ring

705601875

$3.94

450m

RH Latch

705800875

$179.07

450n

Window Crank

705800871

$104.45

450p

Trim

705800993

$90.27

450q

Rear Window Guide Extrusion

705800723

$198.48

450s

RH Lower Door Panel

705800719

$227.99

452

Asphalt Grey, RH Rear Door Panel

705801424

$227.99

452

Oxford Blue Metallic, RH Rear Door Panel | Model Oxford Blue Metallic

705800823

$274.99

452

Break Up Country, LH Rear Door Panel | Model Break Up Country

705800922

$299.99

453

Gasket

705800964

$31.31

455

Torx Truss M/S M8 X 20

250000953

$2.00

465

Torx Truss M/S M8 X 20

250000953

$2.00

470

Torx Truss M8 X 25

250000874

$2.00

482

Clip

517306478

$1.03

484

Panel Nut M6 X 1.0

250100198

$1.99

486

Stainless Steel Flat Washer

234062670

$2.00

488

Torx Truss Screw M6 X 25

250000807

$2.00

489

Torx Screw M6 X 70

250000954

$1.79

7000

Door Hinge

705800751

$37.99

7005

Hinge Pin

705800781

$0.54

7006

Retaining Ring

293370125

$1.91

7010

Lower Hinge

705801025

$39.52

7100

Upper Door Hinge

705800752

$39.52

7110

Upper Door Hinge

705800755

$28.33
