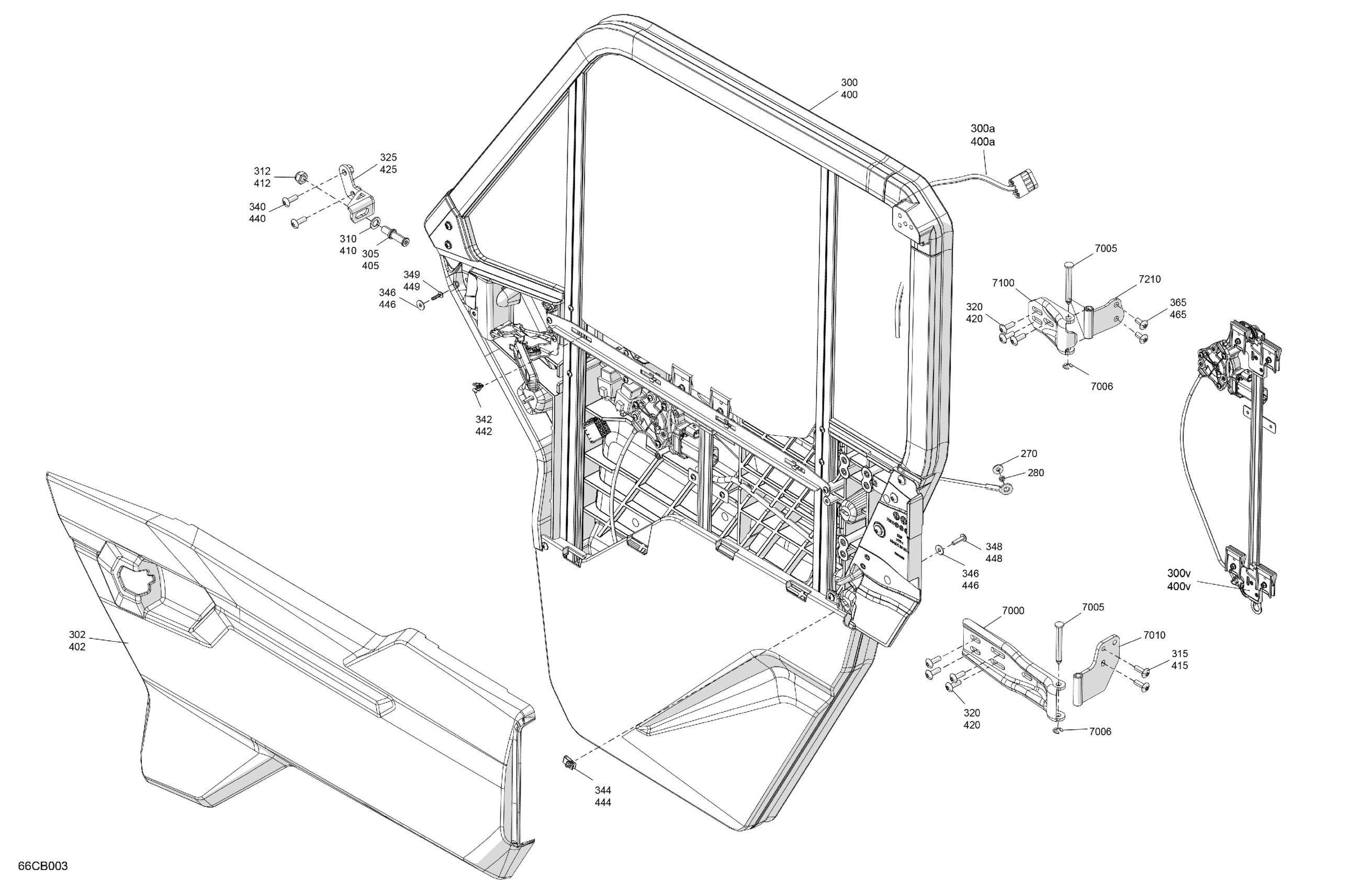

Can-Am Defender MAX HD10 - LTD CAB (6MNG-H-J-K-L-M) - 2022 Enclosure Cab - Front Doors Diagram

#

Description
Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$20.74

270

Stainless Steel Flat Washer

234062670

$1.74

280

Bushing

708300737

$4.62

300

LH Front Rigid Door Ass'y | Includes 300 to 300ac

705801088

$2,049.99

300a

LH Door Wiring Harness

705800881

$226.12

300b

Front Door Window

705800863

$379.99

300c

Rear Door Window

705800864

$204.99

300d

Sliding Cab Window

705800865

$204.99

300f

Window Switch

710004979

$38.56

300g

Gasket

705800866

$226.12

300h

Gasket

705800867

$106.12

300j

Door Handle

705017152

$13.52

300k

Handle Spring

705013062

$13.83

300m

Handle Axle

705207440

$11.54

300n

External Retaining Ring

705601875

$4.06

300p

LH Latch

705800872

$189.20

300u

Trim

705800992

$93.05

300q

Front Window Guide Extrusion

705800722

$207.66

300r

Rear Window Guide Extrusion

705800723

$207.66

300t

LH Lower Door Panel

705800716

$239.99

300v

LH Front Window Actuator

705801143

$784.58

302

Asphalt Grey, LH Upper Door Panel

705801421

$237.49

302

Oxford Blue Metallic, LH Upper Door Panel | Model Oxford Blue Metallic

705800810

$279.99

302

Break Up Country, LH Upper Door Panel | Model Break Up Country

705800920

$309.99

303

Gasket

705800963

$32.28

305

Rod Latch

705800850

$27.66

310

Conical Spring Washer M12

250200005

$2.65

312

Elastic Stop Nut M12

232521416

$1.40

315

Torx Truss M8 X 25

250000874

$1.74

320

Torx Truss M8 X 25

250000874

$1.74

325

LH Front Striker Support

705801086

$41.51

340

Torx Truss M8 X 25

250000874

$1.74

342

Clip

517306478

$1.37

344

Panel Nut M6 X 1.0

250100198

$1.73

346

Stainless Steel Flat Washer

234062670

$1.74

348

Torx Truss Screw M6 X 25

250000807

$1.74

349

Torx Screw Truss Head K50X20 T20

250000760

$1.74

365

Torx Truss M/S M8 X 20

250000953

$1.74

400

RH Front Rigid Door Ass'y | Includes 400 to 400ac

705801089

$2,049.99

400a

RH Door Wiring Harness

705800882

$239.97

400b

Front Door Window

705800863

$379.99

400c

Rear Door Window

705800864

$204.99

400d

Sliding Cab Window

705800865

$204.99

400f

Window Switch

710004979

$38.56

400g

Gasket

705800866

$226.12

400h

Gasket

705800867

$106.12

400j

Door Handle

705017152

$13.52

400k

Handle Spring

705013062

$13.83

400m

Handle Axle

705207440

$11.54

400n

External Retaining Ring

705601875

$4.06

400p

RH Latch

705800873

$189.20

400u

Trim

705800993

$93.05

400q

Front Window Guide Extrusion

705800722

$207.66

400r

Rear Window Guide Extrusion

705800723

$207.66

400t

RH Lower Door Panel

705800717

$239.99

400v

RH Front Window Actuator

705801144

$784.58

402

Asphalt Gray, RH Upper Door Panel | Model Asphalt Grey

705800785

$249.99

402

Oxford Blue Metallic, RH Upper Door Panel | Model Oxford Blue Metallic

705800811

$279.99

402

Break Up Country, RH Upper Door Panel | Model Break Up Country

705800921

$309.99

403

Gasket

705800963

$32.28

405

Rod Latch

705800850

$27.66

410

Conical Spring Washer M12

250200005

$2.65

412

Elastic Stop Nut M12

232521416

$1.40

415

Torx Truss M8 X 25

250000874

$1.74

420

Torx Truss M8 X 25

250000874

$1.74

425

RH Front Striker Support

705801097

$41.51

440

Torx Truss M8 X 25

250000874

$1.74

442

Clip

517306478

$1.37

444

Panel Nut M6 X 1.0

250100198

$1.73

446

Stainless Steel Flat Washer

234062670

$1.74

448

Torx Truss Screw M6 X 25

250000807

$1.74

449

Torx Screw Truss Head K50X20 T20

250000760

$1.74

465

Torx Truss M/S M8 X 20

250000953

$1.74

7000

Door Hinge

705800751

$37.99

7005

Hinge Pin

705800781

$0.55

7006

Retaining Ring

293370125

$2.31

7010

Lower Hinge

705801025

$41.51

7100

Upper Door Hinge

705800752

$41.51

7210

Upper Door Hinge

705800756

$46.12
