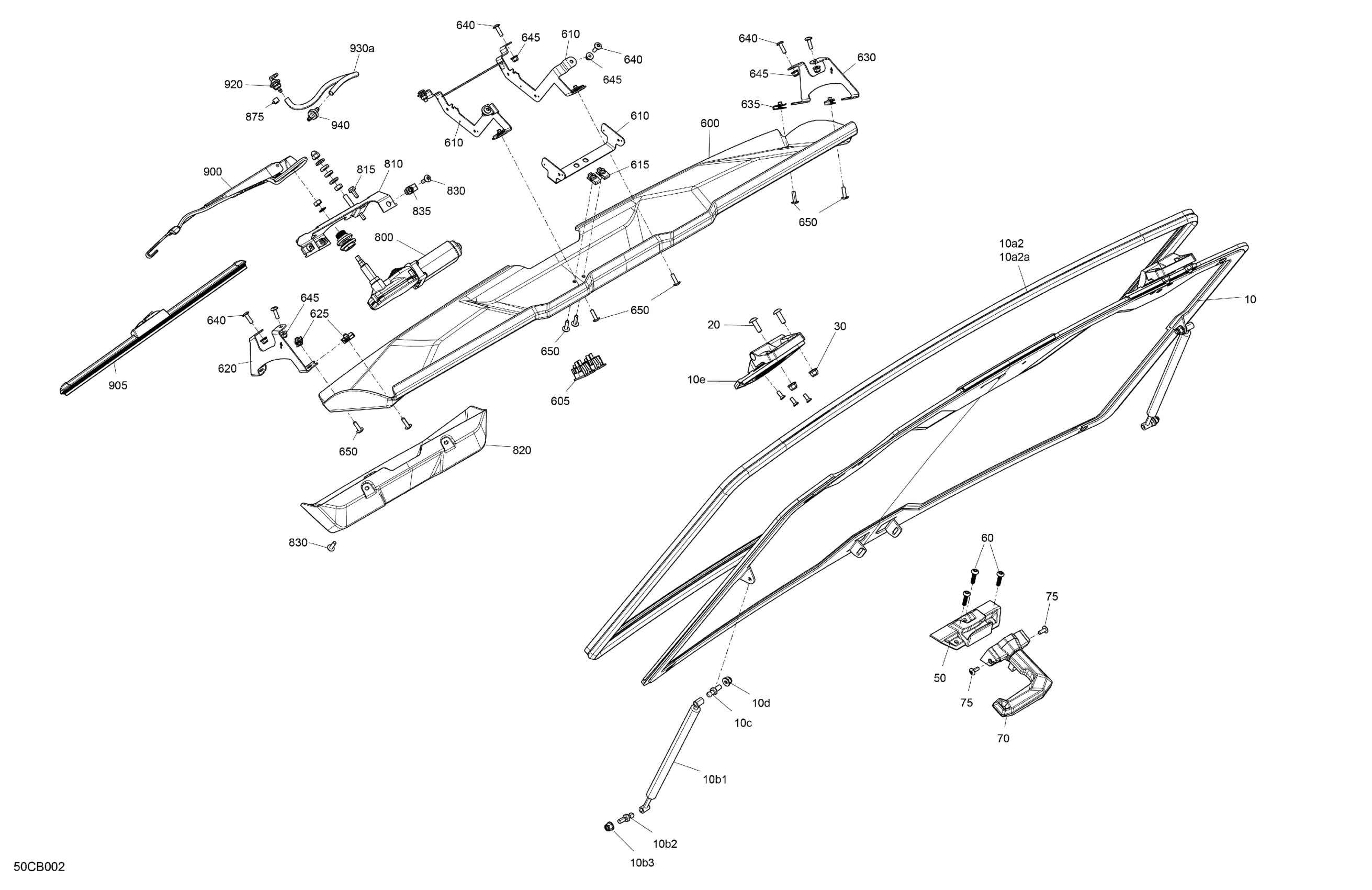

Can-Am Defender MAX HD10 - LTD CAB (6MNG-H-J-K-L-M) - 2022 Body - Windshield Diagram

#

Description
Price

10

Windshield Ass'y | Includes 10 to 10f

715002942

$1,499.99

10a2

Neoprene Seal

705800006

$194.99

10a2a

NEOPRENE SEAL - Call your local BRP dealership

715900315

Unavailable

10b1

Shock

705800030

$104.99

10b2

Ball Head Stud

250300039

$7.51

10b3

Hex. Flange Elastic Nut M8

233281414

$1.47

10c

Ball Head Stud

250300039

$7.51

10d

Hex. Flange Elastic Nut M8

233281414

$1.47

10e

Windshield Hinges

705800082

$124.99

20

Torx Truss M8 X 25

250000874

$2.11

30

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Handle Anchor

705800008

$20.99

60

Screw Torx M6.81 X 30

250001007

$2.54

70

Mobile Handle Ass'y

705800085

$124.99

75

Torx Truss M8 X 16

250000881

$2.11

600

Front Radio Support Kit UR

715008225

$339.99

600

Radio Support Kit

715008392

$214.99

605

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

610

Support

705800060

$60.99

615

Panel Nut M6 X 1.0

250100198

$2.11

620

LH Support

705800108

$26.99

625

Panel Nut M6 X 1.0

250100198

$2.11

630

RH Support

705800109

$25.99

635

Panel Nut M6 X 1.0

250100198

$2.11

640

Torx Screw M6 X 20

250000722

$1.68

645

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

650

Torx Screw M6 X 20

250000722

$1.68

800

Wiper Motor

705010657

$379.99

810

Cover Support Ass'y

705800073

$85.99

815

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

820

Wiper Motor Trim

705800805

$71.99

830

Torx Screw M6 X 20

250000722

$1.68

835

Panel Nut M6 X 1.0

250100198

$2.11

875

Spring Clamp

414554800

$0.88

900

Wiper Arm

705010656

$80.99

905

Winshield Wiper

705011443

$42.99

920

90° Elbow Connector

705800103

$13.76

930a

Polyurethane Hose

293830193

Unavailable

940

Check Valve

275500398

$10.99
