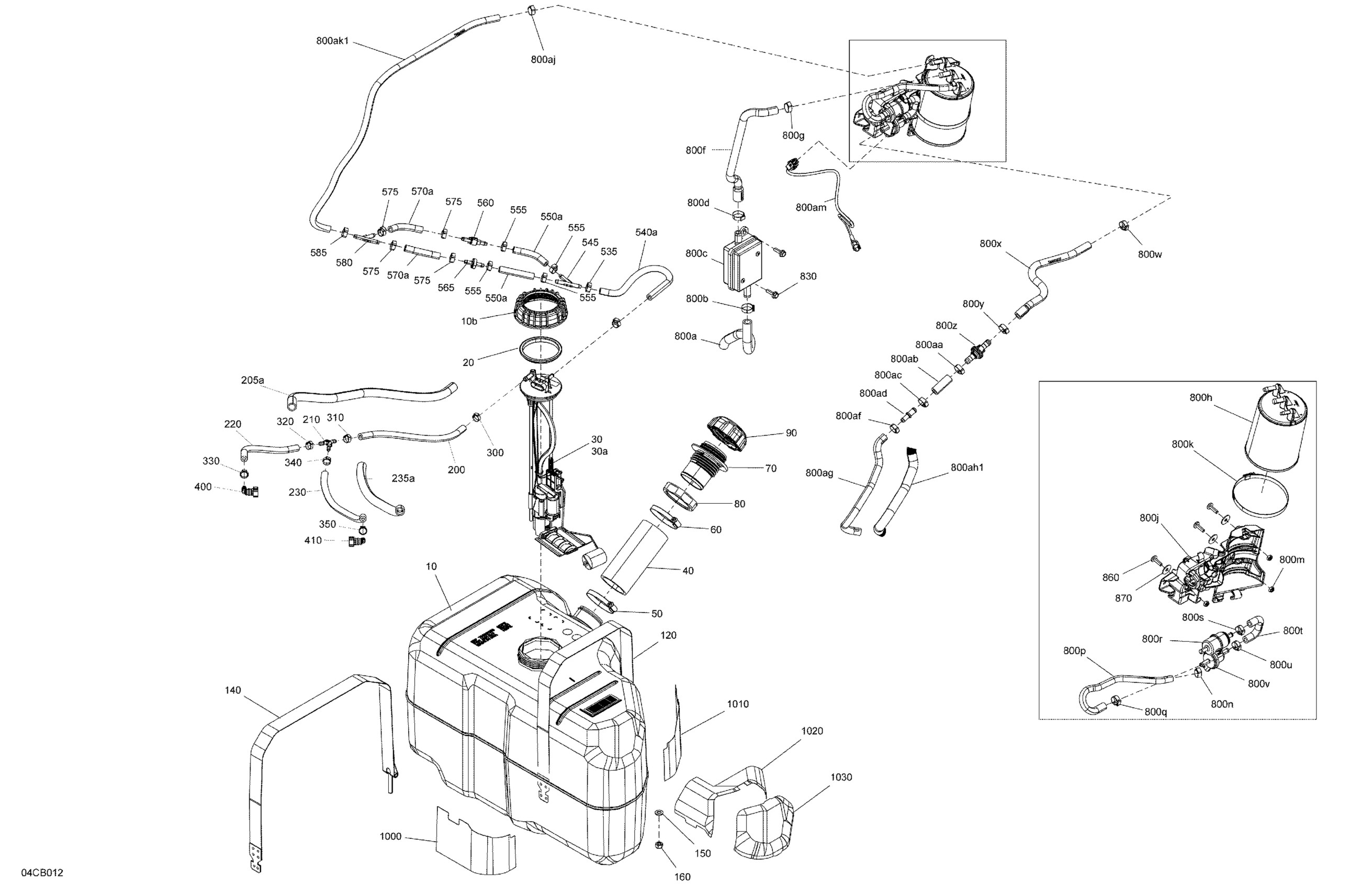

Can-Am Defender MAX HD10 - LTD CAB (6MNG-H-J-K-L-M) - 2022 Engine - Fuel - Evap Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10a

709001257

$264.99

10b

Fuel Pump Module Nut

709000328

$13.75

20

Seal

709000208

$14.99

30

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

40

Hose Filler Neck

709000595

$31.99

50

Norma Clamp

293650081

$12.18

60

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

120

Retaining Strap

709001291

$39.99

140

Retaining Strap

709001141

$43.99

150

Flat Washer 8 mm

234081410

$0.83

160

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

205a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

210

Y Fitting

709001329

$11.59

220

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

230

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

310

Crimp Clamp

293650053

$3.09

320

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

340

Crimp Clamp

293650053

$3.09

350

Crimp Clamp

293650053

$3.09

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

535

Oetiker Clamp

293650042

$3.09

540a

Hose

709000667

Unavailable

545

Y-Fitting

293710059

$9.69

550a

Hose

709000667

Unavailable

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

570a

Hose

709000667

Unavailable

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

800a

Hose Fuel Vapour Canister

707800965

$23.49

800b

Oetiker Clamp

293650186

$3.99

800c

Air Filter

709000524

$45.99

800d

Oetiker Clamp

293650186

$3.99

800f

Formed Hose

709000850

$15.99

800g

Crimp Clamp

293650053

$3.09

800h

Charcoal Canister This part replaces 709001294.

709001673

$88.99

800j

Canister Support | EVAP Models

709000851

$5.29

800k

Tridon Clamp

293650054

$9.49

800m

Hex. Elastic Stop Nut M6

232561600

$1.15

800n

Oetiker Clamp

293650042

$3.09

800p

Formed Hose

709000853

$17.49

800q

Oetiker Clamp

293650046

$2.89

800r

Fuel Filter

513034047

$21.99

800s

Crimp Clamp, 15.3-706R

293650047

$3.29

800t

Formed Hose

709000857

$17.49

800u

Crimp Clamp, 15.3-706R

293650047

$3.29

800v

Bleed Valve

709000443

$73.99

800w

Crimp Clamp, 15.3-706R

293650047

$3.29

800x

Formed Hose

709000937

$16.99

800y

Crimp Clamp

293650053

$3.09

800z

Check Valve

275500941

$25.99

800aa

Crimp Clamp

293650053

$3.09

800ab

Hose

709000882

$16.65

800ac

Crimp Clamp

293650053

$3.09

800ad

Flow Reducer

709000933

$4.12

800af

Crimp Clamp, 15.3-706R

293650047

$3.29

800ag

Formed Hose

709001092

$33.99

800ah1

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800aj

Oetiker Clamp

293650046

$2.89

800ak1

Hose

709000667

Unavailable

800am

Purge Valve Cable

710005718

$20.99

830

Hex. Flange Screw M6 X 20

207662054

$1.01

860

Torx Screw M6 X 20

250000712

$2.11

870

Flat Washer M6.6 X 22

250200162

$2.32

1000

Heat Shield

707002670

$33.99

1010

Heat Shield

707002671

$33.99

1020

Heat Shield

707002673

$33.99

1030

Heat Shield

707002719

$33.99
