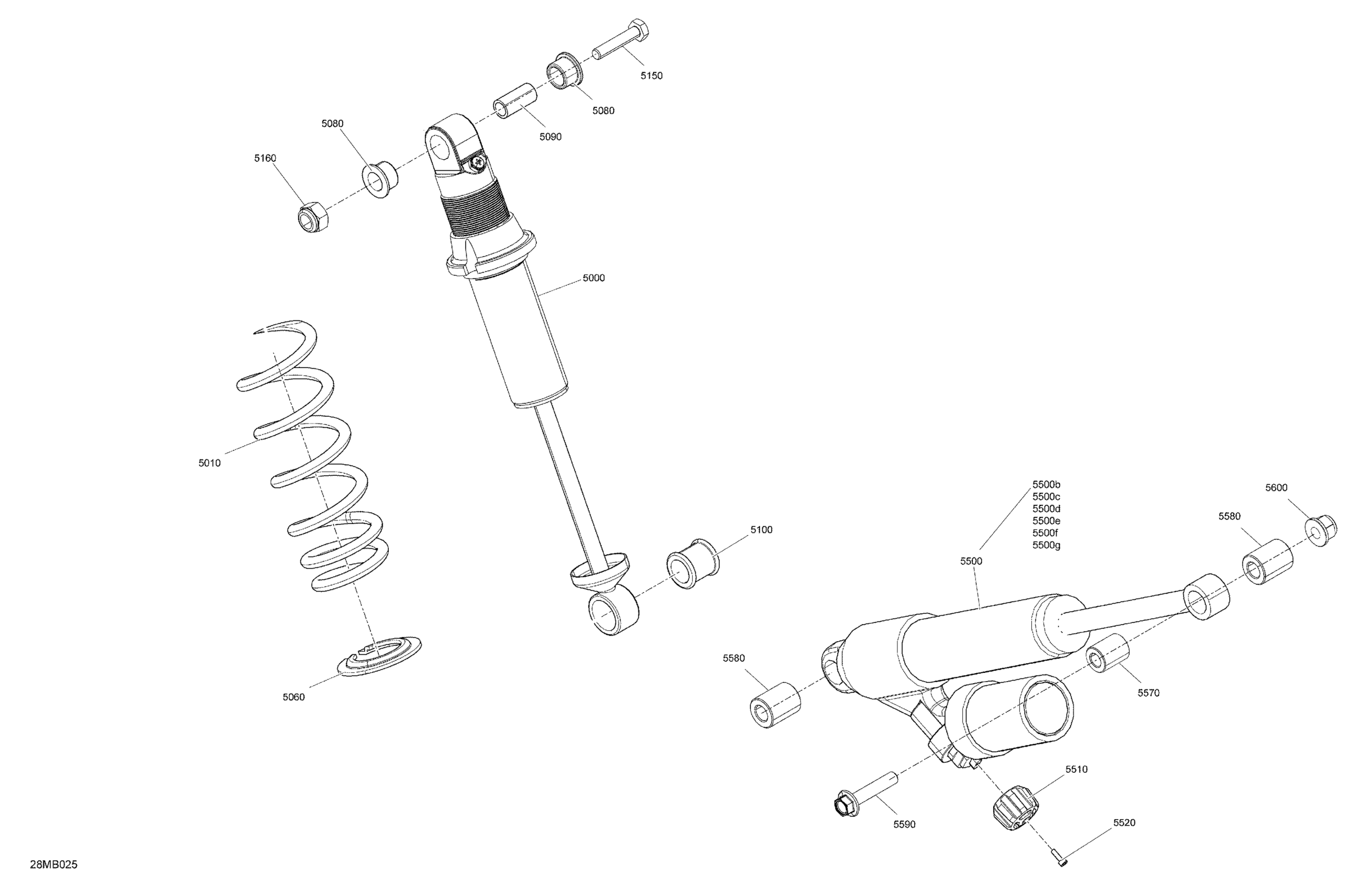

Ski-Doo SUMMIT 850 E-TEC - X with EXPERT Package - 154" - 2022 Suspension - Rear Shocks Diagram

Description

Price

5000

Central Shock

503195450

$416.12

5010

Spring

503195465

$66.89

5060

Spring Stopper

503194270

$16.89

5080

Urethane Bushing

503189117

$6.88

5090

Bushing | Includes 240d to 240d1

503189282

$4.18

5100

Bushing

503189271

$10.46

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5160

Elastic Locking Nut M10

233601466

$1.74

5500

Rear Shock | Included 5500 to 5500g

503195451

$877.49

5500b

O-Ring

415093807

$34.58

5500c

Piston Ring | Not Shown

415093806

$14.97

5500d

Air Valve

505070398

$17.66

5500e

Screw | Not Shown

505070399

$4.00

5500f

O-Ring

505070400

$4.38

5500g

O-Ring

415093804

$4.38

5510

Shock Adjuster Knob

503193033

$7.58

5520

Allen Screw M3 X 0.5 X 10

250000644

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83
