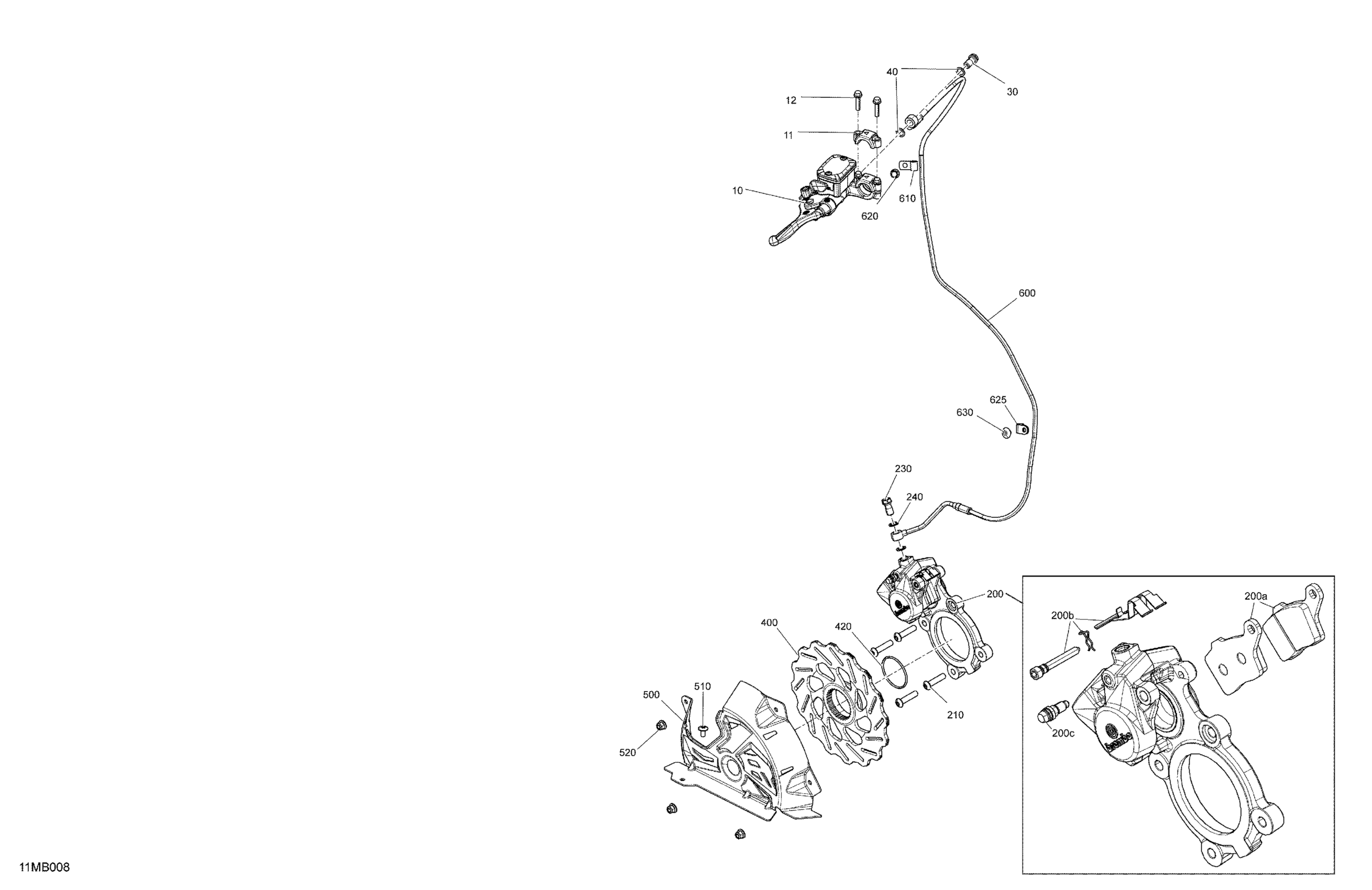

Ski-Doo SUMMIT 850 E-TEC - X with EXPERT Package - 154" - 2022 Mechanic - Brakes Diagram

Description

Price

Master Brake Cylinder | Includes 10 to 10f

507032728

$349.99

Mounting Clamp This part replaces 507032716.

860202519

$89.49

Hex. Flange Screw M6 X 25

250000447

$2.11

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

200

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

230

Banjo Bolt

507032551

$5.61

240

Washer

414920600

$1.90

400

Disk

507032554

$222.49

420

O Ring

293300221

$1.68

500

Black, Disc Protector | Includes 500 to 500a

507032638

$45.99

510

Torx Truss Screw M6 X 12

250000767

$2.00

520

Hex. Flange Elastic Nut M6

233261466

$2.00

600

Brake Hose

507032655

$62.49

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

625

Hose Clamp

293650257

$5.99

630

Blind Rivet 3/16

293150231

$0.32
