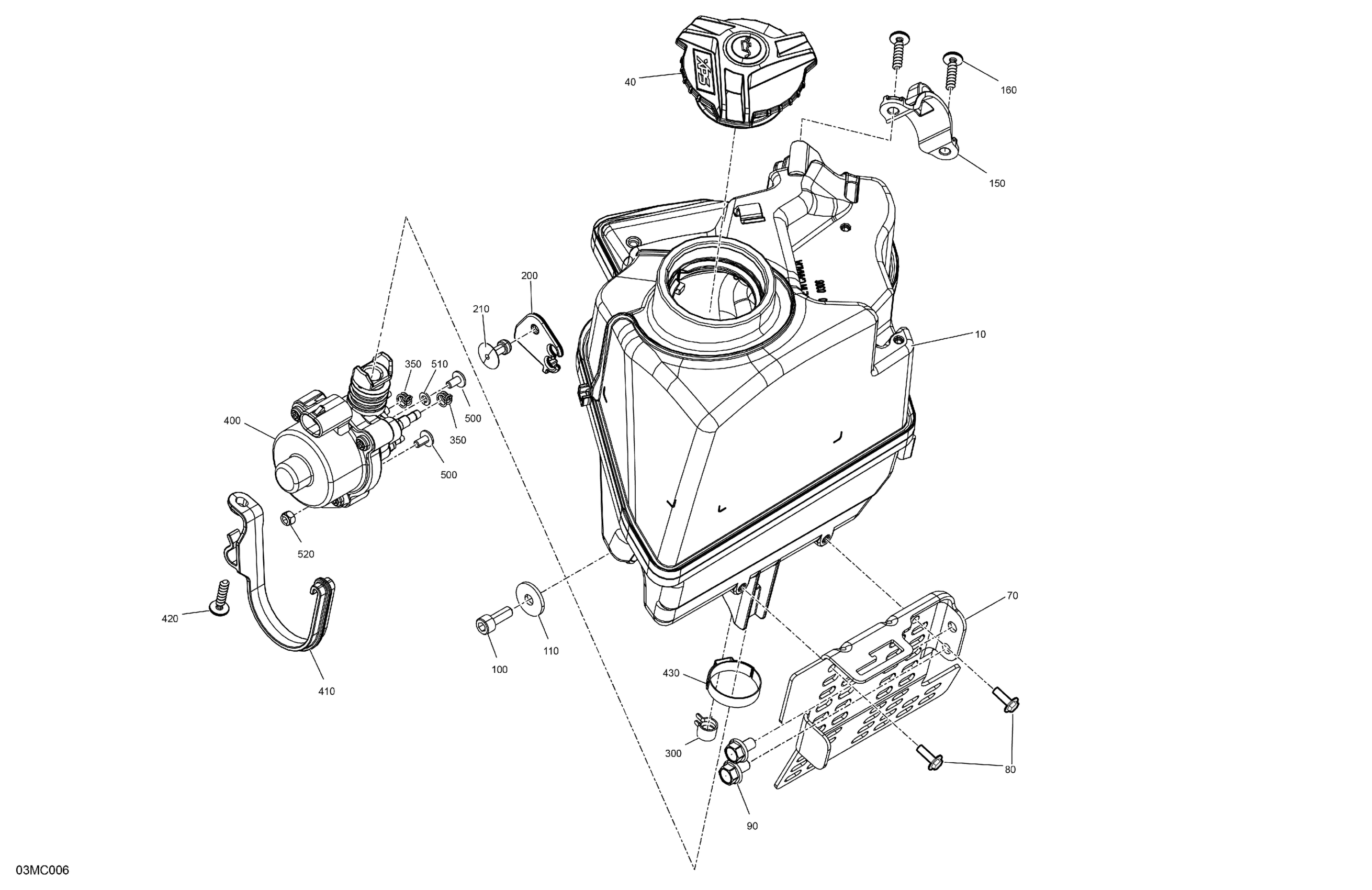

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 154" (TGPR) - 2023 Engine - Oil Diagram

Description

Price

Oil Tank

519000369

$92.99

Cap Ass'y

519000358

$19.49

Oil Tank Support Kit

861805524

$14.24

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

100

Socket Screw M6 X 16, Scotch Grip

205561644

$1.25

110

Flat Washer

224061201

$1.37

150

Clamp

519000320

$4.76

160

Torx Screw Truss Head K50X20 T20

250000760

$2.11

200

Hose Protector

519000322

$2.21

210

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

300

Spring Clamp

414420700

$0.72

350

Hose Clamp

293650252

$4.54

400

Hydraulic Pump | Includes 400 to 400a

519000375

$204.99

410

Bracket

519000318

$3.49

420

Torx Screw Truss Head K50X20 T20

250000760

$2.11

430

Crimp Clamp

293650099

$4.29

500

Screw-Torx Button Head M4 X 8

250000741

$1.15

510

Lock Washer 4 mm

234141601

$1.15

520

Elastic Stop Nut M4

232541484

$0.74
