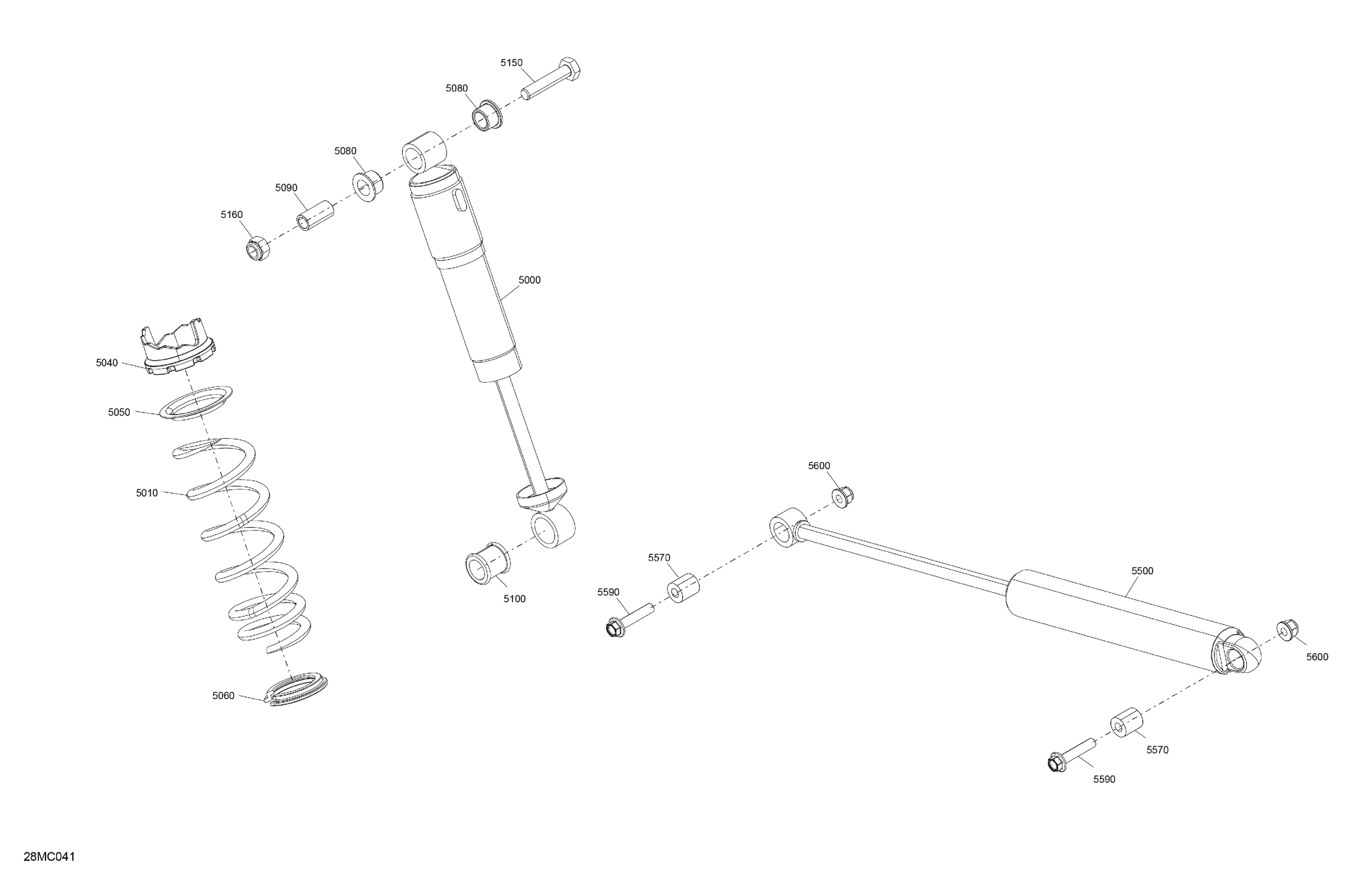

Ski-Doo SKANDIC SE 600R E-TEC - 20 INCH - 2023 Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock

503192991

$248.99

5010

Black, Spring 242MM

503191880

$67.99

5040

Adjustment Cam

505073625

$12.99

5050

Spring Guide

503191872

$2.29

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock

503193520

$248.99

5570

Bushing

414936000

$13.99

5590

Hex Flange Screw M8 X 40

207684056

$1.47

5600

Elastic Flange Nut M8

233281466

$1.01
