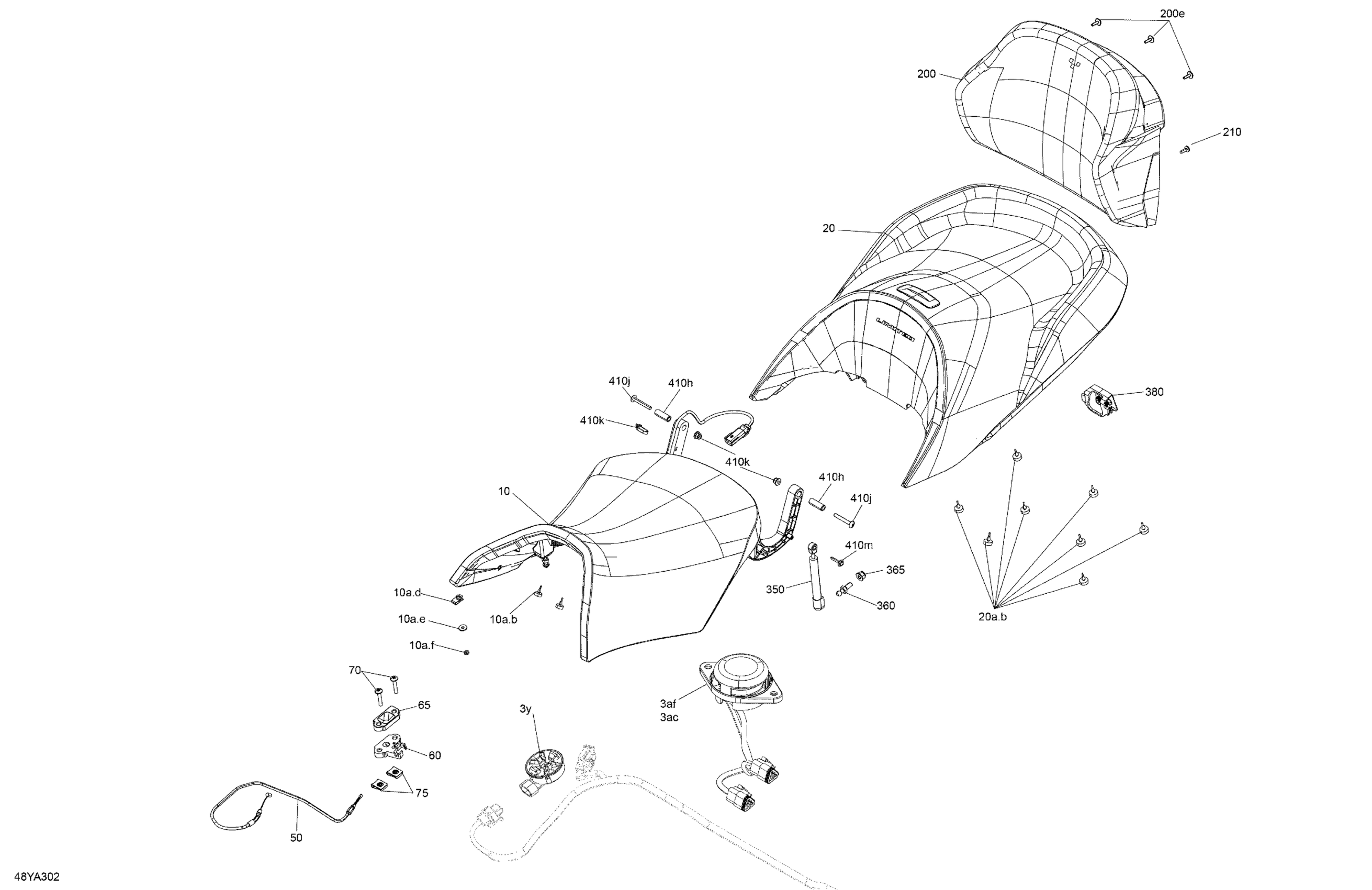

Can-Am RT LIMITED - Special Series - Highland Green, 2021 Body - Seat Diagram

Description

Price

3ac

Passenger Detection Switch

710008103

$70.12

3af

Passenger Detection Switch

710008103

$70.12

RH Passenger Radio Keypad

710006797

Unavailable

Heated Driver Seat Ass'y | Includes 10 to 10a.f

708003283

$619.99

10a.b

Rubber Stopper

708000759

$4.15

10a.d

Panel Nut M6 X 1.0

250100198

$1.99

10a.e

Flat washer M6

250200164

$0.96

10a.f

Hex. Nut M6

232160600

$1.04

Heated Passenger Seat Ass'y | Includes 20 to 20a.b

708003284

$529.99

20a.b

Rubber Stopper

708000759

$4.15

Actuator Cable

517307507

$11.49

Latch

705007379

$28.99

Trim Latch

708003260

$4.69

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

Panel Nut M6 X 1.0

250100208

$1.22

200

Passenger Backrest Ass'y | Includes 200 to 200e

708303921

$349.99

200e

Screw M4 X 16

250000725

$3.30

210

Torx Screw K50 X 16

250000720

$1.60

350

Shock Absorber

708003221

$83.99

360

Ball Head Stud

250300039

$7.06

365

Hex. Flange Elastic Nut M8

233281414

$1.31

380

Connector Cap | Includes 380 to 380d

708303050

$14.29

410h

Spacer

708000664

$6.49

410j

Torx Screw M6 X 45

250000748

$1.79

410k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

410m

Plastite Screw Type K-40, M4 X 25

250000101

$3.30
