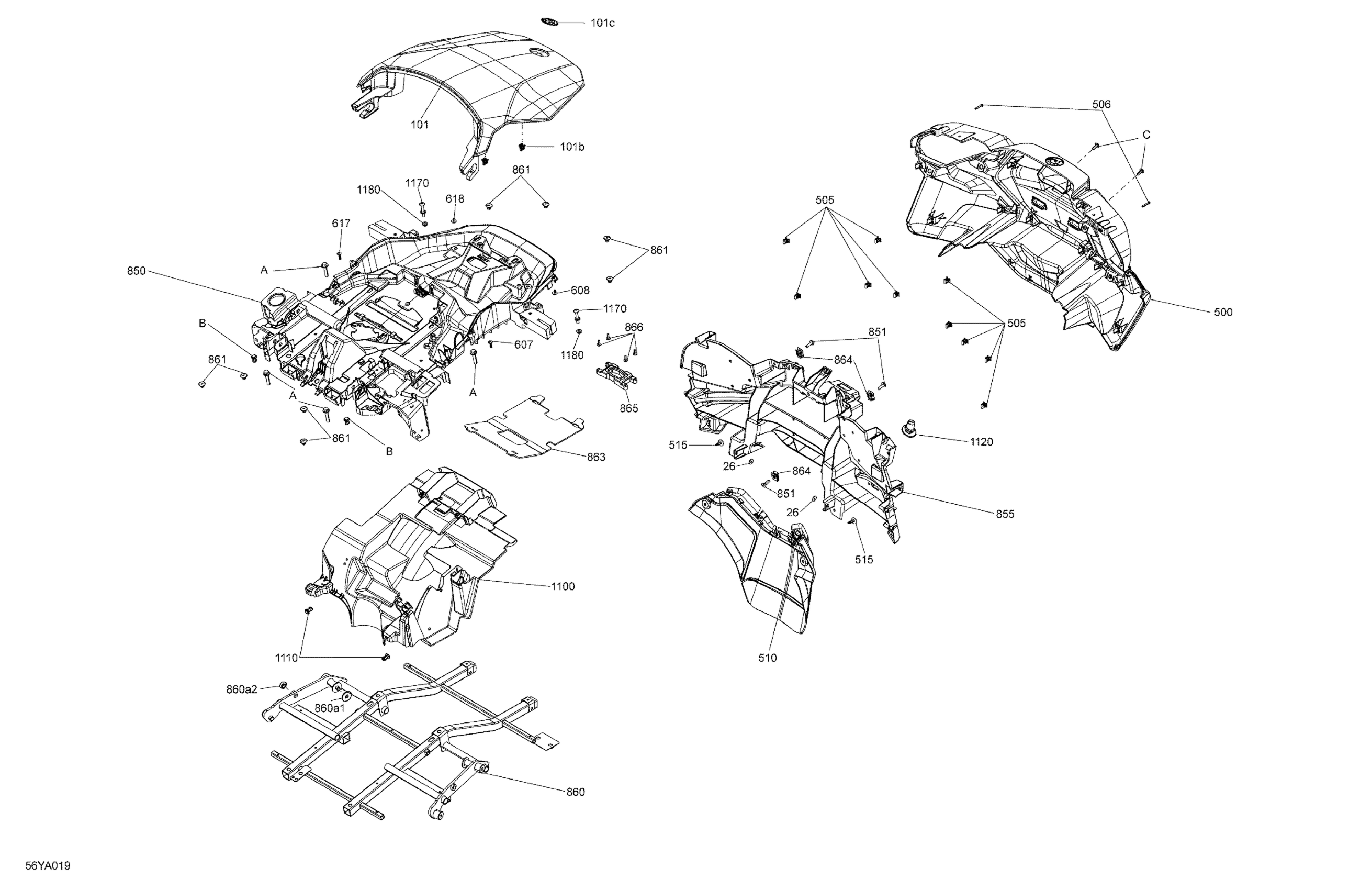

Can-Am On-Road 011 - RT LIMITED - Special Series - Highland Green, 2021 07- Body - Cargo Structure And Rear Fenders - North America - Europe - Australia Diagram

Description

Price

Hex. Flange Screw M8 X 40

207684054

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

101

Rear Fairing Ass'y | Includes 101 to 101c

708303965

$399.99

101b

Edge Clip

517302785

$0.88

101c

Satin Chrome, BRP Logo 48MM

516009913

$53.99

500

Rear Fender

708302949

$204.99

505

Edge Clip

517302785

$0.88

506

Hex. Flange Screw K40 X 25

241142560

$2.64

510

Rear Fender Extention

708301747

$204.99

515

Tuflock Phillips Plastic Screw

414745900

$1.69

607

Torx-Truss Pt K40 X 16

250000759

$2.11

608

Plastite Screw M4 X 10

250000805

$2.11

617

Torx-Truss Pt K40 X 16

250000759

$2.11

618

Plastite Screw M4 X 10

250000805

$2.11

850

Cargo Structure

708303751

$109.99

851

Torx Truss Screw M6 X 20

250000705

$2.11

855

Rear Cargo Structure

708303308

$104.99

860

Rear Frame | Included 860 to 860a16

708303883

$349.99

860a1

Flat Washer 10 mm, Stainless

234002600

$2.22

860a2

Hexagonal Nut

233701400

$0.58

861

Pop Rivet 3/16"

293150103

$0.55

863

Rubber Protector

708400407

$14.99

864

Panel Nut M6 X 1.0

250100208

$1.46

865

LinQ Fastener

708303172

$19.99

866

Torx Screw M5 X 14

250000742

$1.47

1100

Rear Wheel Arch

708303061

$56.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1120

Antenna Cap

708303169

$22.49

1170

Striker

708303392

$4.39

1180

Hex. Flange Elastic Nut M6

233261494

$1.58
