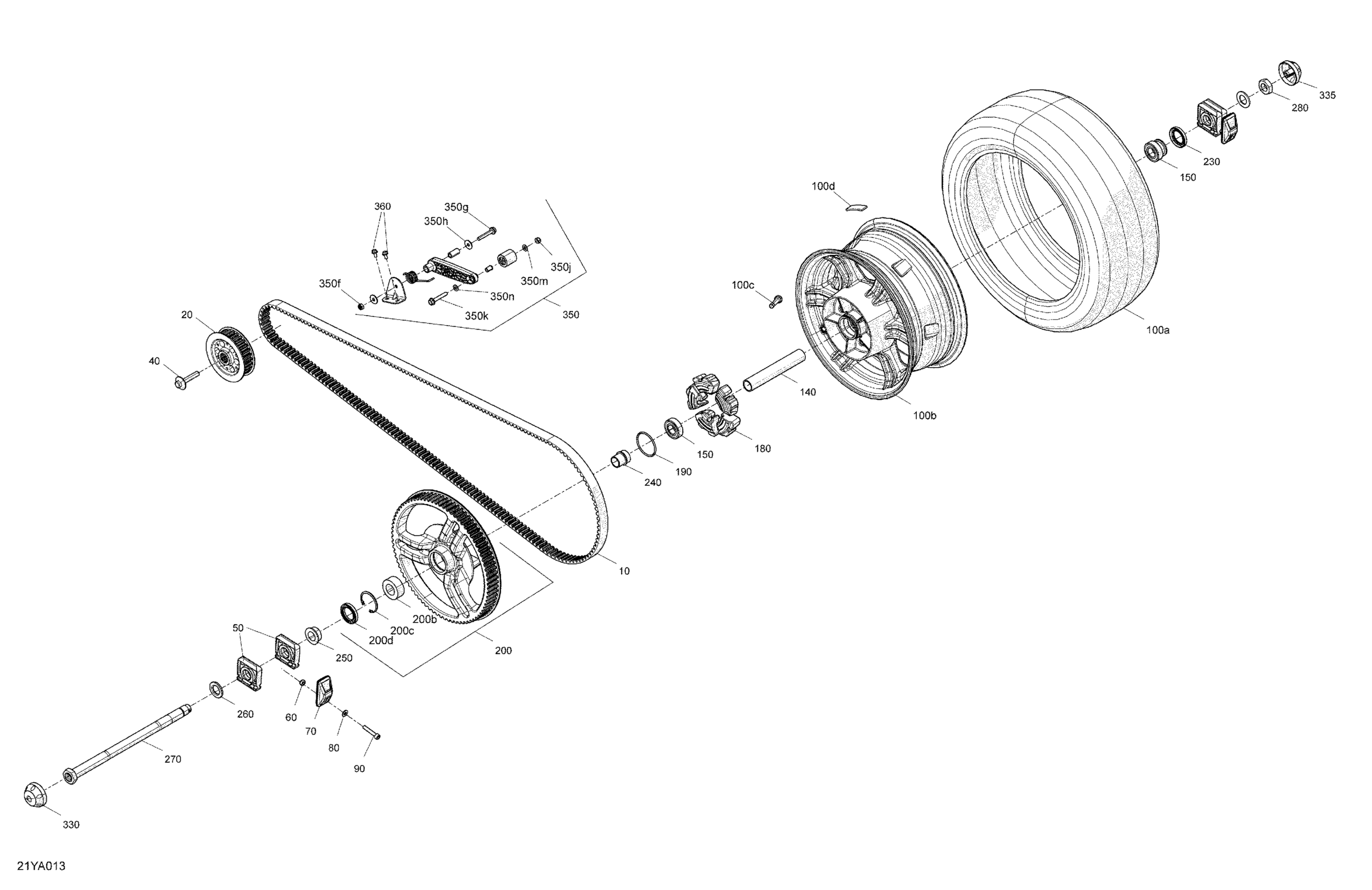

Can-Am RT LIMITED - Special Series - Highland Green, 2021 Drive - Rear Common Parts Diagram

Description

Price

Drive Belt

705501304

$409.99

Sprocket 28 Teeth

705503239

$159.99

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

Sliding Block

705502448

$14.82

Hex. Elastic Nut M8

250100141

$2.00

Adjustment Support

705502450

$15.89

Flat Washer 8 mm

234081410

$0.79

Socket Screw DIN.912

250000713

$2.85

100a

Rear Tire 225/50R15

705503310

Unavailable

100b

Black, Rear Rim

705501992

$391.99

100c

Rim Valve With Cap

705400193

$6.49

100d

Balancing Weight

705503182

$4.69

140

Spacer Tube

705502093

$17.59

150

Ball Bearing

293350115

$10.82

180

Damper

705500736

$24.49

190

O-Ring

293300124

$3.38

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

200b

Double Row Bearing

293350065

$33.99

200c

Circlip

293370053

$9.95

200d

Seal

293200094

$9.03

230

Seal

293200094

$9.03

240

Spacer

705500853

$23.49

250

Spacer

705501602

$19.49

260

Flat Washer

250200163

$3.30

270

Rear Wheel Axle

705501691

$99.49

280

Hex. Jam Nut M24

250100170

$12.12

330

LH Cap

705501081

$9.27

335

RH Cap

705501022

$9.19

350

Idler Pulley | Included 350 to 350n

705503291

$109.99

350f

Hex. Elastic Stop Nut M8

232581414

$0.54

350g

Hex. Flange Screw M8 X 50

207685044

$1.60

350h

Flat Washer 8 mm

234082410

$1.27

350j

Hex. Elastic Stop Nut M8

232581414

$0.54

350k

Hex. Flange Screw M8 X 50

207685044

$1.60

350m

Flat Washer 8 mm

234081410

$0.79

360

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79
