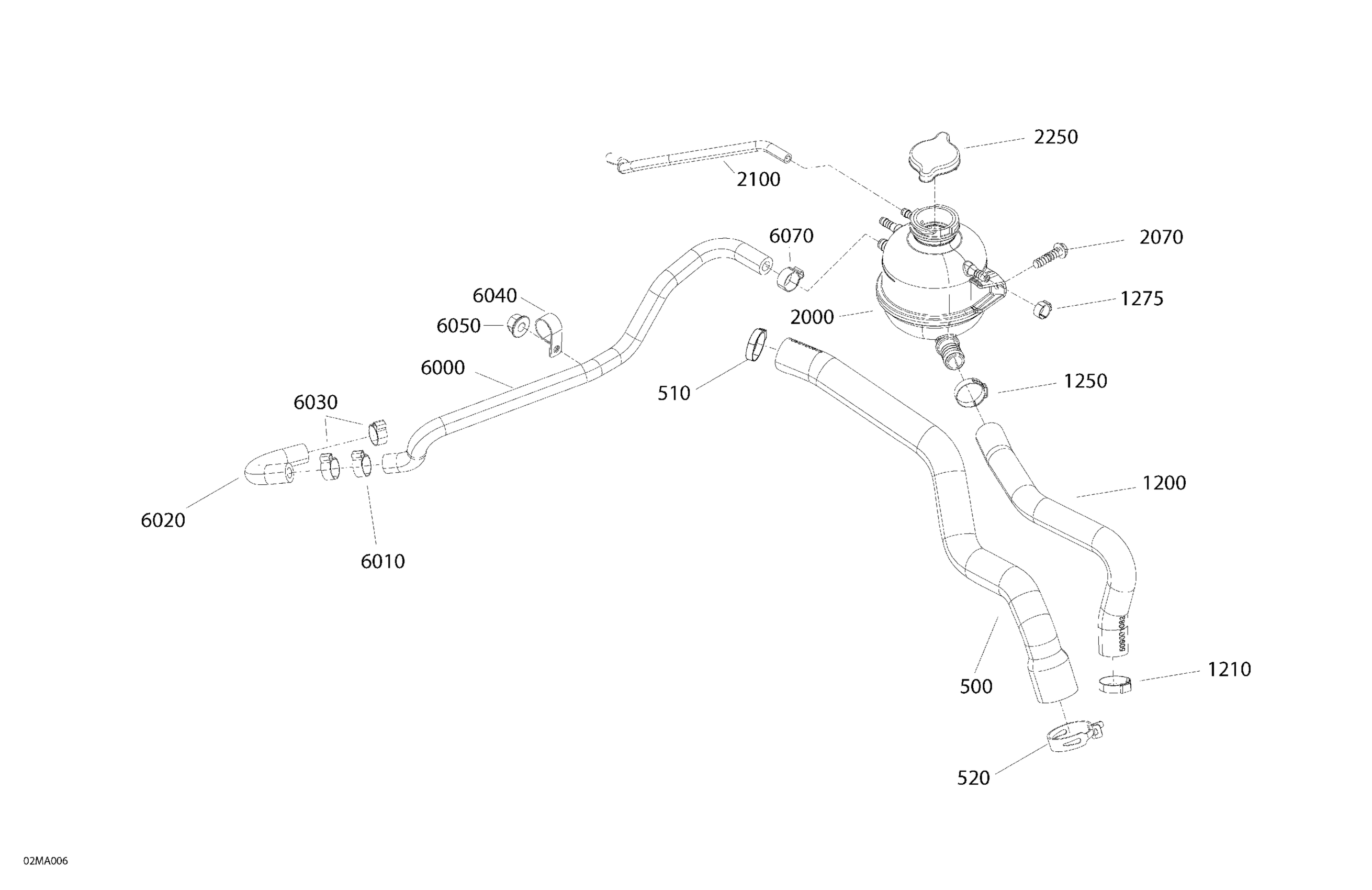

Ski-Doo RENEGADE 900 ACE Turbo - Adrenaline - 2021 Engine - Cooling Diagram

Description

Price

500

Hose Radiator In

509001079

$14.49

510

Oetiker Gear Clamp 36.1MM

509000045

$8.29

520

Norma Spring Clamp

293650264

$4.44

1200

Coolant Tank Hose

509001083

$14.49

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1210

Crimp Clamp

293650099

$4.29

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

2000

Cooling Tank

509001012

$91.99

2070

Hex. Flange Screw K50 X 20

241152060

$1.99

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

2105

Protector Tube

504153074

$14.49

2250

Radiator Pressure Cap

509000180

$20.49

6000

Hose

509001092

$14.49

6010

Oetiker Clamp

293650011

$3.09

6020

Hose

509001090

$23.49

6030

Oetiker Clamp

293650011

$3.09

6040

Clamp

512061265

$6.19

6050

Hex. Flange Nut M6

233061414

$1.68

6060

Tube 25Mm 1000Mm Long | Engine 450

219704350

$53.99

6070

Oetiker Clamp

293650011

$3.09
