Description

Price

10

Deep Black, Chassis Tunnel Module 137

415130829

$3.00

10

Neo Yellow, Chassis Tunnel Module 137" | Model Neo Yellow

415130566

$3.00

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

Front Suspension Arm Reinforcement

518327233

$4.69

10j

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

10k

LH Rear Suspension Support

518334413

$45.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

RH Roller

518328451

$194.99

10q

LH Roller

518328452

$194.99

10r

LH Footrest Reinforcement

518332296

$21.99

10s

RH Footrest Reinforcement

518332297

$21.99

10t

Radiator Tunnel 137 Ass'y

518334488

$720.49

10v

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10y

Rear Cap

518328990

$22.49

10aa

RH Footrest

518333006

$40.99

10ab

Black, Dart 8 mm

293730047

$2.21

10ac

Black, Dart 10 mm

293730060

$4.55

10ad

Black, Plug

293730052

$9.19

10af

LH Footrest

518333007

$40.99

10aj

Rivet Avibulb 3/16

293150203

$2.09

10an

Henrob Rivet

293150245

$1.69

10aq

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10ar

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10as

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10at

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

75

Rivet Ornit 6,5 X 10.5

293150264

$2.40

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector

518329980

$10.13

1750a

Rubber Bumper

293830005

$8.09

1760

Front Protective Structure

518334162

$3.69

1770

Torx Truss PT K40 x 12

250001131

$2.11

1775

Gasket

705002447

$3.59

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40

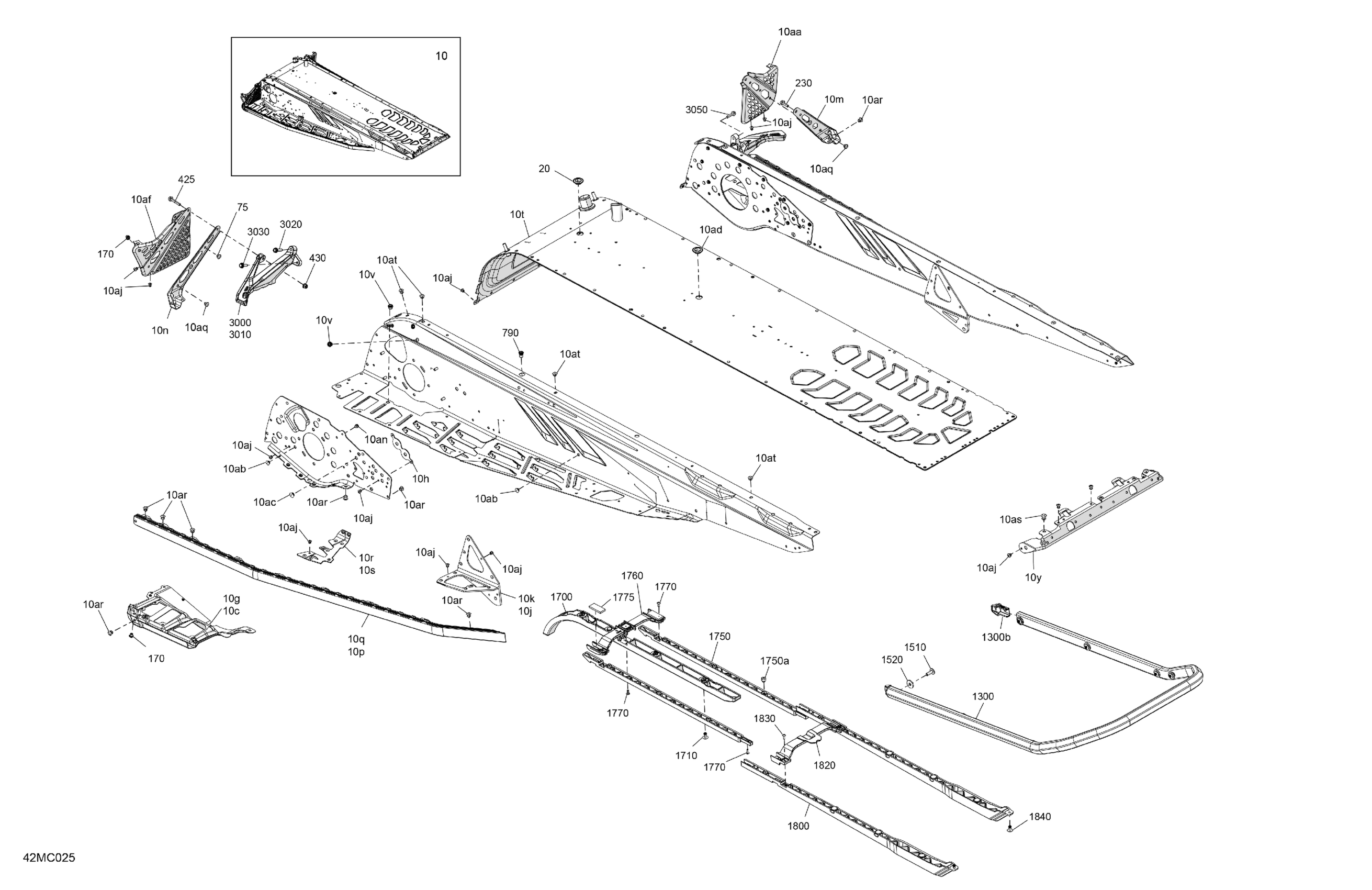

Ski-Doo 011 - RENEGADE 850 E-TEC - X - North America, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 137

Neo Yellow, Chassis Tunnel Module 137" | Model Neo Yellow

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

RH Rear Suspension Support This part replaces 518334389.

LH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

LH Footrest Reinforcement

RH Footrest Reinforcement

Radiator Tunnel 137 Ass'y

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Dart 8 mm

Black, Dart 10 mm

Black, Plug

LH Footrest

Rivet Avibulb 3/16

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Rivet Ornit 6,5 X 16.5

Ornit Rivet 6,5 X 14.5

Black, Plug

Rivet Ornit 6,5 X 10.5

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 x 35

Elastic Flange Nut M6 X 1.0

Insert

Rear Bumper | Includes 1300 to 1300b

Cap

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

Rear Protector

Rubber Bumper

Front Protective Structure

Torx Truss PT K40 x 12

Gasket

Rear Protector

Central Protective Structure

Torx Truss PT K40 x 12

Pop Rivet 3/16”

Black Toe-hold

Toe Hold

Hex. Flange Screw M6 X 25

Hex. Flange Screw S.Grip M6 X 20

Hex Screw Forming M6 x 25
