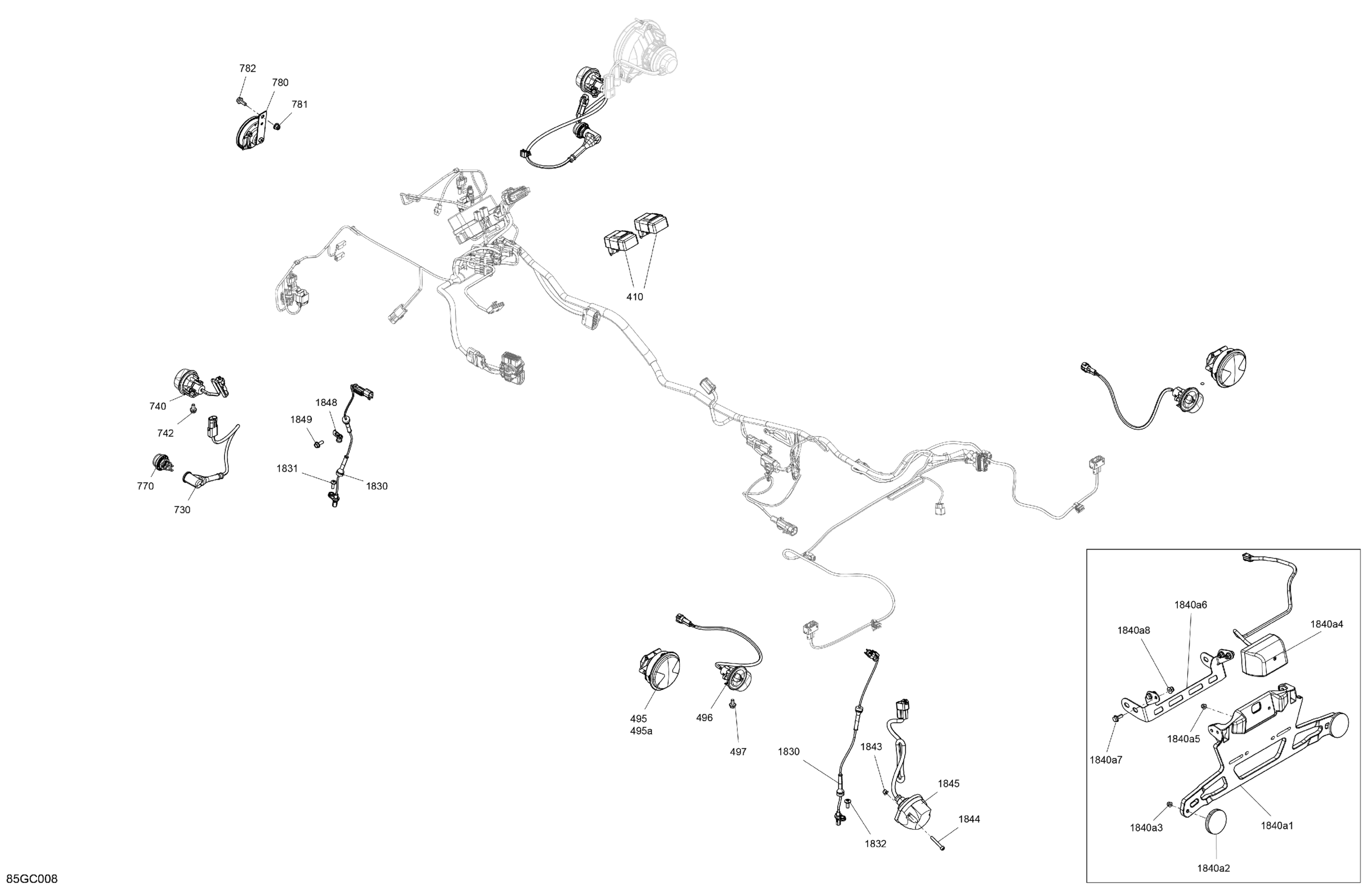

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2023 Electric - Flasher Lights Diagram

Description

Price

280

Clip

414227300

$1.45

281

Clip

414227300

$1.45

410

Flasher Unit

710003239

$78.43

495

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

495a

Bulb

520000758

$7.49

496

Flasher | Europe

710002964

$35.14

497

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

730

Position Light Harness

710005676

$13.52

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

770

Day Light | Europe

710001726

$36.89

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

1830

Speed Sensor

710006981

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1832

Torx Truss Screw M6 X 16

250000721

$1.39

1840a1

Plate Support | Europe

708300434

$25.35

1840a2

Red, Reflector

705016982

$12.32

1840a3

Flange Elastic Nut M5

233251434

$1.66

1840a4

License Plate Light | Europe

710005563

$124.58

1840a5

Flange Elastic Nut M5

233251434

$1.66

1840a6

License Plate Support

710009520

$10.69

1840a7

Hex. Flange Screw M6 X 16

207661644

$0.61

1840a8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1840b

Elastic Flange Nut M8

233281464

$0.83

1840c

Torx Truss Screw M8 X 50

250000761

$6.18

1843

Flange Elastic Nut M5

233251434

$1.66

1844

Socket Head Screw M5 X 35

205053588

$1.56

1845

Trailer Harness

710005846

$212.28

1848

Clamp

293650256

$4.36

1849

Hex. Flange Screw M6 X 16

210261640

$1.74
