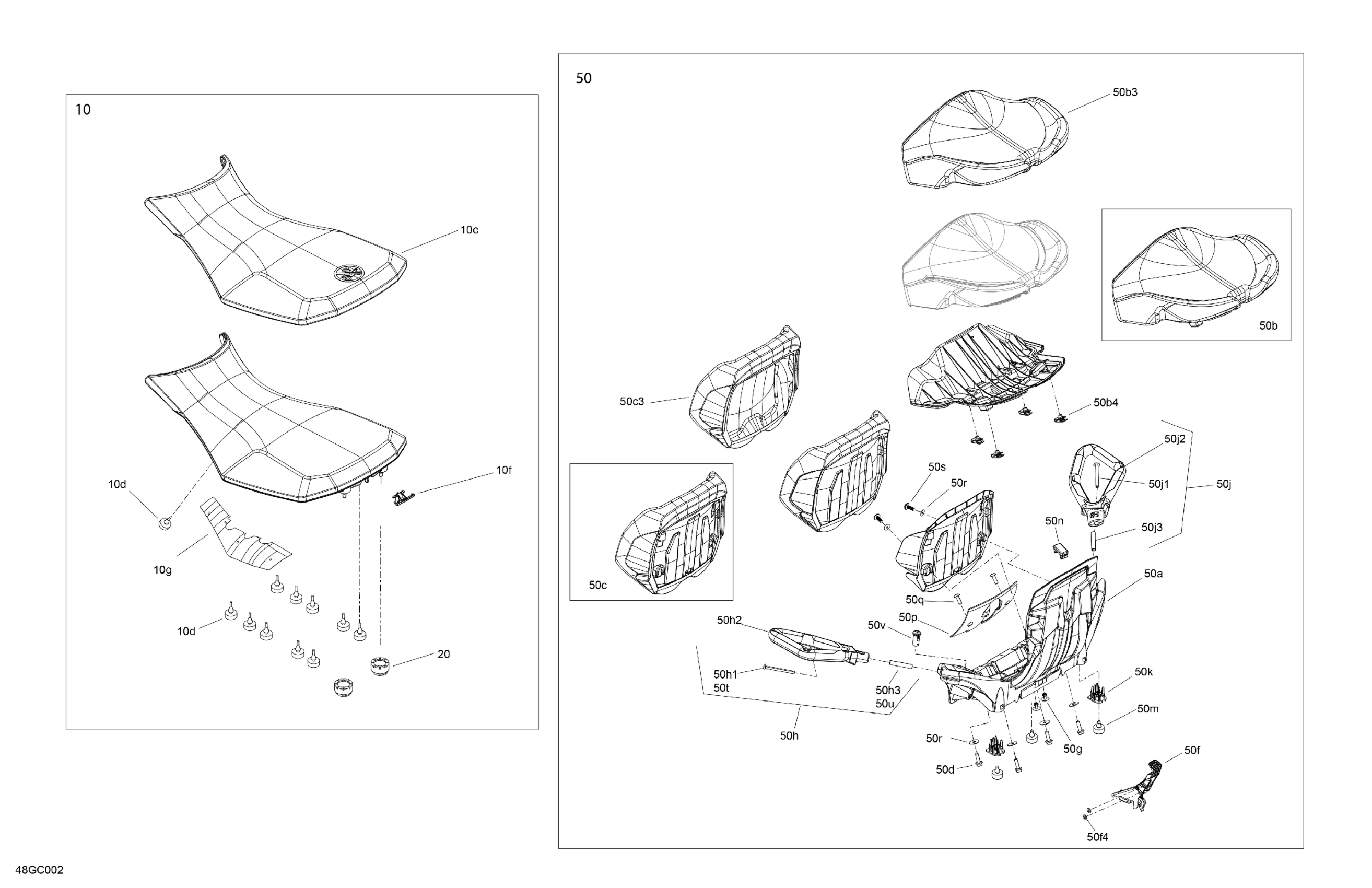

Can-Am Outlander MAX 450 EFI - STD - 2023 Body - Seat Diagram

#

Description
Price

10

Seat Ass'y | Includes 1 to 4

708002491

$349.99

10c

Black, Seat Cover

708000724

$77.49

10d

Rubber Stopper

708000759

$4.19

10f

Latch

708000909

$6.29

10g

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

20

Seat Stopper

708003609

$10.49

50

Passenger Seat Ass'y | Includes 50 to 50v

708003481

$66.99

50a

Seat Base

708002574

$249.99

50b

Rear Seat | MAX Model

708002088

$229.99

50b3

Black, Seat Cover

708001290

$150.49

50b4

Panel Nut M6 X 1.0

250100198

$2.11

50c

Back Rest

708002085

$519.99

50c3

Back Rest Cover

708001841

$123.49

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50f

Latch

708001532

$67.99

50f4

Flat Washer M5

234051410

$0.53

50g

Pop Rivet 3/16”

293150108

$1.19

50h

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50h1

Torx Truss M8 X 90

250000806

$7.51

50h2

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50h3

Sleeve

705006129

$14.99

50j

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50j1

Torx Truss M8 X 90

250000806

$7.51

50j2

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50j3

Sleeve

705006129

$14.99

50k

Seat Support

708001483

$2.99

50m

Rubber Stopper

708000758

$12.99

50n

Insert

708001511

$4.29

50p

Cap

708001512

$13.99

50q

Torx Truss PT K40 x 12

250001131

$2.11

50r

Flat Washer

224060201

$1.26

50s

Oval Head Torx Screw K60 X 16

250000546

$2.11

50t

Torx Truss M8 X 90

250000806

$7.51

50u

Sleeve

705009248

$14.99

50v

Pilot Lamp Cap

710003910

$4.29
