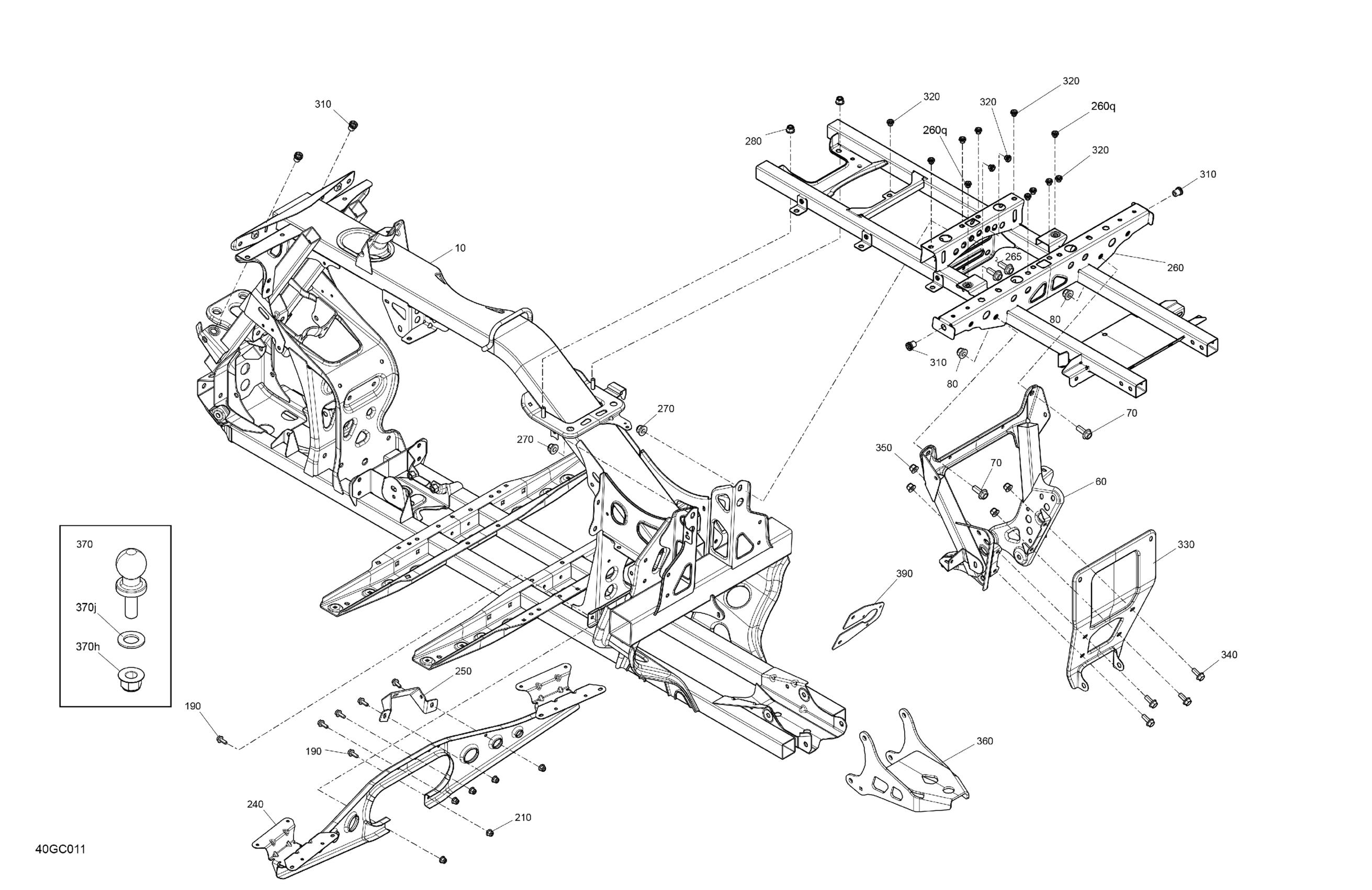

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2023 Frame - System Diagram

Description

Price

Chassis

705210816

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$2.19

Hex. Flange Elastic Nut M10

233201436

$2.19

190

Hex. Flange Screw M6 X 16

207661644

$1.49

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

240

Footrest Support

705210817

$76.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210820

$124.99

260q

Insert Half Hex Body M6 x 1.0

250100199

$3.29

265

Hex. Flange Screw M10 X 25

207602546

$2.19

270

Hex. Flange Elastic Nut M10

233201436

$2.19

280

Hex. Flange Elastic Nut M8

233281414

$1.49

310

Insert Half Hex Body M8 x 1.25

293450307

$2.69

320

Insert Half Hex Body M6 x 1.0

250100199

$3.29

330

Rear Support

705203541

$43.99

340

Hex. Flange Screw M8 X 20

207682046

$1.99

350

Hex. Elastic Flange Nut M8

233281416

$1.49

360

Black, Trailer Hitch

705206592

$55.49

370

Ball Coupling 50 MM Ass'y | Includes 370 to 370d

705208129

$99.97

370b

Elastic Flange Nut M20

250100104

$12.49

370d

Flat Washer

250200163

$3.30

390

Trailer connector Support

705206416

$6.49
