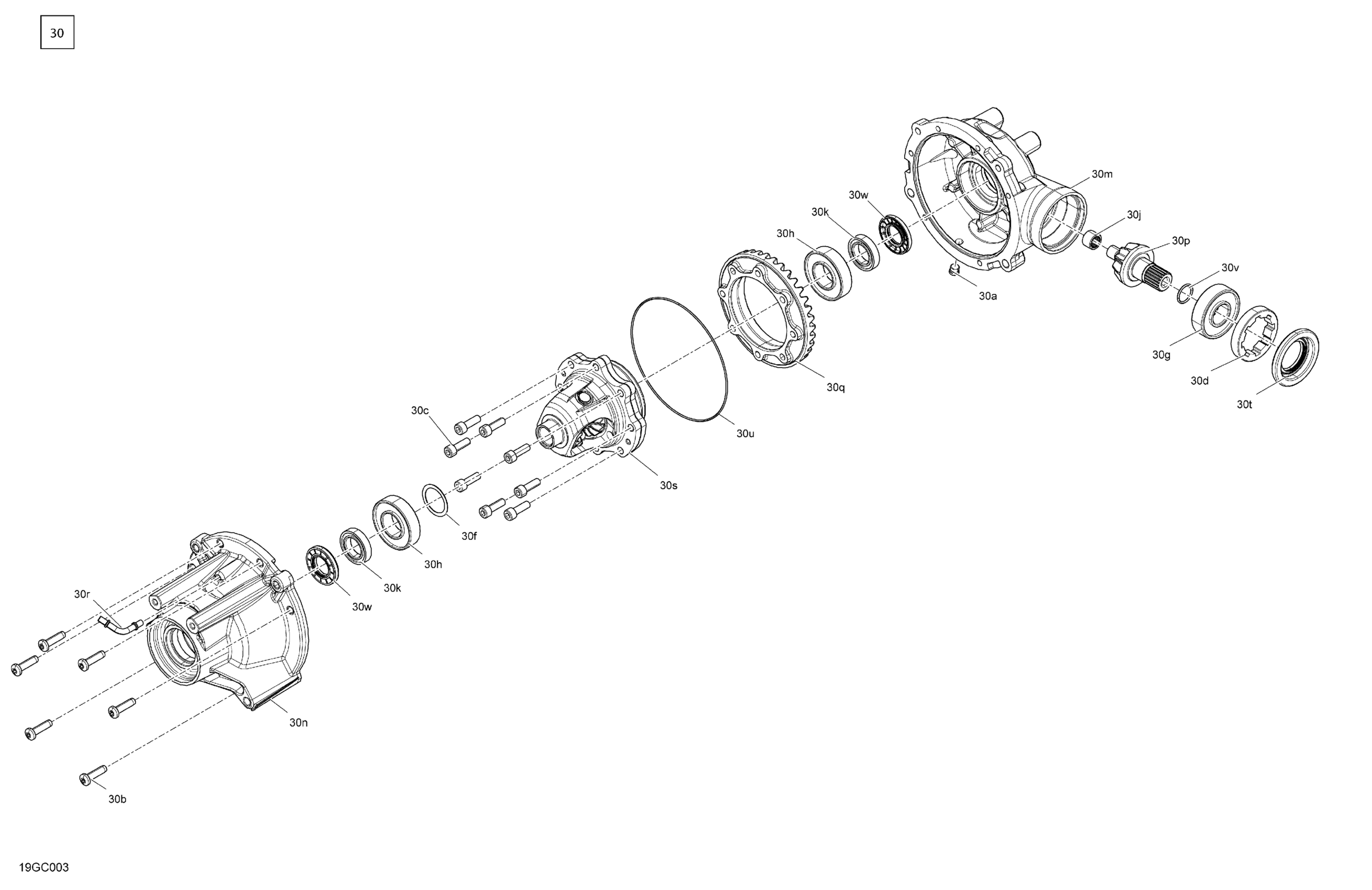

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2023 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential | Includes 30 to 30y

705402020

$929.99

30a

Drain Plug | After May 30, 2014

705501885

$14.22

30b

Screw | 4X4

705401601

$10.49

30c

Screw | After May 30, 2014

705401602

$6.19

30d

Nut | 4X4

705401603

$35.99

30f

Shim | 4X4

705401604

$57.99

30g

Ball Bearing | After May 30, 2014

705401605

$31.99

30h

Ball Bearing | 4X4

705401606

$51.99

30j

Ball Bearing | After May 30, 2014

705402848

$49.99

30k

Ball Bearing | After May 30, 2014

705401608

$51.99

30m

Front Pinion Cover | After May 30, 2014

705401792

$149.99

30n

Front Cover | After May 30, 2014

705401610

$149.99

30p

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

30q

Gear 36 Teeth

705402842

$409.99

30r

Vent Valve | After May 30, 2014

705401613

$16.49

30s

Differential

705402128

$977.49

30t

Oil Seal | After May 30, 2014

705401615

$19.49

30u

Seal | After May 30, 2014

705401616

$14.28

30v

O'Ring | After May 30, 2014

705401617

$7.20

30w

Gasket | 4X4

705401618

$18.49

30x

Shim

705401769

$7.69

30y

Shim

705401770

$7.09
