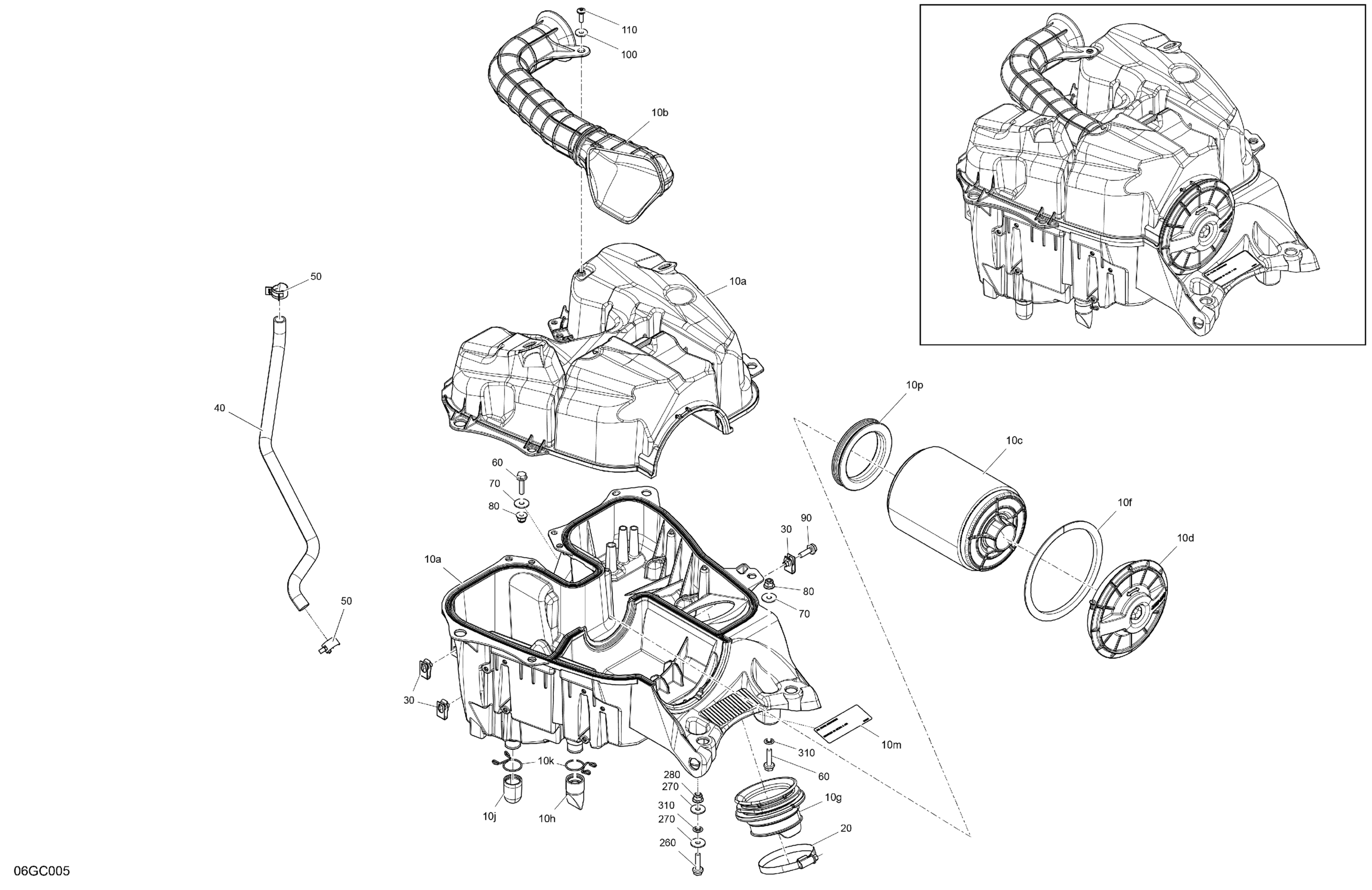

Can-Am Outlander 570 EFI 4X4 - STD - (4GPB-4GPC) 2023 Engine - Air Intake Diagram

Description

Price

10a

Air Box

707800724

$89.99

10b

Air Intake Hose

707800375

$55.99

10c

Air Filter

707800371

$40.99

10d

Intake Silencer Cap Ass'y

715002174

$17.49

10f

Gasket

293300175

$13.99

10g

Intake Adaptor

707800723

$20.99

10h

Drain Tube

707800404

$2.89

10j

Drain Tube

707800080

$8.29

10k

Spring Clamp

707801043

$13.99

10m

Air Filter Maintenance Decal

707800373

Unavailable

10p

Air Filter Adaptor

707800470

$19.99

Norma Clamp

293650091

$11.12

Panel Nut M6 X 1.0

250100198

$2.11

Vent Hose

707800453

$25.99

Norma Clamp

293650110

$4.54

Hex. Flange Screw M6 X 25

207662544

$0.64

Flat Washer

250200082

$0.42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

100

Washer | DS 650 X

391301600

$0.48

110

Torx Screw K50 X 16

250000720

$1.69

260
