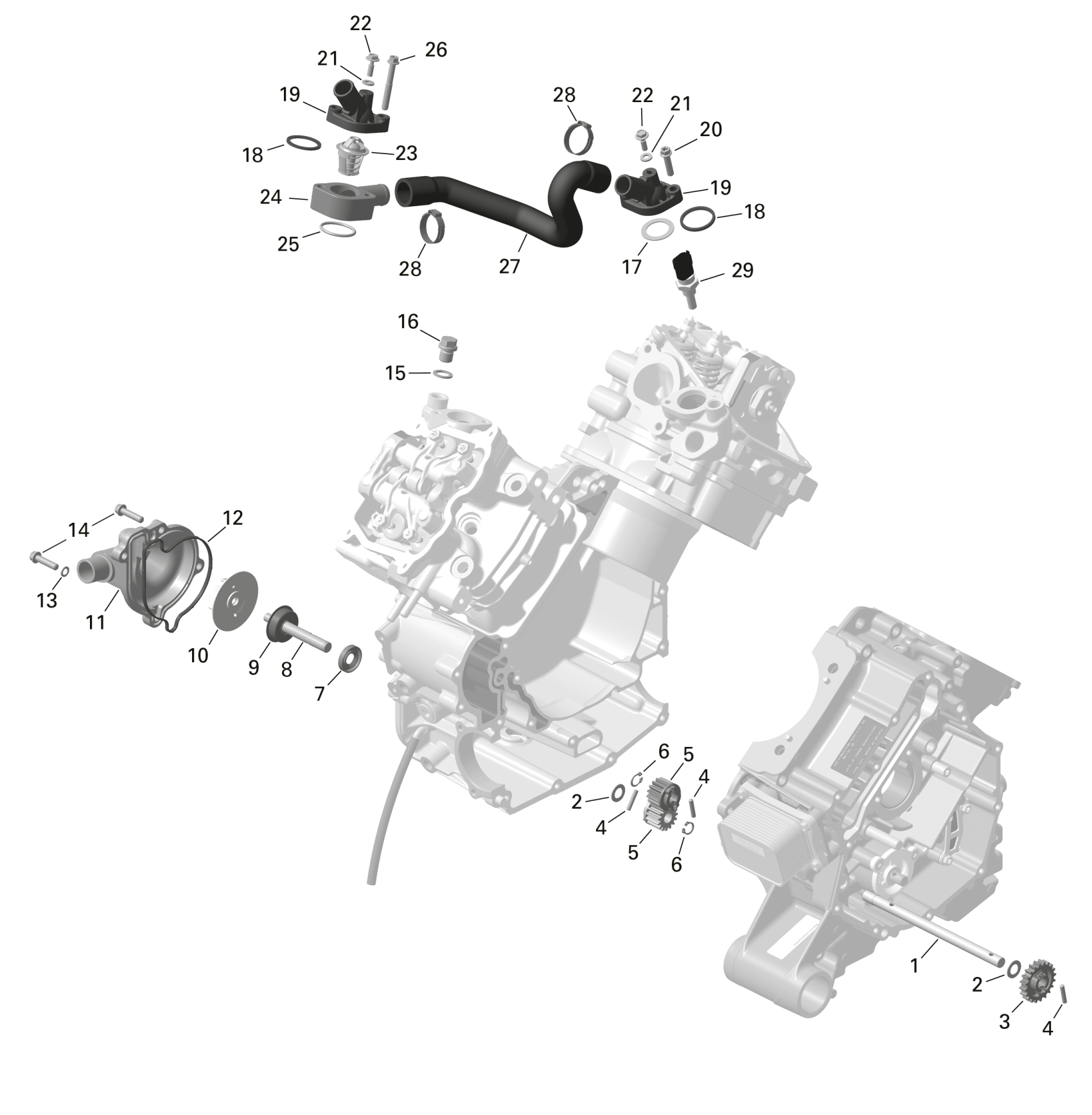

Can-Am Outlander 570 EFI - XU - (4JPB) - CE, 2023 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$36.99

2

Thrust Washer

420827590

$4.01

3

Water Pump Gear

420434330

$11.63

4

Needle Pin

420232420

$4.01

5

Pump Gear, 15 Teeth

420234627

$11.63

6

Circlip

504152282

$3.17

7

Not Available As Spare Parts

XXX

Unavailable

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$72.99

9

Rotary Seal

420650371

$43.49

10

Water Impeller

420822750

$19.49

11

Kit Water Pump Housing

703501124

$53.99

12

Gasket

420651190

$8.57

13

Seal Washer

420230415

$1.79

14

Torx Flange Screw M6 X 25

420641238

$3.27

15

Copper Washer

420250640

$0.98

16

Plug screw

420841924

$14.28

17

Spacer Ass'y | Includes 40 to 41

420927837

$7.41

18

Thermostat Gasket

420650300

$8.57

19

Thermostat Cover

420222696

$3.17

20

Torx Flange Screw M6 X 25

420641238

$3.27

21

Gasket Ring

420650255

$4.12

22

Screw M5 X 16

420441621

$3.17

23

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

24

Connection Socket

420222894

$48.49

25

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

26

Torx Flange Screw M6 X 45

420440324

$0.98

27

Water Tube

420822353

$21.99

28

Clamp 24.8-28.0MM

420251579

$9.27

29

Temperature Sensor

278002895

$39.99
