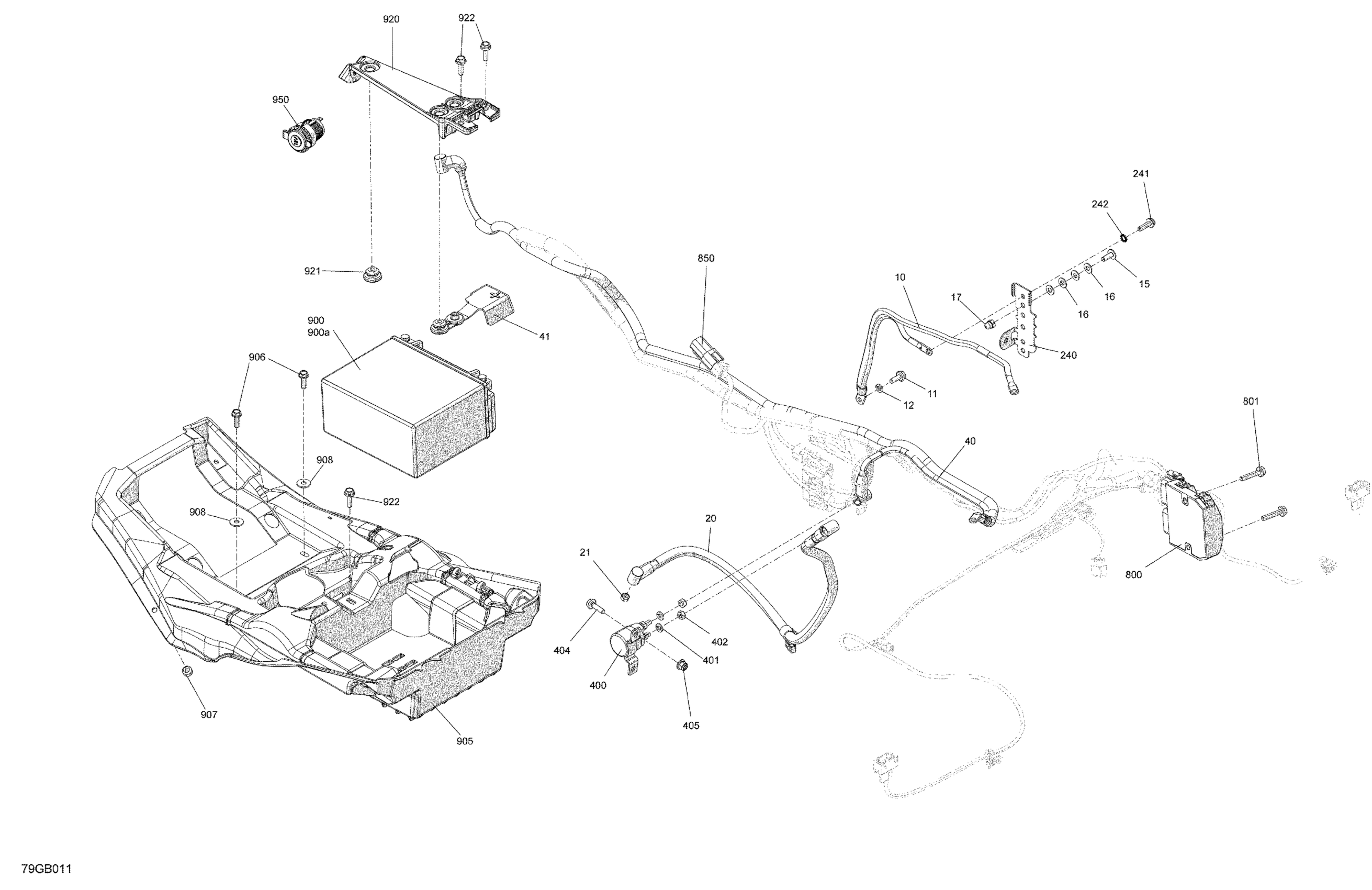

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2022 Electric - Rear Section Diagram

Description

Price

Ground Cable

710004382

$17.88

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Lock Washer Helical M6

234161601

$1.06

Torx Head Screw M6 X 16

250000717

$2.00

Flat Washer

224061121

$0.51

Domed Nut M6

232361493

$2.03

Positive Cable

710004377

$24.60

Elastic Stop Nut M6

232561434

$1.78

Cable

710007437

$30.57

Battery Cable Cap

710006729

$6.72

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561434

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

850

Housing

710003006

$8.31

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$144.75

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

910

Push Nut

732610072

$1.97

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79
